AE-S70 Series UV VIS Spectrophotometer
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater,Shaker Incubator,Melting Point Device, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, etc.
Welcome to inquire us!
UV VIS Spectrophotometer
Key Features:
* Single beam spectrophotometer with highly stable optics.
* Extremely versatile with full functionality
UV range: 190 to 1100nm, VIS range:320-1100nm.
* Spectral bandwidth 1.8 & 2nm.
* 6 inches & compact LCD display. Integrated user interface.
* USB port for data storage.
* ISO/CE Certificate passed.
* A & E Lab PC software available.
* Extensive range of accessories available.
Application:
AE-S70 Series spectrophotometers have the most attractive cost performance. It is widely used in
colleges and enterprises for general quantitative analysis and experiments.
* The instrument use a lead screw structure so that the instrument wavelength accuracy and wavelength
resolution can be greatly improved.
* 8mm thick optical base: the instrument use a rigid die-cost aluminum base as its optical mount to
ensure instrument stability and reliability.
* It can set up various standard curves according to customer/s solutions and find the concentration of
unknown solutions.
Ordering Information:
Order Code | Description |
AE-S70-1U | Large screen, single beam, 4 cell holder, 190-1100nm, Bandwith: 1.8nm. |
AE-S70-1UPC | Large screen, single beam, 4 cell holder, 190-1100nm, Bandwith: 1.8nm., with PC software. |
AE-S70-2U | Compact screen, single beam, 4 cell holder, 190-1100nm, Bandwith: 2nm. |
AE-S70-2UPC | Compact screen, single beam, 4 cell holder, 190-1100nm, Bandwith: 2nm, with PC software. |
AE-S70 Series Visible Spectrophotometer | |
AE-S70-2V | LCD display, 320-1100nm, bandwith: 2nm, wavelength accuracy: ±0.5nm. |
AE-S70-2VPC | LCD display, 320-1100nm, bandwith: 2nm, wavelength accuracy: ±0.5nm, with PC software. |
Technical Specifications:
Wavelength | Photometric | |||
Wavelength Range | UV Range: 190-1100nm Visible Range: 320-1100nm | Photometric Accuracy | ±0.3%T | |
Wavelength Accuracy | ±0.5nm | Photometric Repeatability | 0.2%T | |
Wavelength Repeatability | ±0.3nm/±0.2nm | Photometric Display Range | 0-200%T, -0.3-3.0A, 0-9999C | |
Band Width | 1.8nm/2nm | Stability | 0.002A/h @ 500nm | |
Others | Baseline Flatness | ±0.002A/±0.0015A | ||
Data Output Port | USB | Noise | ±0.001A | |
Printer Port | Parallel Port | Stray Light | ≤0.05%T @220nm, 360nm | |
Optical System | Single Beam (1200 lines/mm grating) | |||
Display | LCD (320X240/128X64 Dots ) | |||
Detector | Silicon Photodiode | |||
Lamps | Deuterium & Tungsten Halogen Lamp | |||
Power Supply | AC 220V/50Hz, 110V/60Hz. | |||
Packing Size & Weight | 680X590X420mm & 23kg | |||

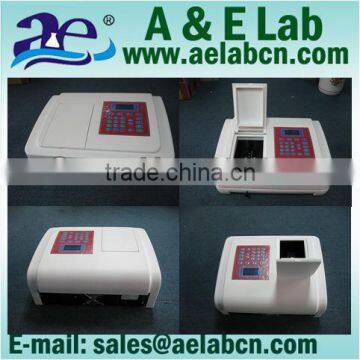

Product Picture:
