US$ 200 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
A & E Lab
Model Number:
VIS-722N
Size:
510*490*280mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shanghai Beijing Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name A & E Lab
Model Number VIS-722N
Size 510*490*280mm
Weight 6.5kg
Focal Length 340~1000nm
Wavelength Range 340~1000nm
Measurement Range 340~1000nm

A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater,Shaker Incubator,Melting Point Device, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, etc.
Welcome to inquire us!

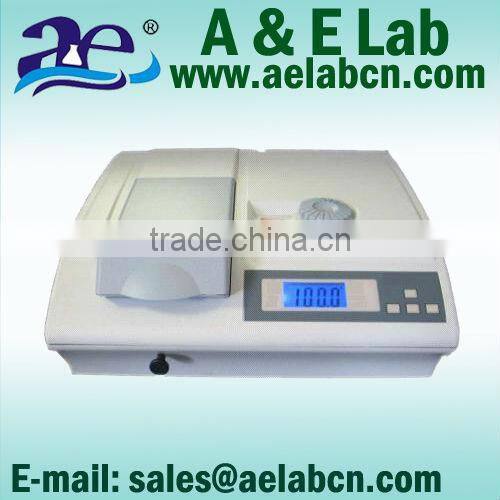

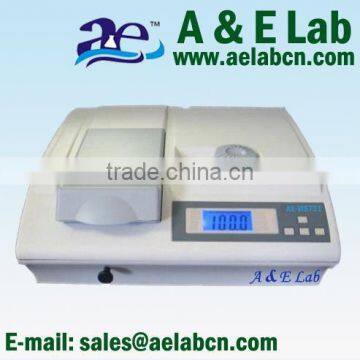

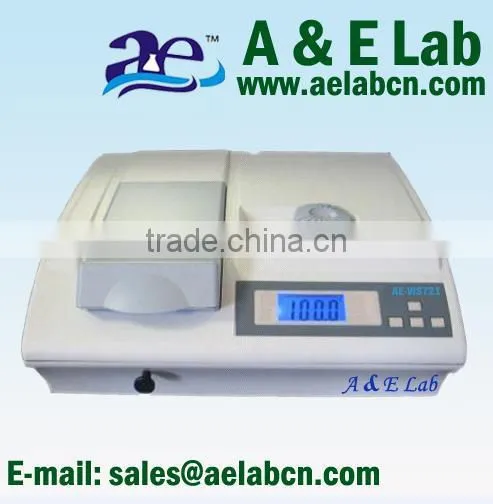

722 spectrophotometer



AE-VIS721/722 are basic laboratory instruments which based on the principle of

spectrophotometery. It can be measured the transmittance, absorbency,

concentration factor & concentration direct reading of samples within 340-1000nm

wavelength ranges. Meanwhile, it can be easily connected printer or PC software.

It can be widely applied to clinical sanitation, biochemistry, environment protection,

food inspection, petrochemical, tertiary institutions, basic teaching experiments, etc.



Characteristics:

* Adoption of new single-chip microcomputer system, completely functions.

* 4 Digital LCD display, widely measurement range, higher accuracy.

* Thin-film-style keyboard, dust-proof & waterproof skin and easy to clean.

* To be avoid energy plummeting after reflector was burnt, it has adopt lens to

   gathering light.

* With a professional lamb holder so that can not be replaced the optical circuit

   of halogen tungsten lamb.

* Automatic calibration 0%T, 100%T & absorbency 0A.



Technical Specifications:



Model

AE-VIS721

AE-VIS722N

Optical System

Single beam 1200 diffraction grating

Wavelength Range

340nm-1000nm

Wavelength Accuracy

±1nm

Wavelength Repeatability

0.5nm

Spectrum Bandwidth

4nm

Photometric Range

0-100%T, 0-3.000A

Transmittance Accuracy

±0.5%T

Transmittance Repeatability

0.2%T

Reading Range

0-9999

Stray Light

≤0.2%T (360nm, JB400)

Light Source

Halogen Tungsten Lamp (20W/12V)

Power Supply

AC90-264V

Output

  --- ---

RS232 interface.

Packing Size & Weight

510×490×280mm & 6.5kg







Packing List:

                         VIS-721 Packing List

Description

Quantity

Spectrophotometer

1

Power Cord

1

Glass Cuvettes

4pcs/set

Operation Manual

1







 722 spectrophotometer722 spectrophotometer722 spectrophotometer

722 spectrophotometer722 spectrophotometer722 spectrophotometer722 spectrophotometer722 spectrophotometer
