New Design uv Vis Double Beam Spectrophotometer With CE Certificate
A & E Lab.
Main Products: Atomic Absorption Spectrometer (AAS), UV Vis Spectrophotometer, Visible Spectrophotometer, Flame Photometer, Whiteness Meter, Turbidity Meter, Colorimeter, Gloss Meter, Tintometer, Automatic Polarimeter, Auto Melting Point Apparatus, Automatic Refractometer, PH/DDS/TDS Meter, Incubator, shaker, Hotplate, Mixer, PCR, Oven, etc.
UV Vis Spectrophotometer
(Micro-volume)
Introduction:

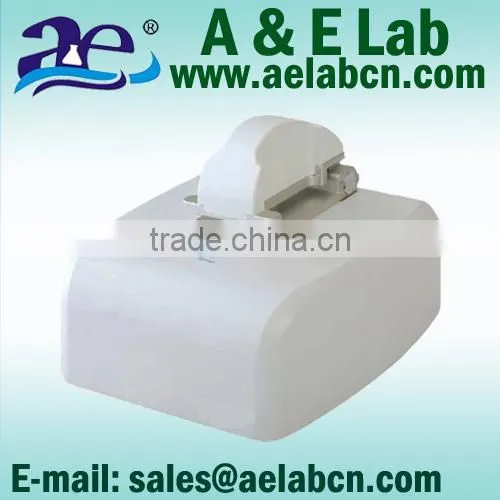

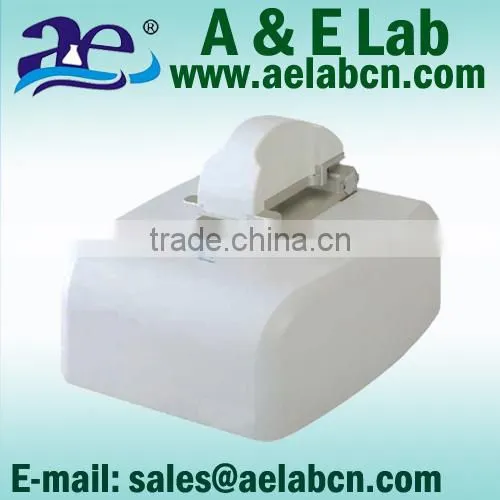

AE-BIO500 is a Micro-volume UV Vis Spectrophotometer designed for nucleic acid measurements.
It can accurately measure nucleic acid samples, and is no need to dilute high-concentration samples. Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, AE-BIO500 can automatically complete the measurement within 5 seconds.
Features:
²Direct, easy measurements in less than 5 seconds: just pipette & wipe.
²Full spectral output.
²Measures DNA, RNA (A260) and Protein (A280), concentrations and sample purity (260/280ratio).
²Large concentration range without dilutions.
²User-friendly software that includes Custom Methods and data export capabilities.
²Low-cost operation--no plates or other consumables
Technical Specifications:
Model | AE-BIO500 |
Order Code | AE-BIO500-A |
Wavelength Range | 200~850 nm |
Minimum Sample Size | 0.5~2.0ul |
Path Length | 0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
Light Source | Xenon flash lamp |
Detector Type | 3864-element linear silicon CCD array |
Wavelength Accuracy | 1nm |
Spectral Resolution | ≤ 3 nm (FWHM at Hg 546 nm) |
Absorbance Precision | 0.003 Abs |
Absorbance Accuracy | 1% (at 0.76 at 350 nm) |
Absorbance Range | 0.02 - 75 (10 mm equivalent) |
Measurement Time | < 5s |
Dimensions (W x D x H)mm | 200 x 262 x 154 |
Weight | 2.5kg |
Sample Pedestal Material | Aluminum alloy and Quartz fiber |
Operating Voltage | 12V DC |
Operating Power Consumption | 12 - 18 W |
Standby Power Consumption | 5W |
Software Compatibility | Windows 7, Windows XP |
