Home > Products > Optical Spectrum Instruments > NANO-100 Bio Spectrophotometer

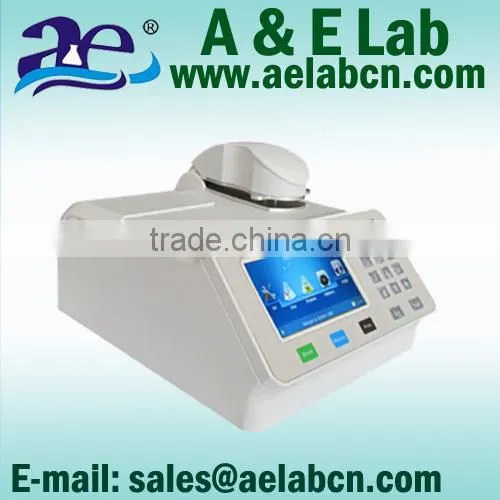

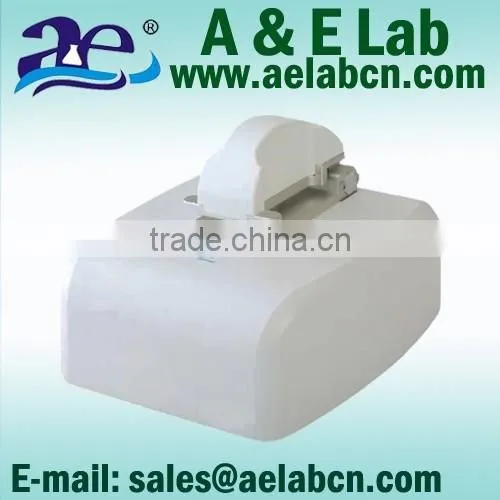

NANO-100 Bio Spectrophotometer
- Guangzhou/Shanghai China
- Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | A&E LAB | |
Model Number | AE-NANO100 | Size | 200 x 262 x 154 mm | |
Weight | 2.5kg | Focal Length | 200~850 nm | |
Wavelength Range | 1nm | Measurement Range | 200~850 nm |
Product Description
A & E Lab.
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!
The information of our instruments:
Warranty : 1 year / 3 years / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment. (AAS: Within one month)
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.
Cooperation type: Distribute / Neutral packing / OEM / ODM.
Introduction:
The AE-NANO100 is a spectrophotometer that measures 0.5-2ul samples with high accuracy and reproducibility. Sample pedestals apply surface tension to make the sample column, so that hold samples in the pedestal. During measurement, the light goes through the sample column, and then passes to CCD detector by fiber optic cable. In addition, the AE-NANO100 has the capability to measure highly concentrated samples without dilution (100X higher concentration than the samples measured by a standard cuvette).
Features:
² Direct, easy measurements in less than 5 seconds: just pipette & wipe.
² Full spectral output.
² Measures DNA, RNA (A260) and Protein (A280), concentrations and sample purity ratio (260/280).
² Large concentration range without dilutions.
² User-friendly software that includes Custom Methods and data export capabilities.
² Low-cost operation--no plates or other consumables.
Technical Specifications:
Model | AE-NANO100 |
Wavelength Range | 200~850 nm |
Minimum Sample Size | 0.5~2.0ul |
Path Length | 0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
Light Source | Xenon flash lamp |
Detector Type | 3864-element linear silicon CCD array |
Wavelength Accuracy | 1nm |
Spectral Resolution | ≤ 3 nm (FWHM at Hg 253.7 nm) |
Absorbance Precision | 0.003 Abs |
Absorbance Accuracy | 1% (at 0.76 at 350 nm) |
Absorbance Range | 0.02 - 120 (10 mm equivalent) |
Detection Limit | 8ng/ul dsDNA |
Max. detection concentration | 6,000ng/ul(dsDNA) |
Detection time | < 5s |
Dimensions (W x D x H)mm | 200 x 262 x 154 |
Weight | 2.5kg |
Sample Pedestal Material | Aluminum alloy and Quartz fiber |
Power | 5W |
Software Compatibility | Windows XP, Vista(32bit), Win7(32bit) |
NANO-100 bio spectrophotometer:
