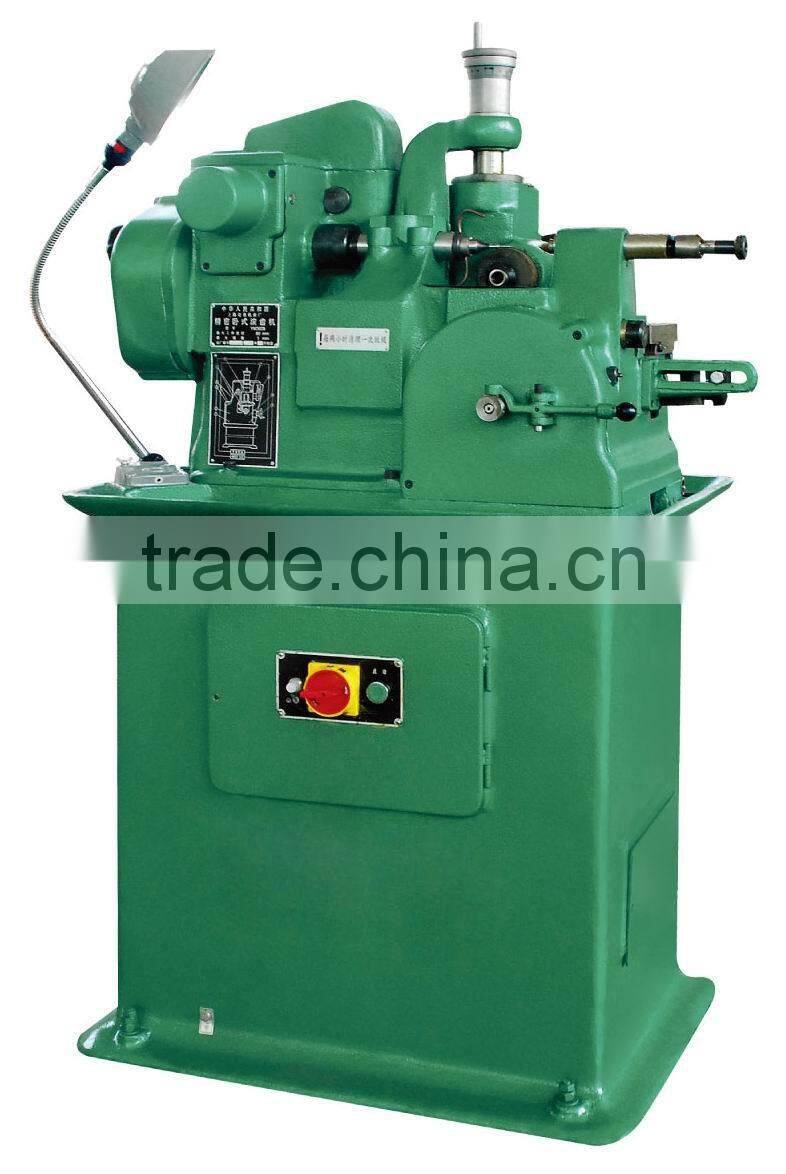

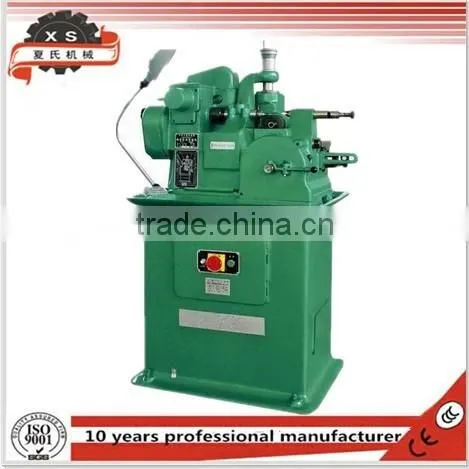

Professional Factory Small Gear Hobbing Machine Price Y3608
- 30 Set / Sets per Month
- Shenzhen
- T/T
- Band Saw Blades
- Band Saw Machine
- G800 6-axis CNC Gear Hobbing Machine CNC Machine Gear Cutting Gear Cutting CNC Machine
- New G800 CNC Gear Hub Machine with Automation Loading/unloading Solution 8-10M Hobbing Machine
- China YQ31250E gear hobbing machine OME
- Y31160 gear hobbing machine for sale from dalian zhuanghe
Product Details
Condition: | New | Type: | Gear Hobbing Machine | CNC or Not: | Normal |
Place of Origin: | Guangxi, China | Model Number: | Y3608 | Voltage: | 220V/380V |
Power(W): | 0.75KW | Dimension(L*W*H): | 990x790x1730mm | Weight: | 650kg |
Certification: | ISO9001CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Features
Y3608 Gear Hobbing Machine is mainly used to generate spur and worm gears with max. diameter of 80mm and max module of 1.5mm different accuracy grades are achievable to satisfy users specific needs. It can also machine helicai gears with I 18 helix angel range. As a semi auto gear hobbing machine. The advantages in application are obvious: simple operation, easy adjusting, reliable performance and accurate finish. After workpiece loading and machine start, the feeding camlbrings the tool carriage to the working position and cutting begins. When the work is done, the hobber will automatically go out to contact with the work-pieced. This function allows one operator to work on several machines simultaneously, wide applications of this machine are found in the manufacture of gears for instruments, meters, electronic and light industries, for spur gears, the machining accuracy achieves grade 6 or 7 as per the normal standard Bg2363-90.
Parameter
Model | Y3608 | |
Max. dia of workpiece (cyl. Spur helical & worm gears) | 80mm | |
Max. width of workpiece (cyl. Spur gears) | 50mm | |
Max. cutting module | 1 (1.5)mm | |
No. of teeth for cutting | 6-390 | |
Spindle speed range | 130-1200r/min 6 steps | |
Max. swing of hobber | +18 | |
Max. motor power | 0.75 | |
Overall dimension (LxWxH) | 900x650x1500 | |
Packing dimension (LxWxH) | 990x790x1730 | |
Machine weight | 500/650 | |
Accuracy | For cyl. Spur gear | 6 or 7 |
| Finish | Ra 1.6 or 2.5 |
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
