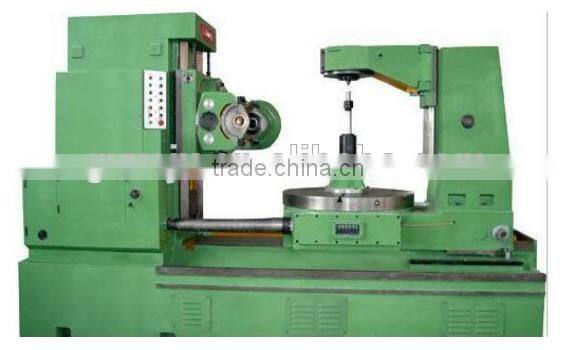

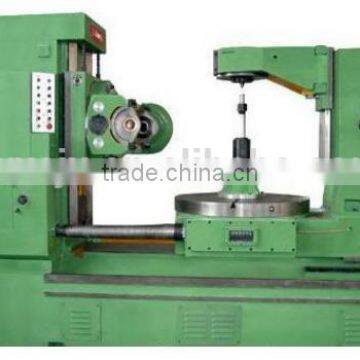

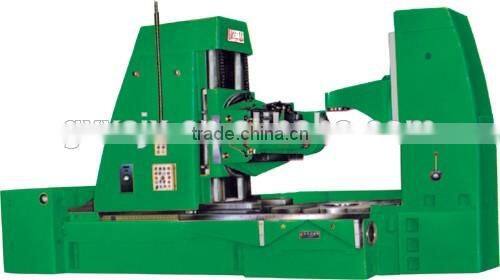

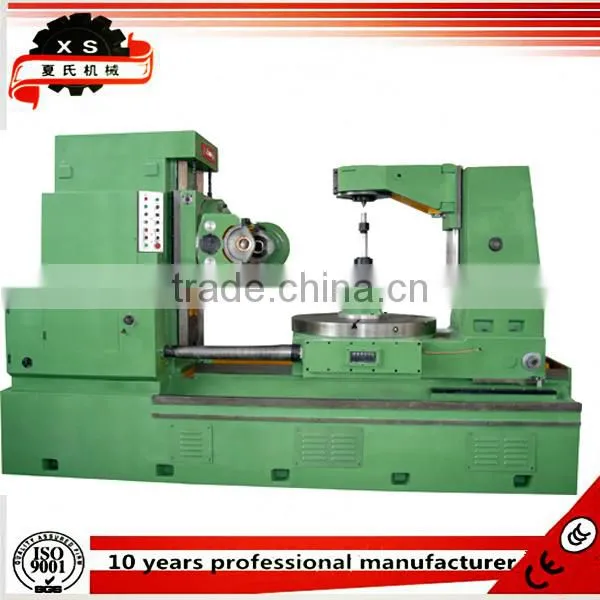

Large Process Capacity Gear Hobbing Machine Factory Y31200
- Shenzhen
- T/T
You May Like
-

                        Gear Hobbing Machine for Cylindrical Spur and Helical Gears, Worm Gears and Sprocket Y31630K
-

                        Gear Hobbing Machine for Large Work Pieces D800mm From China Gear Machine Manufacturer
-

                        Mini CNC Gear Shapping Machine Small Gear Shaper Machie Style YK5115
-

                        TB-30NC Auto Feeding Thread Rolling Machine CNC Bolt Thread Rolling Machine
-

                        Best Quality CNC Threading Rolling Machine for Rebar XS-30NC
-

                        CNC Gear Machine Gear Shaping Machine Y5150K
Product Details
| Condition | New | Type | Gear Hobbing Machine | |
| CNC or Not | CNC | Place of Origin | Guangxi, China | |
| Brand Name | XIASHI | Model Number | Y31200 | |
| Voltage | 380V50HZ | Power(W) | 22kw | |
| Dimension(L*W*H) | 7750X2850X4550mm | Weight | 32500kg | |
| Certification | ISO9001 CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.The machine adopt SIEMENS CNC system and the AC servo motors,can achieve the two-axis.
2.The machine is suitable for large and single production of cylindrical spur and helical gears,
worm gears,sprocket,drum Gear and Spline shaft.
3. The machine is characterized by good rigidity,high working accuracy,easy in operation and
maintain.
4. The machine can be operated not only with forward and backward cutting,but also with
axial or radial feed
| Item | Y31200 |
| Max Work Piece Dia | 2000mm |
| Max Module | 24mm |
| Max Width of Teeth | 1100mm |
| Max Hob Dia/Length | 325/360mm |
| Dia of Work Table | 1650mm |
| Speedle Speed/Steps | 10-92rpm |
| Max Hob Shift Axial | 140mm |
| Main Motor | 22KW/1500R[, |
| Taper of Hob Arbor Fitting | Morse 6 |
| Distance Between Hob Axis And Worktable | 680-1830 |
| Center Distance Between Hob And Work Table | 100-1200mm |
| Distance Between Tailstock End Face and Worktable Surface.
 | 985-1985mm |
| Worktable Bore Diameter | 260mm |
| Max Hob Swiveling Angle | ±45° |
| Dia of Hob Arbors Dia | 32,40,50,60,80 |
| Load Capacity | 20T |
| Overall Dimension (LXWXHmm) | 7750X2850X4550 |
| GW/NW(kgs) | 32500 |
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
