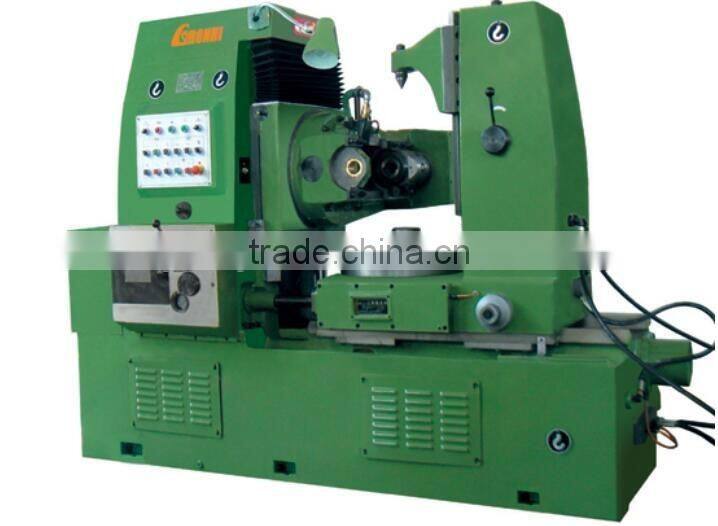

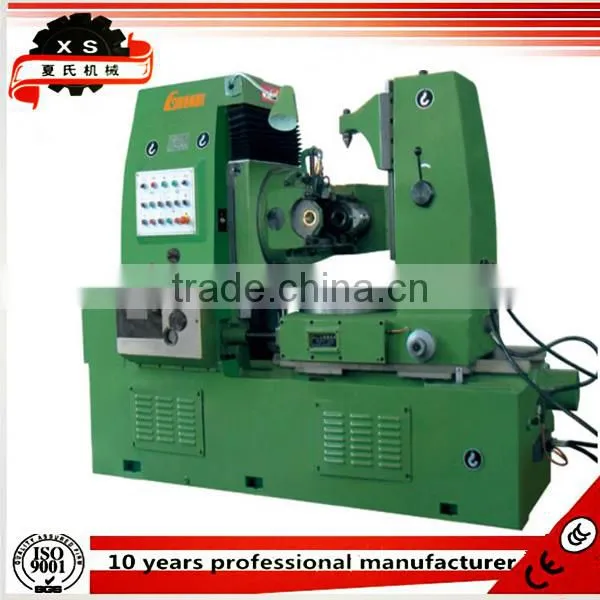

Help Center500mm Manual Gear Hobbing Machine Price for Sale Y3150K
Related Products
-
400mm External Gear Shaping Machine for Sale YKG5140 Y5150K YKS5122US$ 1,000 - 10,000MOQ: 1 Set -
D220mm Dia CNC Auotmatic Gear Shaping Machine for Cylinder Gear, Helical Gear,special Annex YKG5122-3US$ 1,000 - 10,000MOQ: 1 Set
-
Normal Large Heavy Duty Gear Hobbing Machcine for Sale Dia 1300/1600 Y31160k/Y31160AUS$ 5,000 - 50,000MOQ: 1 Set
-
Large Process Capacity Gear Hobbing Machine Factory Y31200US$ 5,000 - 50,000MOQ: 1 Set
-
Gear Hobbing Machine for Cylindrical Spur and Helical Gears, Worm Gears and Sprocket Y31630KUS$ 5,000 - 50,000MOQ: 1 Set
Features & Applications
The machine is suitable for large batch and single production of cylindrical spur and helical gears
worm gears and sprocket.
It is characterized by good rigidity,high working accuracy,easy in operation and maintain.
The machine can be operated not only with forward and backward cutting,but also with axial o
radial feed.
It can be equipped with Simens CNC system according to user’s request to cut crown and slightly
tapered gears.
Paramters
Model |
Y3150K |
|
Max. work piece dia. (with/without work stay) |
500mm |
|
Max. module (steel/cast iron) |
8mm |
Max. width of teeth |
250mm |
Max. hob dia/length |
160/160mm |
Dia. of worktable |
510mm |
Spindle speed/steps |
40-250rpm/9 |
Max. hob shift axial |
55mm |
Main motor |
5.5kw/1500rmp |
|
Taper of hob arbor fitting |
Morse No. 5 |
Distance from hob axis to worktable surface |
235-535mm |
Center distance between hob and worktable |
20-330mm |
|
Distance between tailstock end face to worktable surface |
380-850mm |
Worktable bore diameter |
80mm |
|
Max. hob swiveling angle |
240° |
Dia. of hob arbors dia. |
22 27 32mm |
Work arbor dia. |
30mm |
Overall size |
2450x1272x1790mm |
G.W./N.W. |
5300/4500kg |
