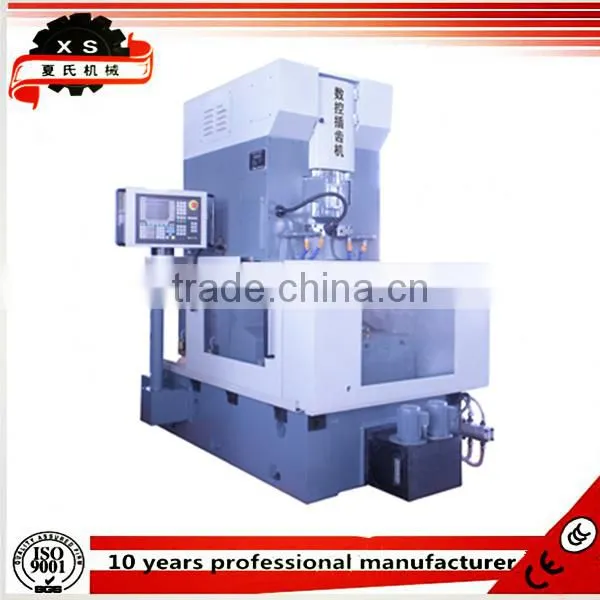

D220mm Dia CNC Auotmatic Gear Shaping Machine for Cylinder Gear, Helical Gear,special Annex YKG5122-3

Name: D220mm Dia CNC Auotmatic Gear Shaping Machine for Cylinder Gear, Helical Gear,special Annex YKG5122-3
Brand: XIASHI
SKU: 140989896
Availability: InStock

D220mm Dia CNC Auotmatic Gear Shaping Machine for Cylinder Gear, Helical Gear,special Annex YKG5122-3 thumbnail-1

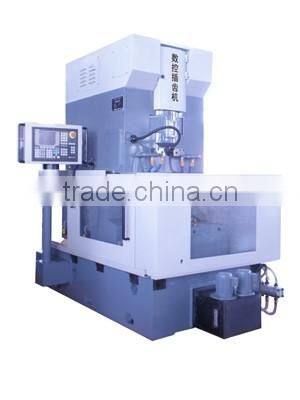

D220mm Dia CNC Auotmatic Gear Shaping Machine for Cylinder Gear, Helical Gear,special Annex YKG5122-3 photo-1

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Gear

Production Capacity:

100%

Contact Supplier Request Quote Chat Now

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Gear

Production Capacity 100%

Place of Origin Yunnan, China

Brand Name XIASHI

Model Number YKG5122-3

Voltage 3-380V 50HZ

Power(W) 11KW

Dimension(L*W*H) 2838x1780x2926mm

Weight 8000kgs

Certification ISO 9001-2008, CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Features

1.Mainly used for large and medium-sized inside and outisde the cylinder gear, helical gear(special annex) machining.

2.Upon special request, the machine can be provided with optional attachments for cutting gear rack, shaft gear, helical gear and little tapered gear.

3. The machine is featured in smooth running, low noise, versatile functions, nice adaptability, easy set up and simple operation.

N.O	Model	Unit	YKS5122-3	YKS5132-3	YKG5140	Y5150K/A
1	N.o of Controlling Axes	/	3	3	3	1/PLC
2	Max. Dia of External Gear	mm	D220	D320	D400	D500
3	Max Dia Internal Gear	mm	D140+d tool	D240+d tool	D260+d tool	D600/500
4	Max Module	mm	6	8	8	8
5	Max Width of Teeth	mm	70	110	82	100
6	Max Stroke Length of Cutter Spindle	mm	80	120	100	110/120
7	Stroke Rate of Cutter Spindle per Min	Str/min	100-1500	100-1000	100-1000	80-320
8	Rotary Feed	mm/str	0-2	0-2	0-2	0-2
9	Radial Feed	mm/min	0-1000	0-1000	0-2500	0-2500
10	Max Radial Travel	mm	330	420	420
11	Cutter Relieving	mm	≥0.35	≥0.35	≥0.5	≥0.5
12	Dia of Cutter Neck	mm	D85	D85	D100	D100
13	Dia of Worktable	mm	D340	D420	D520	D380
14	Bore Dia of Work Table	mm	D100	D120	D150	D80
15	Max Work Table Speed	r/min	8	4	12	6
16	Distance from cutter to worktable center	mm	-70-260	-120-300	-130-290	0/-200-320/300
17	Distance between cutter mounting face to work table surface	mm	190-300	155-315	170-295	50/260-250/380
18	Main Motor	kw	5.5	7.5	11	5.5
19	Drive motor power	kw	24	26	25.1	8.5
20	Machine Size(LXWXH)	mm	3400X3200X2400	4350X3050X2950	2838X1780X2926	2910x2120x2926
21	Weight	kgs	8000	9000	8700	6000
