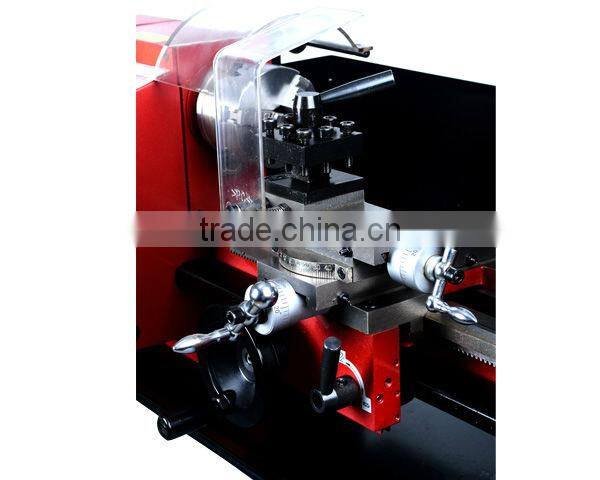

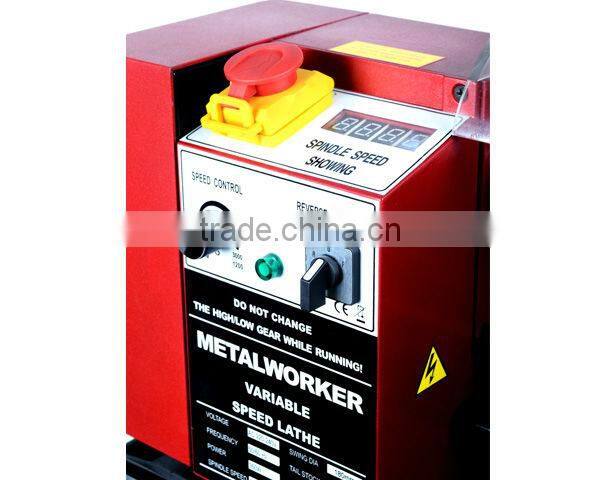

China ML180/350 MINI LATHE Machinery

Swing over bed

180mm

Distance between centers

350mm

Hole through spindle

20mm

Spindle taper

MT3

Tailstock taper

MT2

Cross slide travel

65mm

Compound travel

55mm

Range of thread Metric version

0.4-2.0mm(10 thread pitche)

                             Imperial version

12-52TPI(18 thread pitche)

Motor output power

350W

Spindle speed(variable speed) Low range

100-1200±10% rpm

                                                       High range

100-3000±10% rpm

Overall dimension(L×W×H)

800×300×300mm

Packing size(L×W×H)

870×340×380mm

Weight(Net/Gross)

44/50kg

Model

ML180/350

Item Number

100110

Standard attachment

80mm 3-jaw Chuck

MT2 Center

Changing gear set

Wrench set

Oil can

S/N:10005

Cutter 11 pieces set

DIN 4971R Straight cutter

DIN 4972R Angle cutter

DIN 4973R Bore cutter

DIN 4974R Bore cutter

DIN 4975 Tip cutter

DIN 4976 Wide edge cutter

DIN 4977R Right external turning cutter

DIN 4978R External turning cutter

DIN 4980L Left angle cutter

DIN 4980R Right angle cutter

DIN 4981R Cutter

S/N:10008

Steady rest

S/N:10009

Follow rest

S/N:10007

Face plate 160mm

Bolt size 12mm

S/N:10007A

Clamping kit for face plate

Bolt size 8mm

S/N:10200

Cutting set 8mm(Tin Coated)

DIN 4977R Right external turning cutter

DIN 4980L left cutter

DIN 4980R Right cutter

DIN 4975R Thread cutter

DIN 4981R Cutter

S/N:10200-1

Tip replacement set

S/N:10140

DRCD kit

S/N:10031

Workshop practice series book"The Mini-Lathe"

S/N:10100

100mm 3-jaw chuck

S/N:10100A

100mm 3-jaw chuck whe flange

S/N:10010

80mm 4-jaw chuck

S/N:10029A

100mm 4-jaw chuck with flange

S/N:10013

Spindle center MT#3

S/N:10014

Rolling center MT#2

S/N:10015

Lathe dog

S/N:10147

Rolling tailstock chuck

Dia.13mm+MT#2

S/N:10148

Mill chuck set(metric)

chuck dia. 4,6,8,10,12,14,16mm
