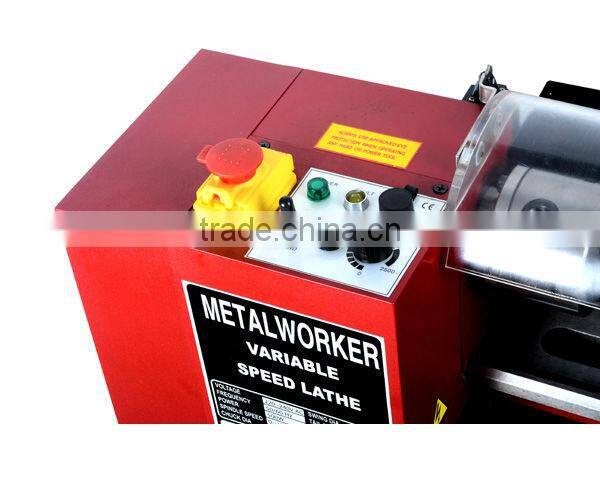

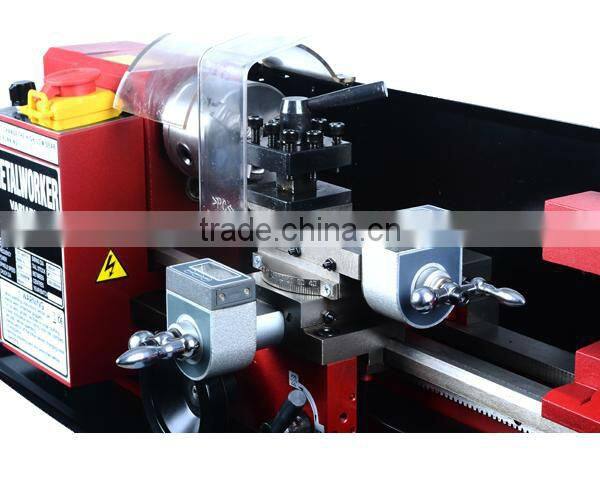

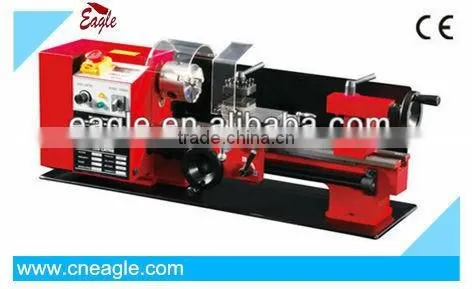

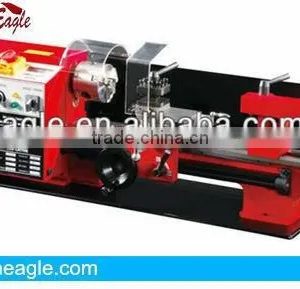

ML180 MINI LATHE for exporting

Specification

Data

Swing over bed

180mm

Distance between centers

200mm

Model 200

300mm

Model 300

Hole through spindle

20mm

Spindle taper

MT3

Tailstock taper

MT2

Cross slide travel

65mm

Compound reavel

55mm

Range of threads

Metric version 0.4-2.0mm(10thread pitches)

Imperial version 15-52mm(18thread pitches)

Motor output power

250W

Spindle speed(variable speed)

Low range 100-1100±10%rpm

High range 100-2500±11%rpm

Overall dimension (L×W×H)

600×300×300mm

Model 200

700×300×300mm

Model 300

Packing size (L×W×H)

690×360×390mm

Model 200

790×360×390mm

Model 300

Weight (Net/Gross)

33/36kg

Model 200

37/40kg

Model 300

Model

ML180-200/300

Item Number

100106 / 100107

Standard attachment

80mm 3-jaw chuck

MT2 center

Change gear set

Wrench set

Oil can

Serial No.

Item Description

S/N:10000

Stand

Overall demension:

800*350*890mm

S/N:10000A

Lux stand

Overall demension:

1000*660*710mm

S/N:10001

Knob & hand wheel

S/N:10002

Metric 9 pcs

30T/35T/40T

40T/45T/50T

60T/80T/80T

S/N:10003

Imperial 13 pcs

30T/35T/40T/40T

45T/45T/50T/55T

57T/60T/65T/80T/80T

S/N:10004

Cutter 5 pieces set

DIN 4971R Straight cutter

DIN 4975 Tip cutter

DIN 4980R Right angle cutter

DIN 4980L Left angle cutter

DIN 4981R Cutter

S/N:10005

Cutter 11 pieces set

DIN 4971R Straight cutter

DIN 4972R Angle cutter

DIN 4973R Bore cutter

DIN 4974R Bore cutter

DIN 4975 Tip cutter

DIN 4976 Wide edge cutter

DIN 4977R Right external turning cutter

DIN 4978R External turning cutter

DIN 4980L Left angle cutter

DIN 4980R Right angle cutter

DIN 4981R Cutter

S/N:10006

Cutter 6 pieces set
