LS10591 BENCH LATHE for sale
Negotiable
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A
You May Like
- Mini CNC Lathe,Mini CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- CNC Horizontal Lathe
- CNC Horizontal Lathe
- CNC Vertical Lathe with C axis for turning, milling, boring, tappering
- CNC Double Column Vertical Lathe for turning only
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Max. Swing Diameter: | 910mm | Place of Origin: | Shandong, China | Brand Name: | EAGLE |
Model Number: | LS10591 BENCH LATHE for sale | Power(W): | 1.1kw | Certification: | CE |
After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
LS10591 BENCH LATHE for sale1).Pass CE,Gost
2).Max. swing over bed 910mm
3).Distance between centers 1500/2000/3000mm

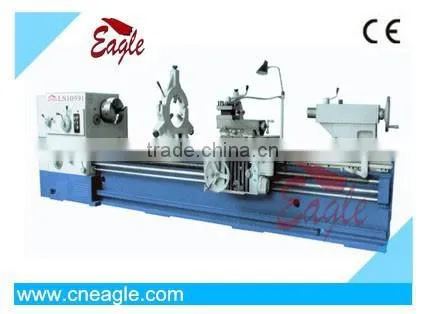

LS10591 BENCH LATHE for sale
Feature:
The surface of the bedways is supersonic frequency.
- The spindle system is high in rigidity and accuracy.
- Rapid feed structure is available on apron.
- Clutch in headstock makes the lathe start smoothly and brake quickly.
specifications:
Model | Unit | LS10591×1500 | LS10591×2000 | LS10591×3000 |
Max. swing over bed | mm | 910 | ||
Max. swing over cross slide | mm | 580 | ||
Max. swing over gap | mm | 1100 | ||
Max. length of workpiece | mm | 1500 | 2000 | 3000 |
Spindle nose | D-11 | |||
Spindle bore | mm | Φ104 | ||
Taper of bore | mm | Φ120mm 1:20 | ||
Number of speeds | 18 | |||
Range of speeds | r.p.m | 5.4-720 | ||
Metric Range/No | 1~240mm/50 | |||
Inch Range/No | 14~1t.p.i/26 | |||
D.P. range/No | 0.5~1 D.P/26 | |||
Module Range/NO. | 0.5-120mm/53 | |||
Number of longitudinal feeds | 64 | |||
Range of longitudinal feeds 1 :1 | mm/r | 0.1~1.52 | ||
Range of longitudinal feeds 16:1 | mm/r | 1.6~24.3 | ||
Number of change gears | mm/r | 0.06~0.912 | ||
Number of cross feeds | 64 | |||
Range of cross feeds | Half of longitudinal feeds | |||
External diameter | mm | 100 | ||
Taper of bore | M.T.No.5 | |||
Max. Travel | mm | 250 | ||
Max. cross displacement of tailstock | mm | 15 | ||
Pitch of longitudinal ball screw | mm | 12 | ||
Max. travel of top slide | mm | 200 | ||
Max. swivel of middle tool post | mm | 90 | ||
Max. travel of cross slide | mm | 550 | ||
Max. size of tool shank (W×H) | mm | 32×32 | ||
Power of main motor | kw | 11 | ||
Rapid feed motor power | kw | 1.1 | ||
Coolant pump power | w | 90 | ||
Overall dimensions (L×W×H) | mm | 3660×1450×1630 | 4155×1450×1630 | 4630×1450×1630 |
Net weight | kg | 4950 | 5250 | 5900 |
Item NO. | 115084 | 115085 | 115086 |
Standard accessories: | Special accessories | ||
Φ325 3-jaw chuck | Centers M.T.No.5 | Φ500 4-jaw chuck | |
Face plate | Wrenches | Steady rest | |
Operation manual | Morse reduction metric Φ120M.T.No.5 | Follow rest |
