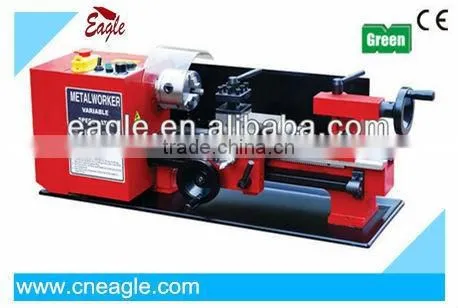

SML180 MINI LATHE for Exporting

Eagle Industries, Ltd.

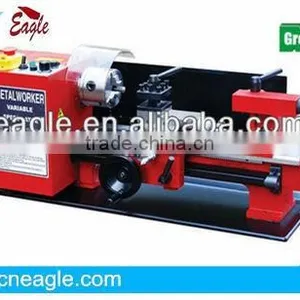

SML180 MINI LATHE for Exporting thumbnail-1
SML180 MINI LATHE for Exporting photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
Used
Type:
Other, MINI LATHE
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition Used
Type Other, MINI LATHE
CNC or Not Normal
Automatic Grade Automatic
Max. Swing Diameter 180mm
Place of Origin Shandong, China
Brand Name EAGLE
Model Number SML180
Voltage 220V
Power(W) 500W
Dimension(L*W*H) 900*420*390mm
Weight 50/55kg

Specifications

SML180 MINI LATHE for exporting
Constructed with cast iron giving great rigidity
Precision Vee bed with ground slide ways

SML180 MINI LATHE for exporting

KEY FEATURE

•Constructed with cast iron giving great rigidity

• Precision Vee bed with ground slide ways

• High torque brushless DC 500W motor

• Fully featured saddle and carriage assembly including powered lead screw

• Supplied with, 80mm 3 jaw chuck,, 2MT centre, change wheel set, wrench set

Specifications



Swing over bed

180 mm

Distance between centers  Model 300

300 mm

                                             Model 350

350 mm

Hole through spindle

20 mm

Cross slide travel

65 mm

Compound travel

55 mm

Spindle taper

MT3

Tailstock taper

MT2

Spindle speed (variable speed)

100-2500 ±10% rpm

Motor output power(Brushless motor)

500 W

Range of threads  Metric version

0.4-2.0 mm (10 thread pitches)

                                Imperial version

12-52 TPI (18 thread pitches)

Overall dimension         Model 300

720x300x290 mm

                                         Model 350

800x290x290 mm

Weight(Net/Gross)       Model 300

44/51 kg

                                         Model 350

50/55 kg

Packing size (LxWxH)  Model 300

780x420x390 mm

                                         Model 350

870x360x380 mm

Model

SML180-300/350mm

Item Number

100108/100109



Standard attachment

80mm 3-jaw chuck

MT2 center

Change gear set

Wrench set

Oil can



Features

Upgraded version fo C2

Brushless Motor

Greater Durability

Higher Efficiency

Mainernance-free

  OPTIONAL ACCESSORIES




Cutter 11 pieces set
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10006Cutter 6 pieces set
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4976R Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
S/N:10004Cutter 5 pieces set
DIN 4971R Straight cutter
DIN 4975 Tip cutter
DIN 4980R Right angle cutter
DIN 4980L Left angle cutter
DIN 4981R Cutter







S/N:10011Quick change cutter rest
S/N:10011-1Tool post
S/N:10011-2Cutter holder
S/N:10016Cutter 2 pieces set
S/N:10016-1Cutter 2 pieces set
S/N:10016-2Cutter 2 pieces set
S/N:10200Cutting set 8mm(Tin Coated)
DIN 4977R Right external turning cutter
DIN 4980L left cutter
DIN 4980R Right cutter
DIN 4975R Thread cutter
DIN 4981R Cutter
S/N:10200-1Tip replacement set
S/N:10145Cut-off tool
S/N:10012Tailstock chuck
Dia.13mm+MT#2
S/N:10030Digital spindle speed readout
S/N:10148Mill chuck set(metric)
chuck dia.4,6,8,10,12,14,16mm
S/N:10130Knurling tool holder
S/N:10136Rocker tool post
S/N:10064Wood toolrest with center
MT#3
S/N:10136Digital spindle speed readout








  SML180 MINI LATHE for exportingSML180 MINI LATHE for exporting
