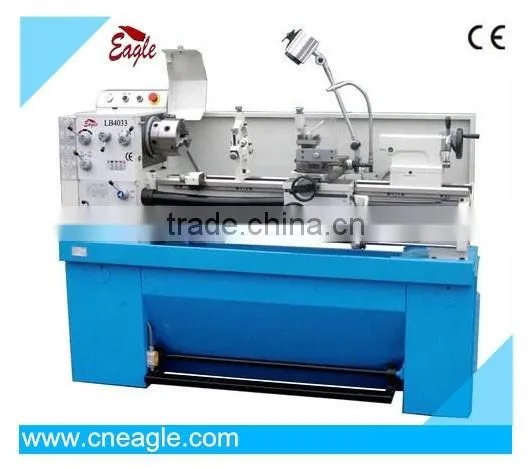

LB4033 Light Lathe Machinery for Sale
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
Normal
Max. Swing Diameter
330mm
Place of Origin
Shandong, China
Brand Name
EAGLE
Model Number
LB4033 Light Lathe machinery for sale
Power(W)
1.1/1.5kw
Dimension(L*W*H)
1900*770*1670mm
Weight
net/gross weight: 650/750kg
Certification
CE
After-sales Service Provided
No overseas service provided
Specifications
LB4033 Light Lathe machinery for sale1).Pass CE Gost
2).Max. swing over bed 330mm
3).Distance between centers 1000mm
LB4033 Light Lathe machinery for sale
Feature:
-Removable gap.
-Dynamically balanced main spindle.
-Headstock gears ground with low noise.
-Lead screw, headstock, and tool-post of all with protection system, conform to "CE" standard.
-Handles can be handwheel type or cylinder type
specifications:
| Model | Unit | LB4030×500 | LB4030×750 | LB4033 |
| Max. swing over bed | mm | 304 | 330 | |
| Max. swing over cross slide | mm | 170 | 204 | |
| Max. swing over gap | mm | 430 | 464 | |
| Distance between centers | mm | 500 | 750 | 1000 |
| Spindle bore | mm | 40 | 40 | |
| Taper of spindle bore | MT5 | MT5 | ||
| Number of spindle speed | 9 | 9 | ||
| Range of spindle speed | r/min | 60~2000 | 60~2000 | |
| Range of metric threads | mm | 0.25~3.5 | 0.25~3.5 | |
| Range of inch threads | tpi | 8~144 | 8~144 | |
| Diameter of tailstock sleeve | mm | 40 | 40 | |
| Taper of tailstock bore | MT3 | MT3 | ||
| Travel of tailstock sleeve | mm | 115 | 115 | |
| Power of motor | kw | 1.1/1.5 | 1.1/1.5 | |
| N.W/G.W | kg | 480/580 | 520/620 | 650/750 |
| Overall dimensions (L×W×H) | mm | 1900×770×1670 | 1900×770×1670 | |
| Item NO. | 115030 | 115031 | 115032 | |
| Standard accessories | Optional accessories | |||
| 3-Jaw chuck(160mm) | MT5/3 sleeve | Foot brake system | Face plate | |
| Change gears set | Steady plates | Coolant system | Thread dial | |
| MT3 dead centers | Follow rest | Leadscrew guard | Longitudinal automatic trip | |
| Tool box with tools | Driving plate | 4-jaw chuck(200mm) | Live center | |
