Hot Sale of Hydraulic Rock Splitter/High Quality Stone Splitter

Product Name:

darda similarity hydraulic rock splitter used

Description:

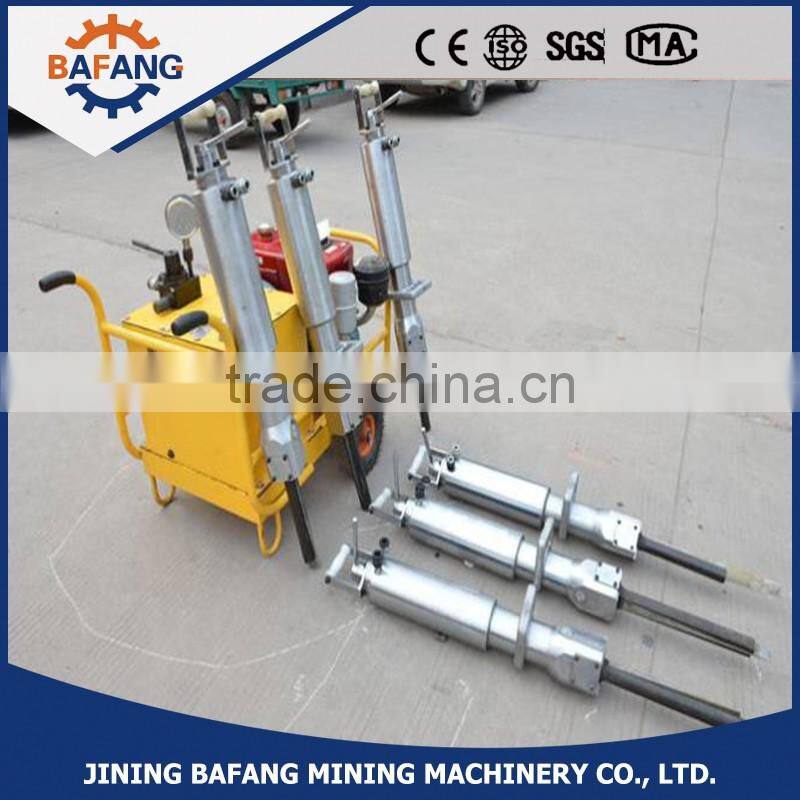

1. Hydraulic rock splitter is maninly composed of power pump pack and hydraulic cylinder.

    Mainly applicable to the secondary breaking.

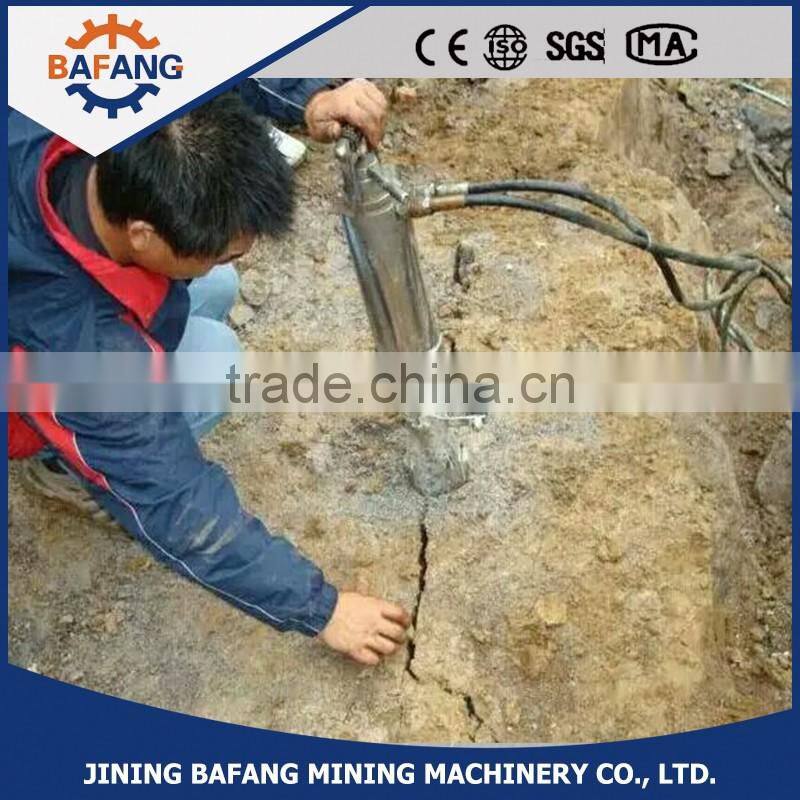

2. First drill hole in stone, then insert hydraulic cylinders which is contain wedge and feathers,

    Start engine to provide hydraulic pressure.

3. Repeat the process until the whole structure is fractured into smaller sections and ready for

    removal.

Advantages:

1. Enormous splitting force up to 500 tons & vibration free

2. Dust free and near silent operation & Light weight and Easy handling

3. Different sizes of counter wedge and center wedge can use on the same splitter

Application:

1. Split all kinds of natural stones, rock, granite, marble mining & quarrying

2. Remove redundant reinforced concrete structures, concrete machine beds and plinths etc.

3. Underwater demolition & Demolition in a restricted space

4. Controlled demolition of pillars, concrete and walls where heavy equipment is impractical

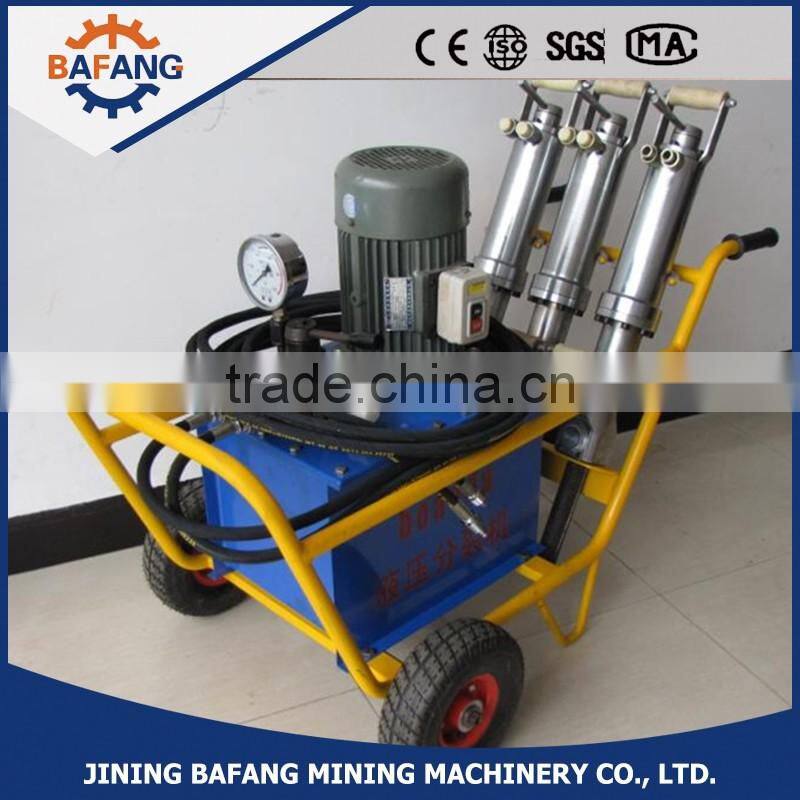

Specification about power pump pack of darda similarity hydraulic rock splitter used - hydraulic rock splitter

No

Name

quantity

  piece


     Specification

1

  Power

  splitter

  4

Model:JDL90-45        Working Pressure:50Mpa

Drilling depth:800mm      Separatist force:800T

A single split seam:16mm      the lenght of splitter:1300mm

The length of the wedge:350mm       weight/splitter:33Kg

2

Electric      motor

1

pressure:55-60Mpa

Working flow:2-13L

power:4KW(380V)

3

Water-cooled diesel engine

1

Working pressure 55-60Mpa   working flow:2-13L

power:6hp

4

Air-cooled diesel engine

1

Working pressure 55-60Mpa   working flow:2-13L

power:6hp

Charged to start
