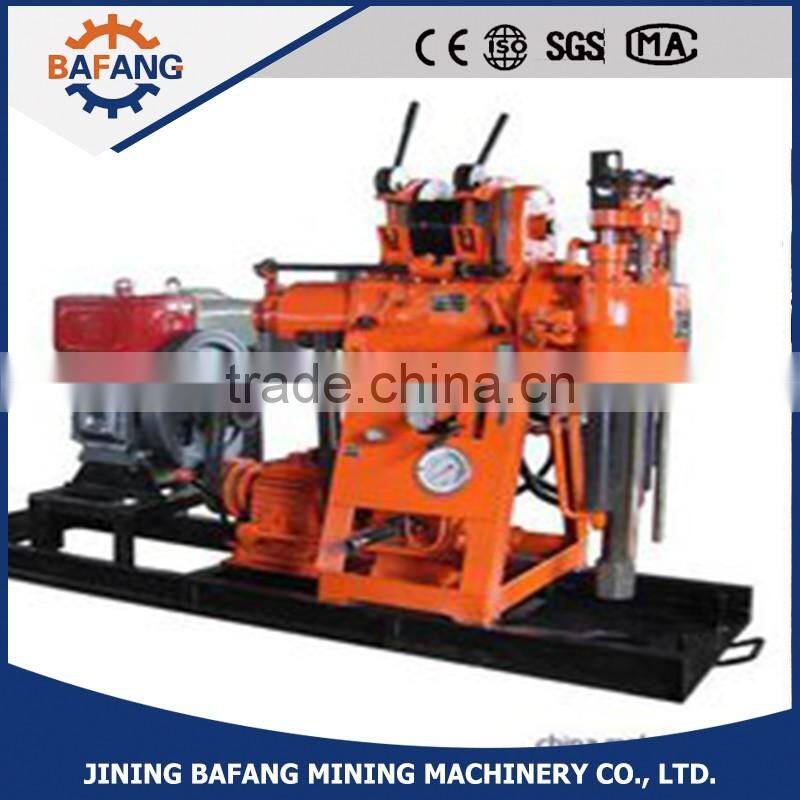

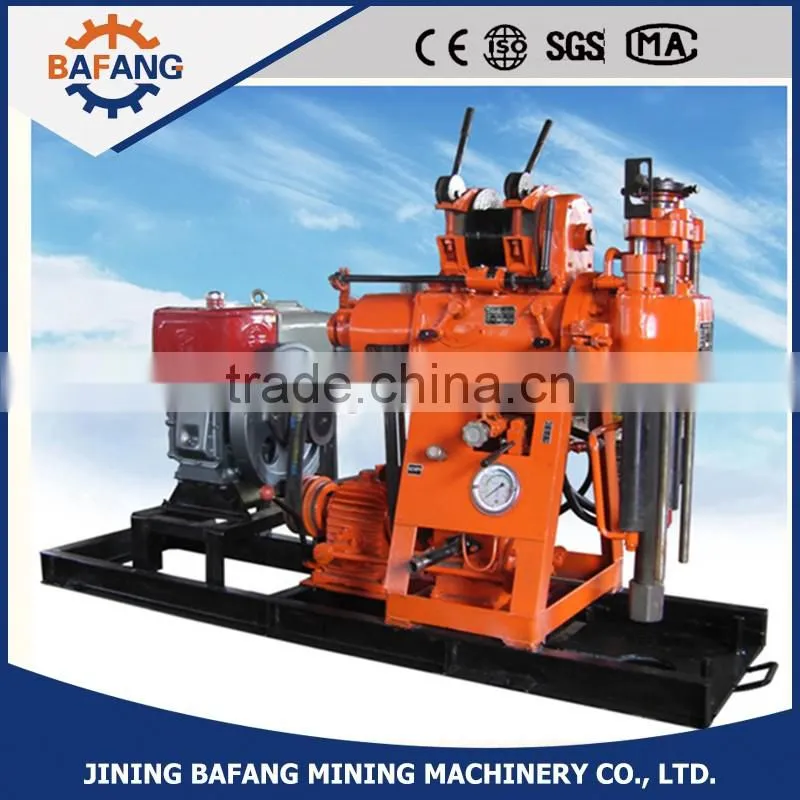

High Quality 100M Hydraulic Water Well XY-100 Core Drilling MachineWith The Best Price
Specifications:
Water Well Core Drilling Machine
1.Drilling Depth:100m
2.drilling diameter; max 200mm
Instrustion:
· Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
· With hydro-automatic feeding device, and high drilling efficiency.
· Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
· Close levers, convenient to operate, safe and reliable operations.
· Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
· Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas
Specification:
Unity machine parameter | |
Drilling depth | 100m |
Drilling caliber | 200mm |
Drill rod caliber | 50mm |
Drilling angle | 90°~75 ° |
Drill weight (No include power) | 510kg |
Spindle | |
Spindle speed | 64 128 287 557 r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 2400kg |
Reel lifting speed | 0.41 0.82 1.64m/s |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35mm |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Distance between drill and hole | 450mm |
Mud pump | |
Type | Horizontal single urn twin action |
Displacement | 170L/mim |
Power | |
Diesel engine | S1115 15HP |
Electric motor | Y160M-4 11kw 1440r/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt | B1728mm |
