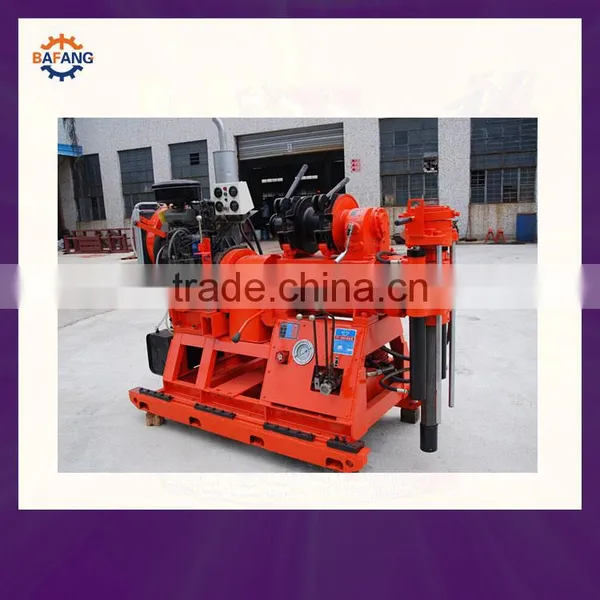

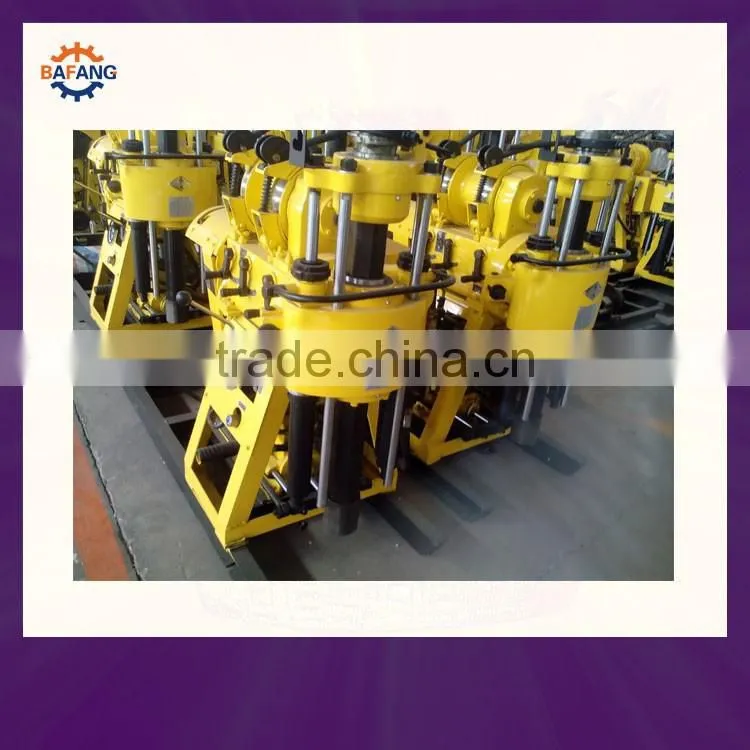

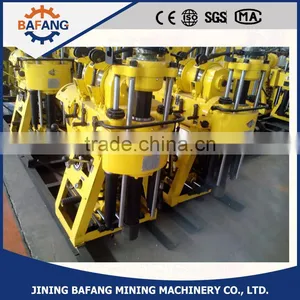

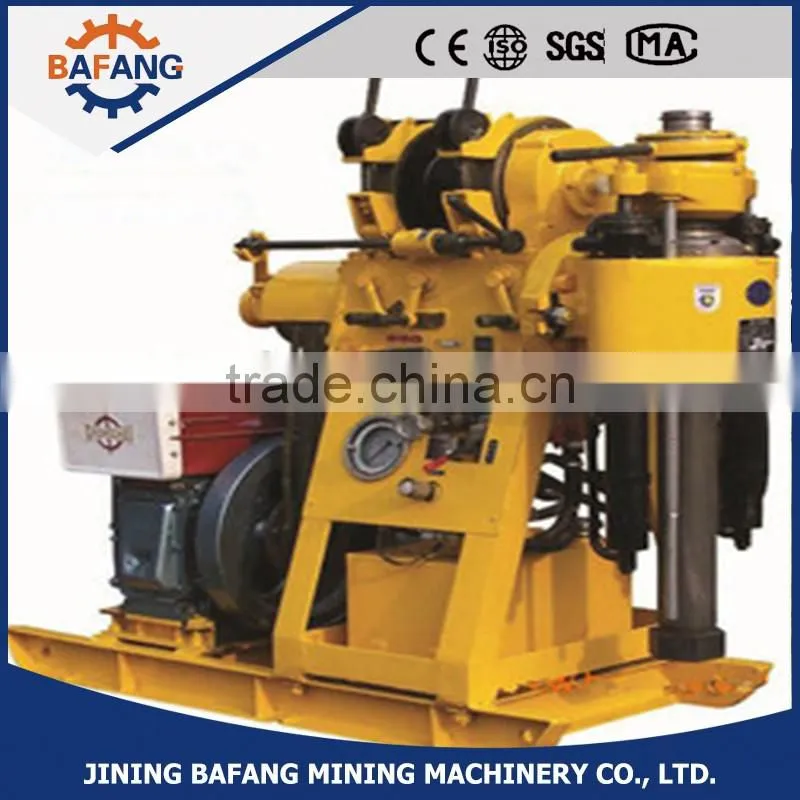

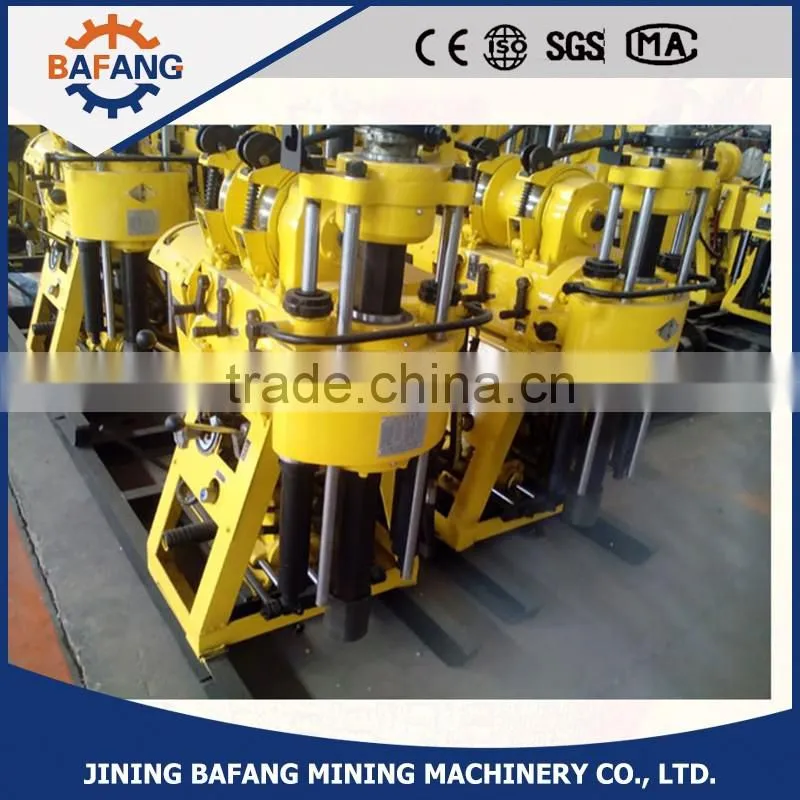

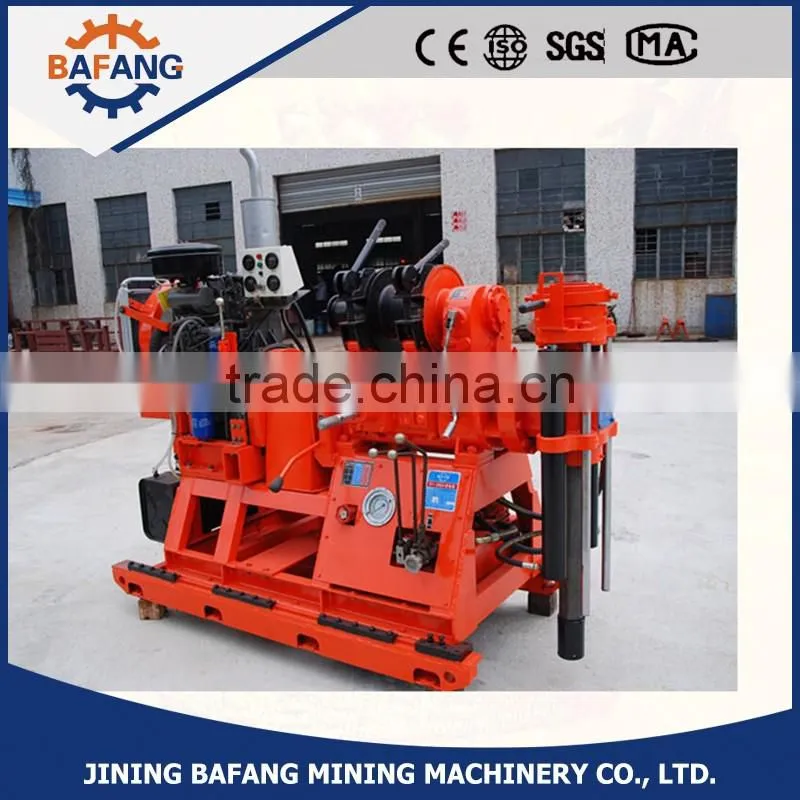

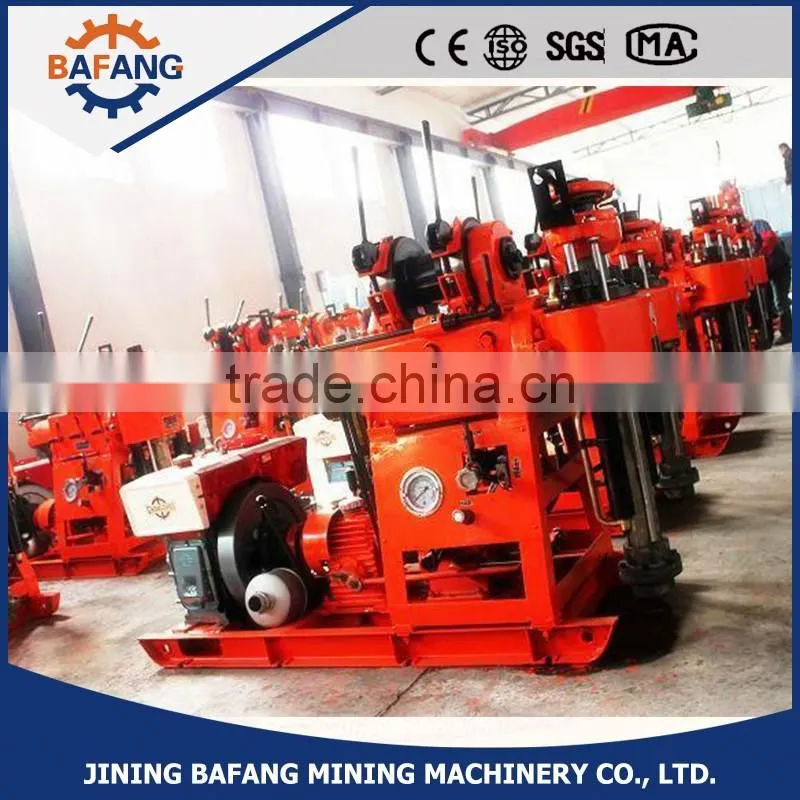

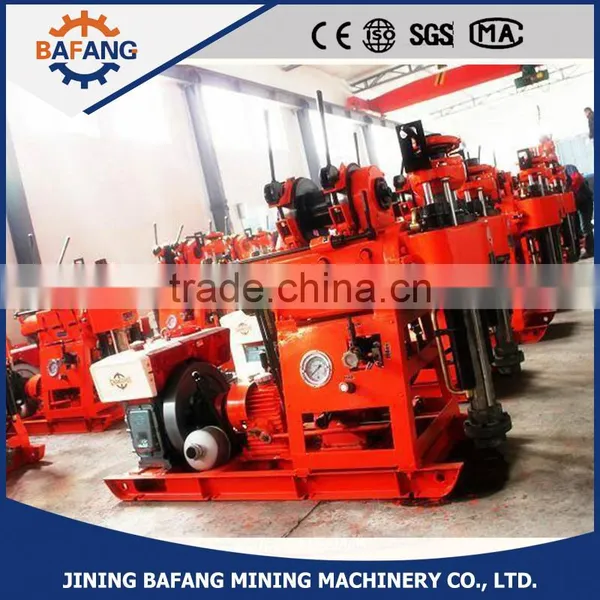

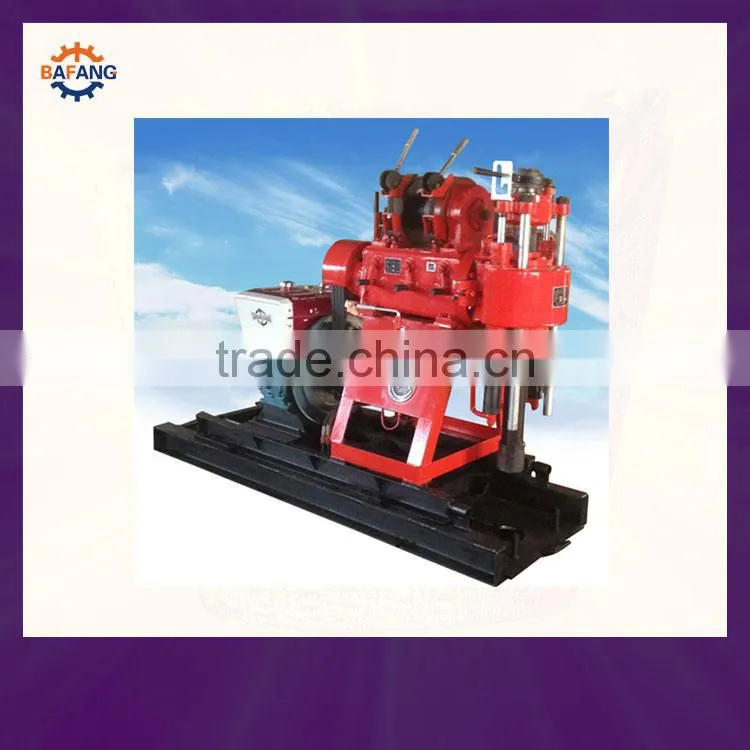

200M Hydraulic Water Well XY-200 Core Drilling Machine With The Best Price
- Qingdao/Ningbo
- Credit Card
You May Like
-
High Efficient 200M Hydraulic Water Well XY-200 Core Drilling Machine
-
High Efficient 100M Hydraulic Water Well XY-100 Core Drilling Machine
-
Hydraulic Rock Splitter/Stone Splitter /Hot Sale of Drilling Machine
-
High quality air leg pneumatic rock drill 7655
-
KHYD mine explosion proof electric rock drill/ electric rock rotary drill
-
Hydraulic rock splitter for sale
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | BAFANG | Model Number | XY-200 | |
| Usage | Water Well | Voltage | Diesel Engine Driven | |
| Dimension(L*W*H) | 2.75*0.95*1.6m | Weight | 2400KG | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Efficient 200M Hydraulic Water Well XY-200 Core Drilling Machine
Specifications
1. Mounted on a trailer.
2. XY-200 max. depth is 200m.
3. It can drill various soft and hard rock.
4. BV & SGS certificate.
XY-200 200m Water Well Drilling Rig
Appliance
XY-200 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Attracting features
1. Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, two-wheel, crawler, according to your situation.
3. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
4. Spare parts
We provide factory cost accessory all year round.
5. Power
Diesel engine or Electrical motor.
Specification:
Unity machine parameter | |
Drilling depth | 200m |
Drilling caliber | 300mm |
Drill rod caliber | 60mm |
Drilling angle | 90°~75 ° |
Drill weight (No include power) | 975kg |
Spindle | |
Spindle speed | 64 128 287 557 r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 2400kg |
Reel lifting speed | 0.41 0.82 1.64m/s |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35mm |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Distance between drill and hole | 450mm |
Mud pump | |
Type | Horizontal single urn twin action |
Displacement | 170L/mim |
Power | |
Diesel engine | S1115 22HP |
Electric motor | Y160M-4 15kw 1440r/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt | B1728mm |
