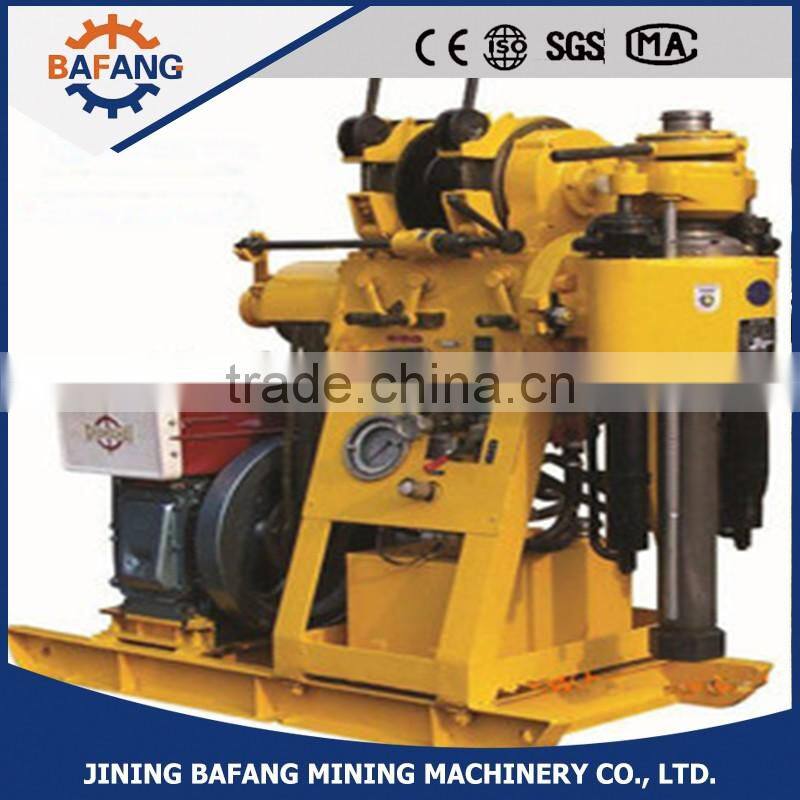

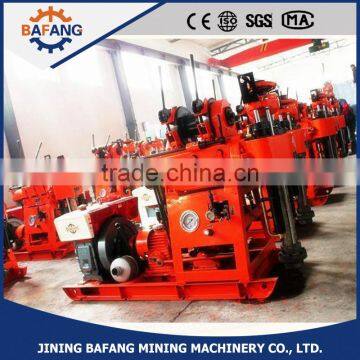

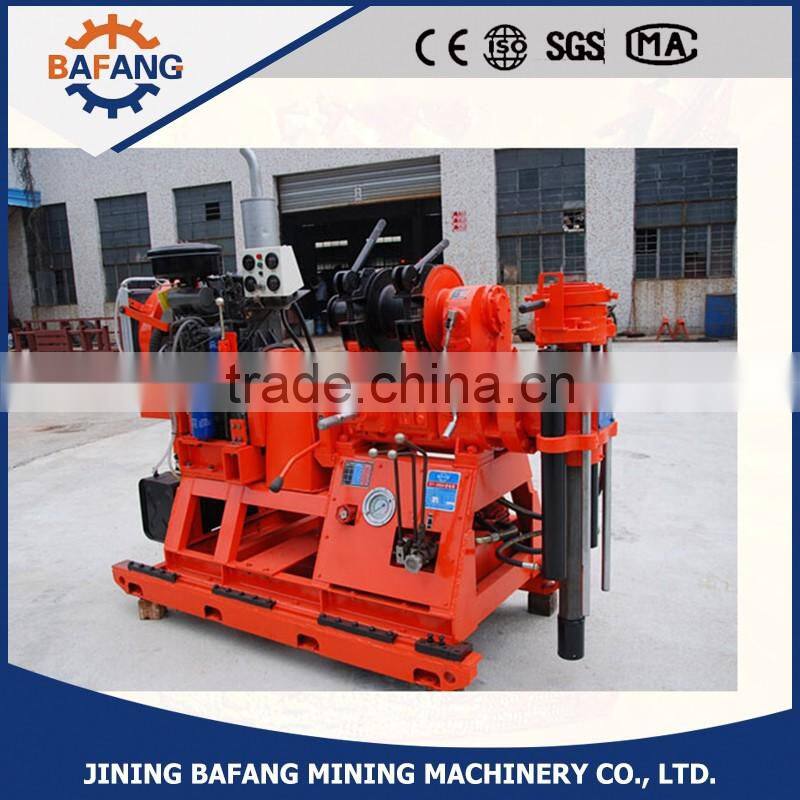

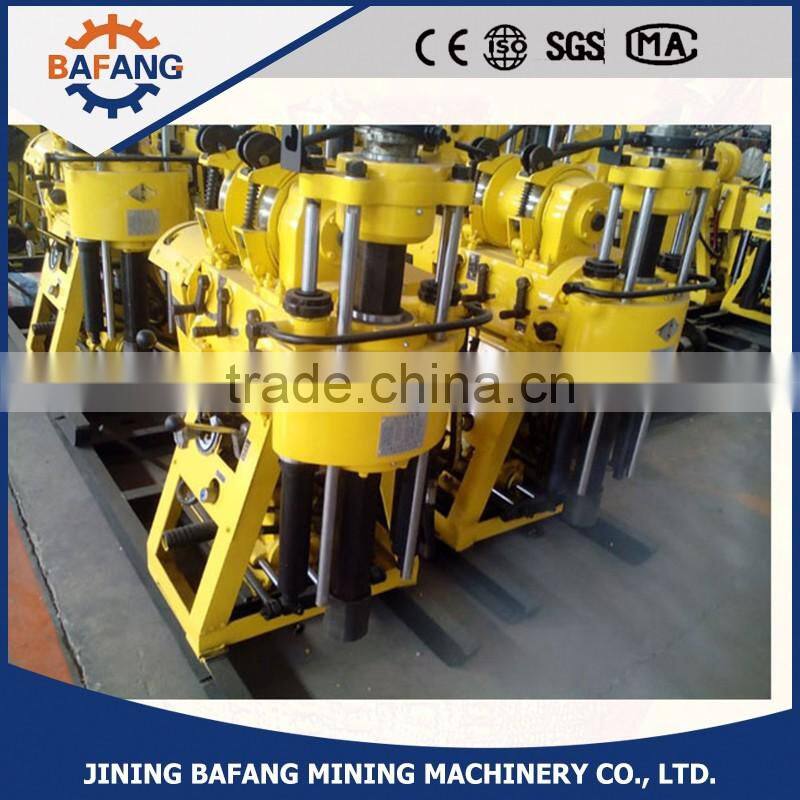

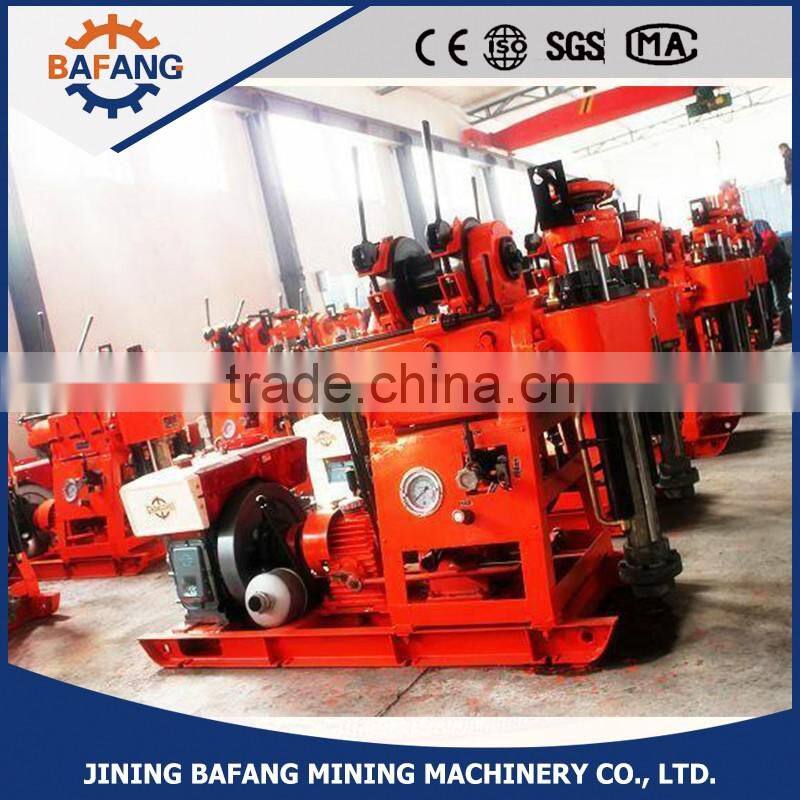

High Efficient 200M Hydraulic Water Well XY-200 Core Drilling Machine
Specifications
1. Mounted on a trailer.
2. XY-200 max. depth is 200m.
3. It can drill various soft and hard rock.
4. BV & SGS certificate.
XY-200 200m Water Well Drilling Rig
Appliance
XY-200 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Attracting features
1. Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, two-wheel, crawler, according to your situation.
3. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
4. Spare parts
We provide factory cost accessory all year round.
5. Power
Diesel engine or Electrical motor.
Specification:
Unity machine parameter | |
Drilling depth |
200m |
Drilling caliber |
300mm |
Drill rod caliber |
60mm |
Drilling angle |
90°~75 ° |
Drill weight (No include power) |
975kg |
Spindle | |
Spindle speed |
64 128 287 557 r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
2400kg |
Reel lifting speed |
0.41 0.82 1.64m/s |
Tightrope caliber |
12.5mm |
Tightrope cubic measure |
35mm |
Hug floodgate caliber |
260mm |
Hug floodgate belt width |
70mm |
Distance between drill and hole |
450mm |
Mud pump | |
Type |
Horizontal single urn twin action |
Displacement |
170L/mim |
Power | |
Diesel engine |
S1115 22HP |
Electric motor |
Y160M-4 15kw 1440r/min |
Maximum pressure |
3Mpa |
Work pressure |
1.5Mpa |
Water inlet caliber |
40mm |
Water to exit caliber |
30mm |
Triangle conveyer belt |
B1728mm |
