Home > Manufacturing & Processing Machinery > Mining Machinery > Rock Splitter > Darda Hydraulic Rock Splitter Cylinder C12(N) With Disel Engine
Darda Hydraulic Rock Splitter Cylinder C12(N) With Disel Engine
US$ 3,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Fujian, China
Brand Name:
BESTLINK
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminium Alloy Hydraulic Cylinder for Rock Concrete Splitter Similar to German DardaUS$ 1,600 - 2,300MOQ: 1 Piece -
Hydraulic Oil Cylinder for Rock Concrete SplitterUS$ 1,600 - 2,300MOQ: 1 Piece
-
Hydraulic Cylinder for Stone Concrete SplittingUS$ 1,600 - 2,300MOQ: 1 Piece
-
Splitting Cylinder of Hydraulic SplitterUS$ 1,600 - 2,300MOQ: 1 Piece
-
Cylinders for Hydraulic Rock Splitter MachineUS$ 1,600 - 2,300MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
BESTLINK
Model Number
Darda C12(N)
Online vedio: /watch?v=0qfKoe004sc
Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.

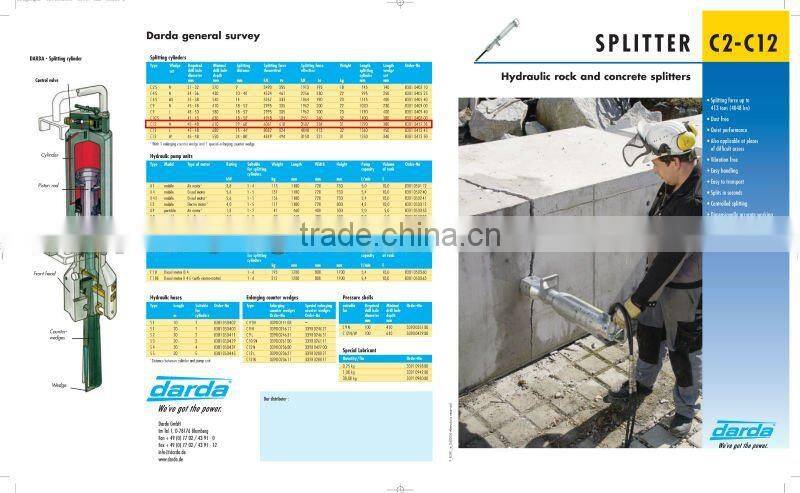

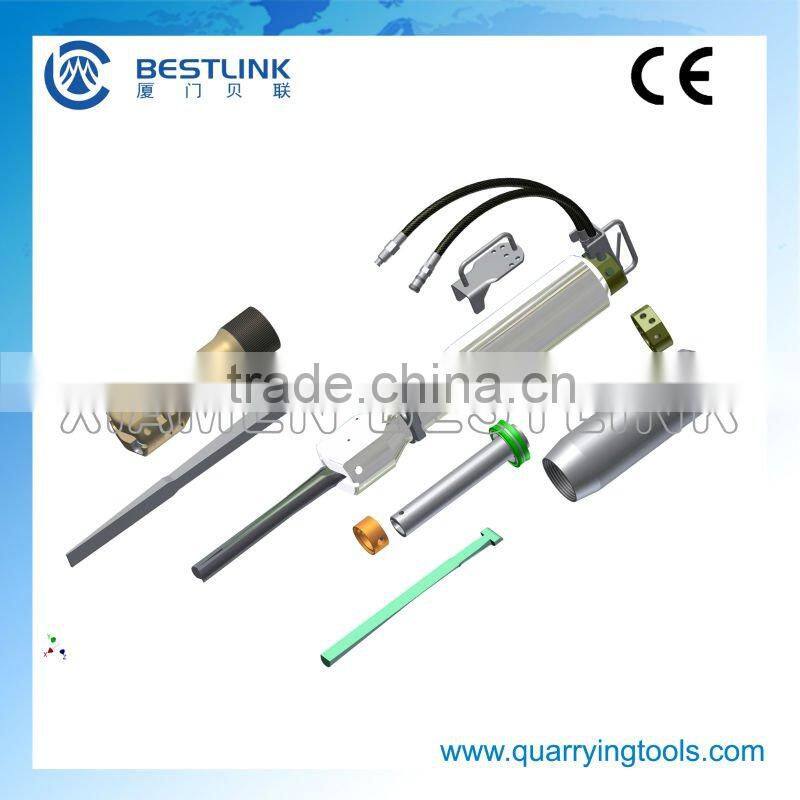

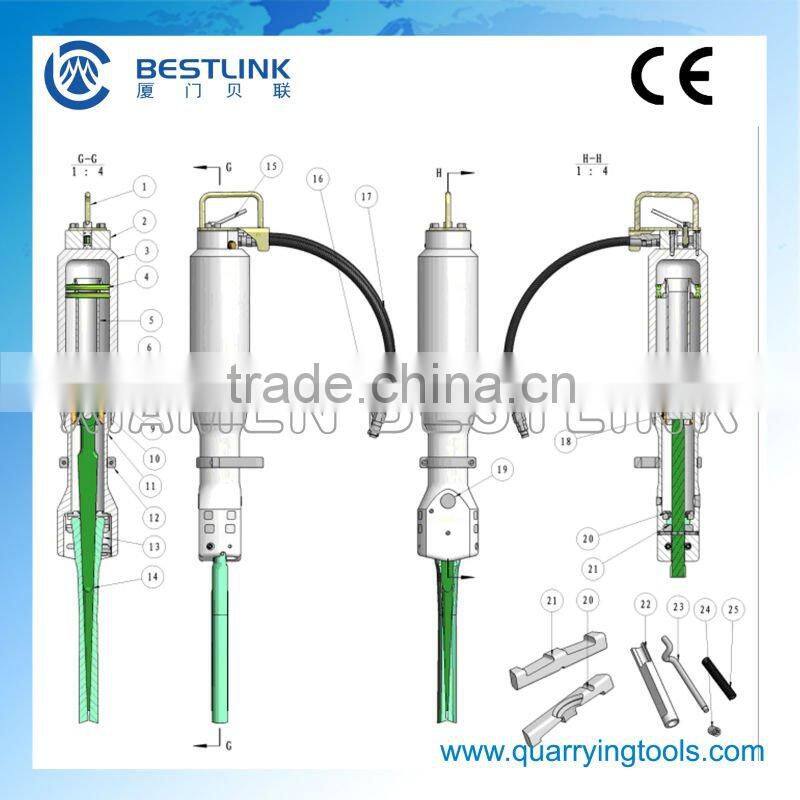

we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it have the exact same shape,same parts and same performance as the original one.

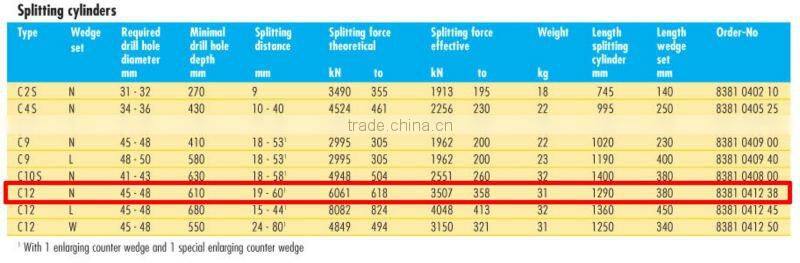

Inner diameter of the cylinders:
Darda cylinder: 105mm
Technical data of Diesel engine
| Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine Power | Working pressure(MPa) | flux(L/m) | Towable of splitter quantity(pc) |
| Diesel engine | 1150*1180*940 | 260 | 40 | 5.15KW | 55-60 | 2-13 | 1-10 |
Technical data of Gasoline engine
| Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine power | Working pressure(MPa) | Flux(L/m) | Towable of splitter quantity(pc) |
| Gasoline model | 1200*1170*800 | 100 | 40 | 7.5HP | 55-60 | 2-13 | 1-10 |
Technical data of electric engine
| Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | Engine power | Working pressure(MPa) | Flux | Towable of splitter quantity(pc) |
| (kg) | (L/M) | ||||||
| Electric motor | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 | |
| 384*280*620 | 75 | 30 | 3KW(380V) | 55-60 | 2 | 1-3 | |
| 7.5KW(380V) | 55-60 | 13 | 1-10 |
Technical data of pneumatic model
| Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | rotating speed(r.p.m) | Rated power(kw) | Oil flux(L/m) | Working pressure(MPa) | Towable of splitter quantity(pc) |
| Air motor | 384*280*620 | 70kg | 30 | 2000 | 4.10 | 2-13 | 55-60 | 1-10 |
Note:Please use the 46# or 68# antiwear hydraulic oil.
