High Efficient 100M Hydraulic Water Well XY-100 Core Drilling Machine

Name: High Efficient 100M Hydraulic Water Well XY-100 Core Drilling Machine
Brand: BAFANG
SKU: 140908806
Availability: InStock

US$ 4,000 - 8,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Power Type:

Diesel

Jining Bafang Mining Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Power Type Diesel

Place of Origin Shandong, China

Brand Name BAFANG

Model Number XY-100

Usage Water Well

Voltage Diesel Engine Driven

Power(W) 11kw

Dimension(L*W*H) 2.75*0.95*1.6m

Weight 2400KG

Certification ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

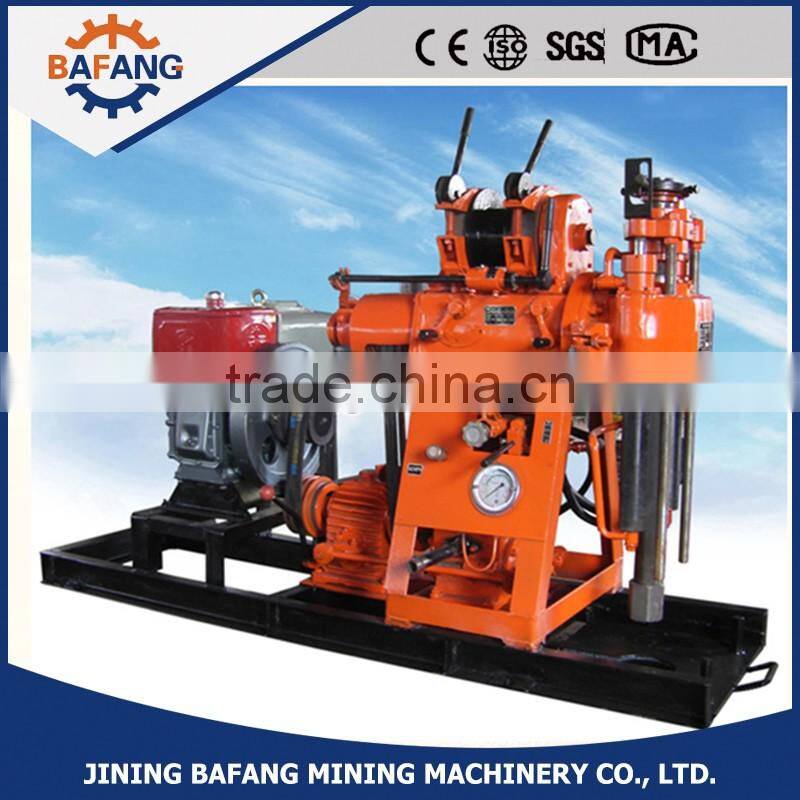

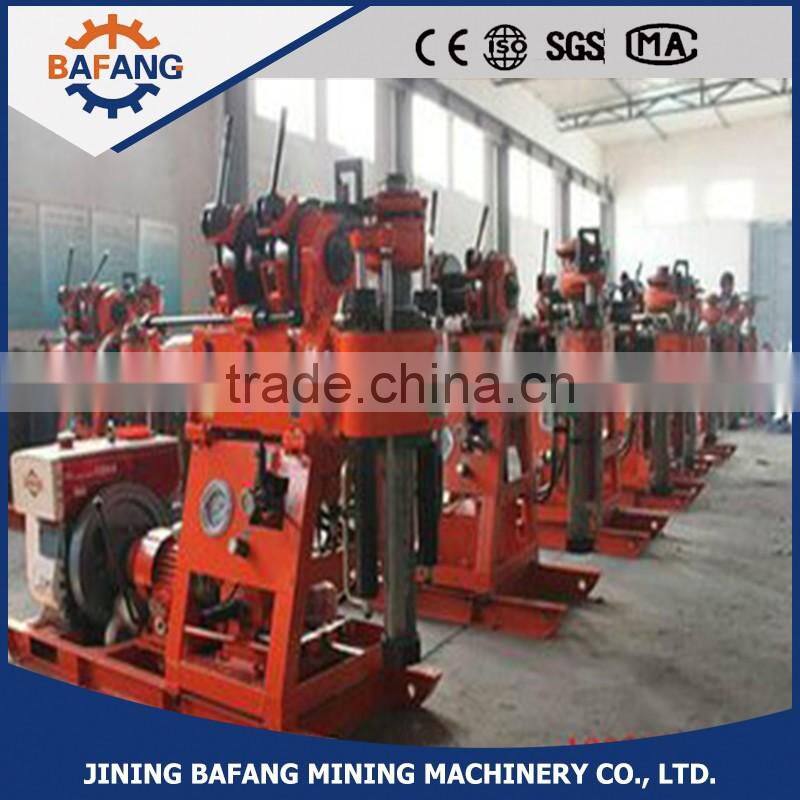

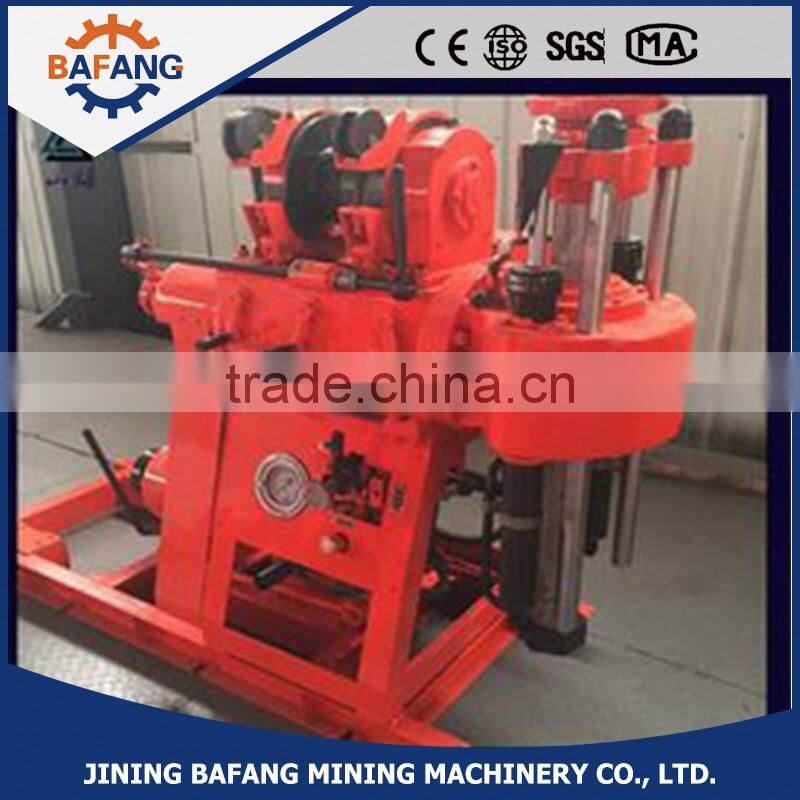

High Efficient 100M Hydraulic Water Well XY-100 Core Drilling Machine

Water Well Core Drilling Machine
1.Drilling Depth:100m
2.drilling diameter; max 200mm

Instrustion:

· Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

· With hydro-automatic feeding device, and high drilling efficiency.

· Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

· Close levers, convenient to operate, safe and reliable operations.

· Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

· Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas

Specification:

Unity machine parameter
Drilling depth	100m
Drilling caliber	200mm
Drill rod caliber	50mm
Drilling angle	90°~75 °
Drill weight (No include power)	510kg
Spindle
Spindle speed	64 128 287 557 r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	2400kg
Reel lifting speed	0.41 0.82 1.64m/s
Tightrope caliber	12.5mm
Tightrope cubic measure	35mm
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Distance between drill and hole	450mm
Mud pump
Type	Horizontal single urn twin action
Displacement	170L/mim
Power
Diesel engine	S1115 15HP
Electric motor	Y160M-4 11kw 1440r/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
