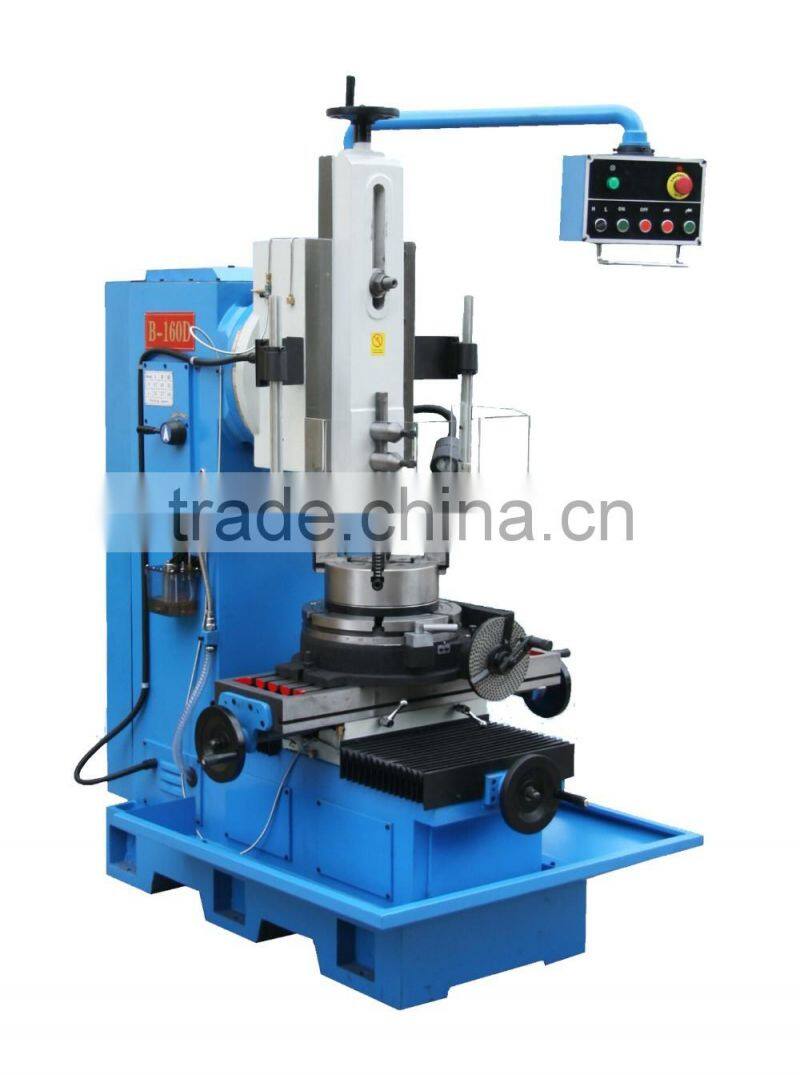

Newest Economic-type Manual Vertical Slotter

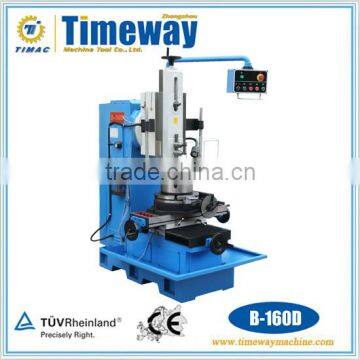

B-160D
Technical Parameter
Specification |
Unit |
B-160D |
Max. slotting length |
mm |
160 |
No. of ram strokes per minute |
times |
23,32,44,48,67,92 |
Swing angle of ram |
deg |
±45° |
Table diameter |
mm |
350(14") |
Vertical adjustment of ram |
mm |
160 |
Distance between tool holding surface and column front |
mm |
485 |
Distance between table surface and lower end of ram slide |
mm |
320 |
Max. longitudinal travel of table |
mm |
360 |
Max. cross travel of table |
mm |
320 |
Max. rotary angle of table |
deg |
360 |
Tool shank size(W*H) |
mm |
25*40 |
Max. cutting force |
N |
4500 |
Max. table load-carrying capacity |
kgs |
300 |
Width of table center T-slot |
mm |
14 |
Power of main drive motor |
kw |
15/0.85 |
Rotating speed of main drive motor |
rpm |
700/1410 |
Net weight(approx) |
kgs |
1000 |
Overall dimension(L*W*H) |
mm |
1270*1100*1700 |

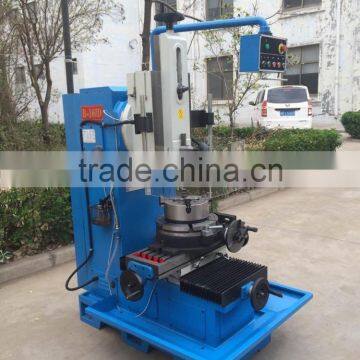

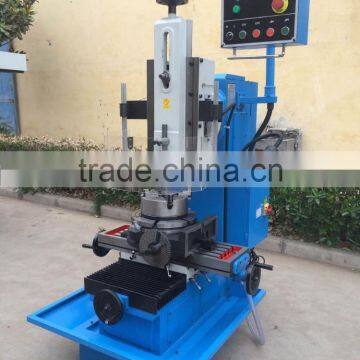

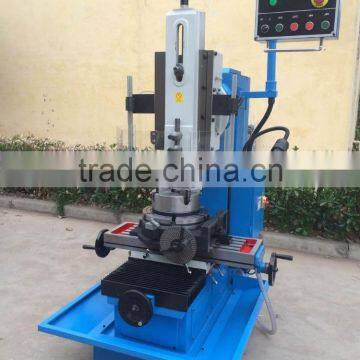

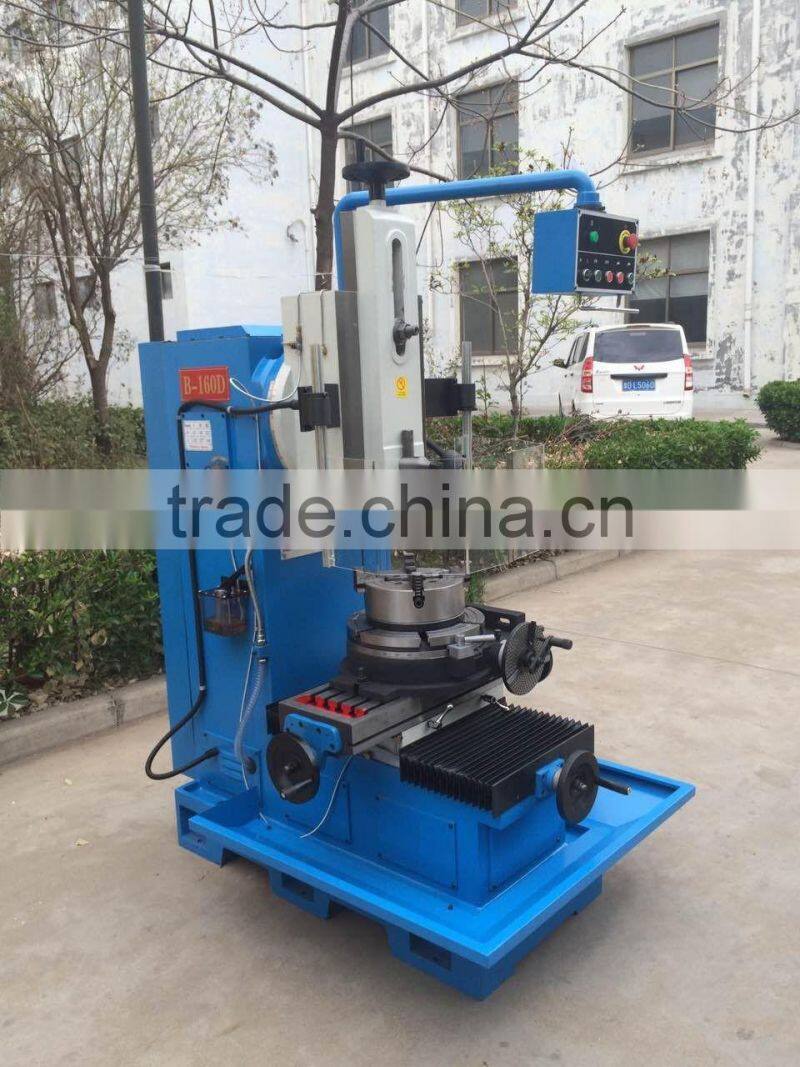

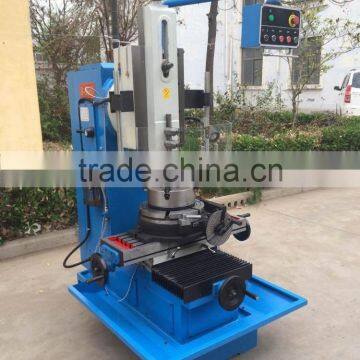

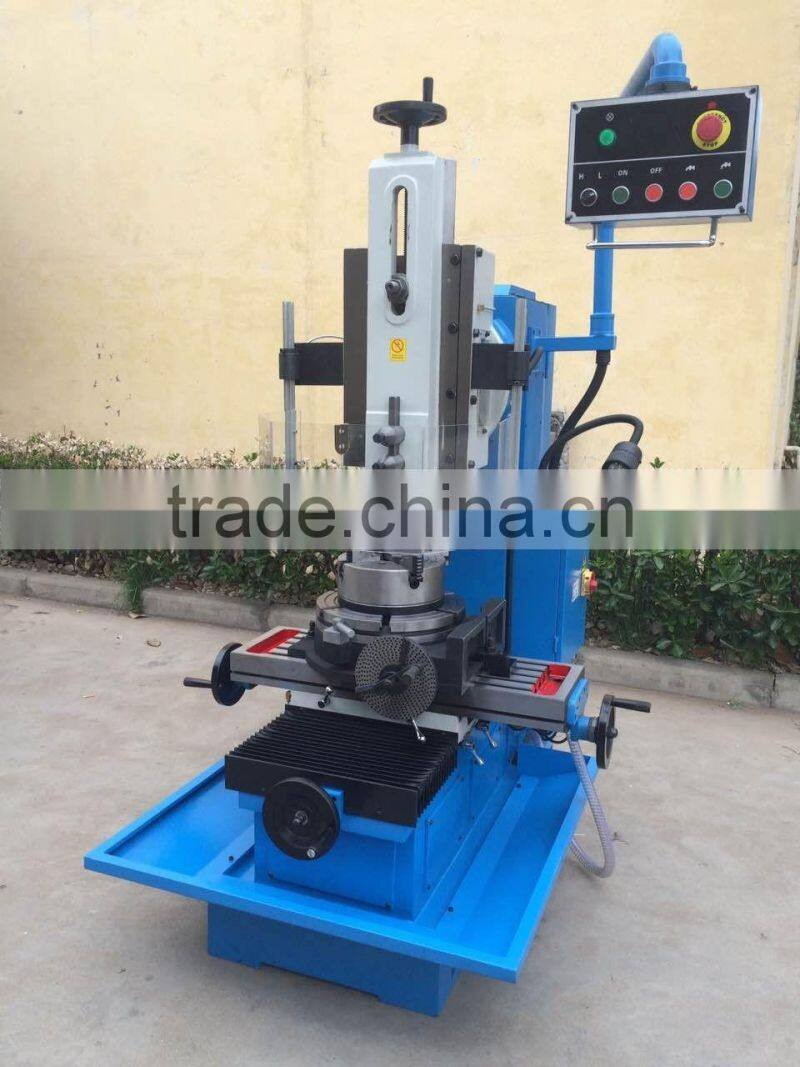

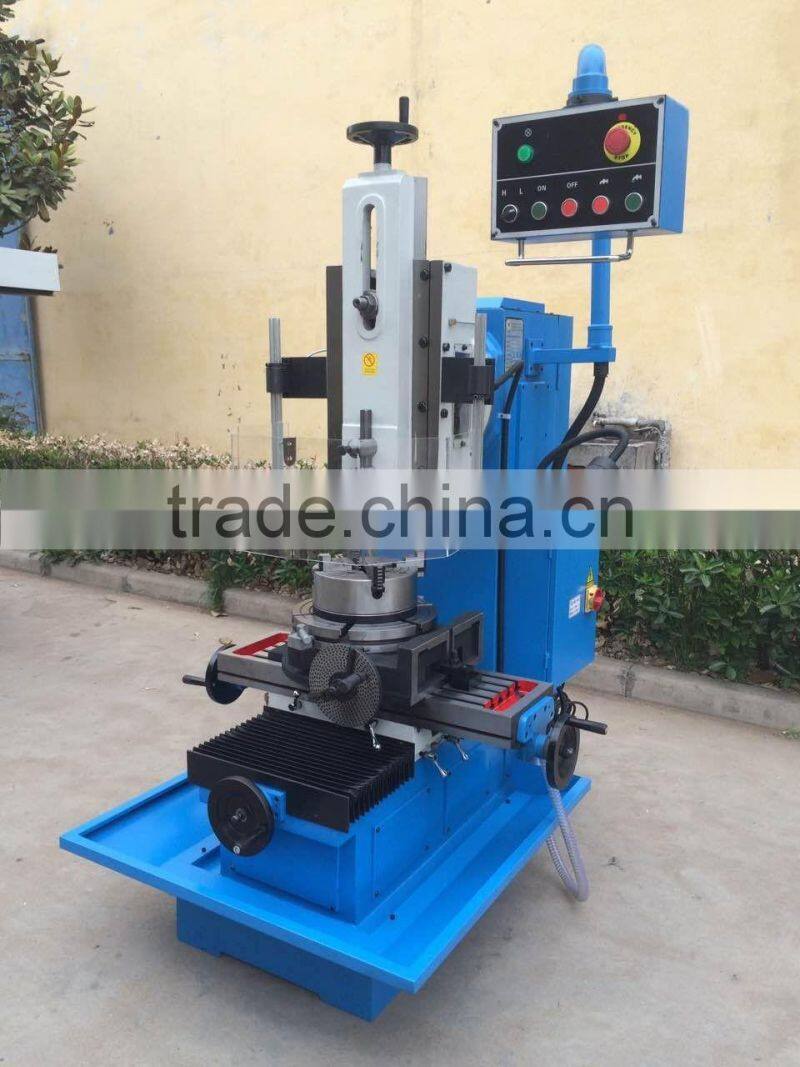

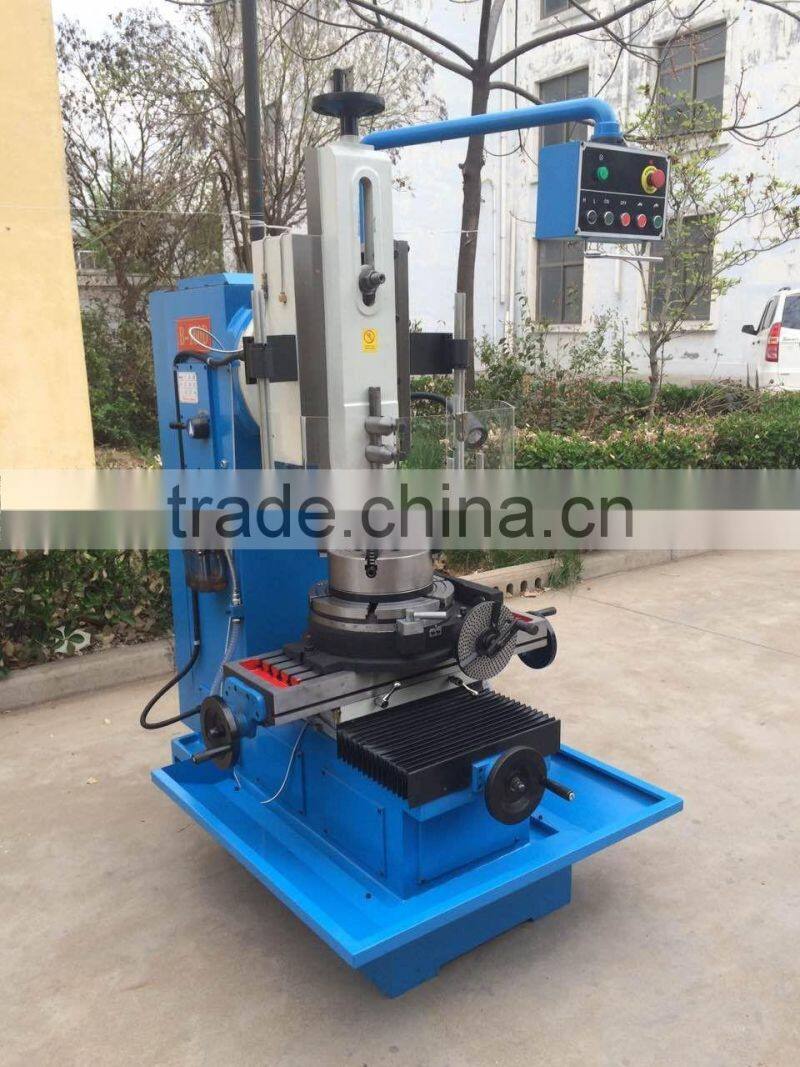

Actual Pictures In Factory

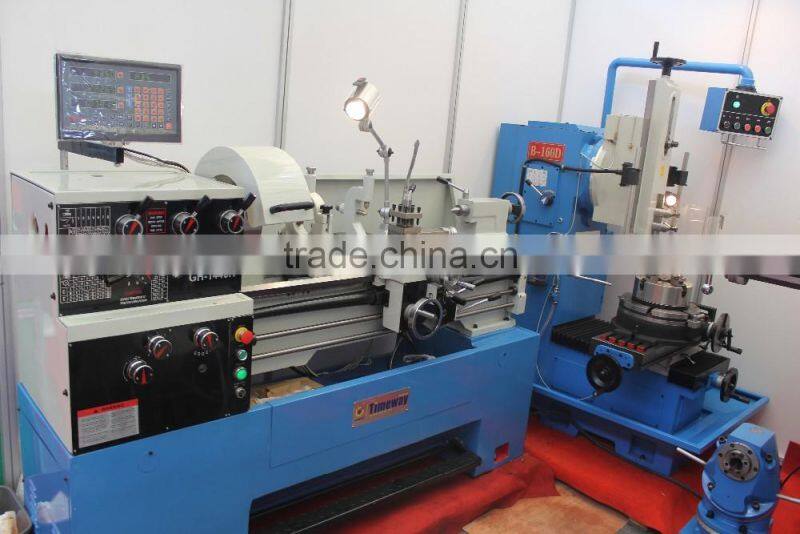

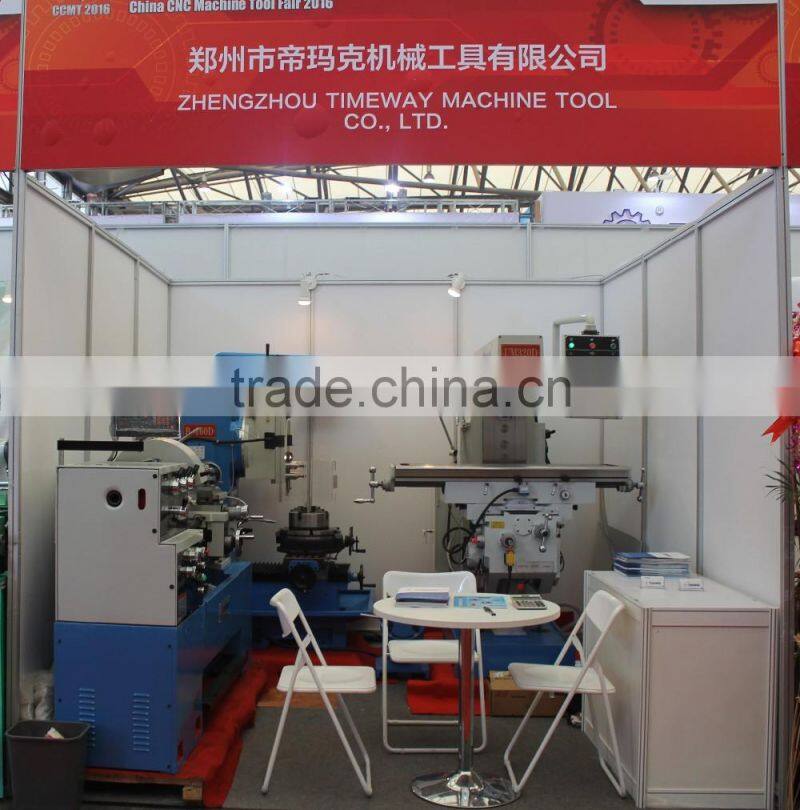

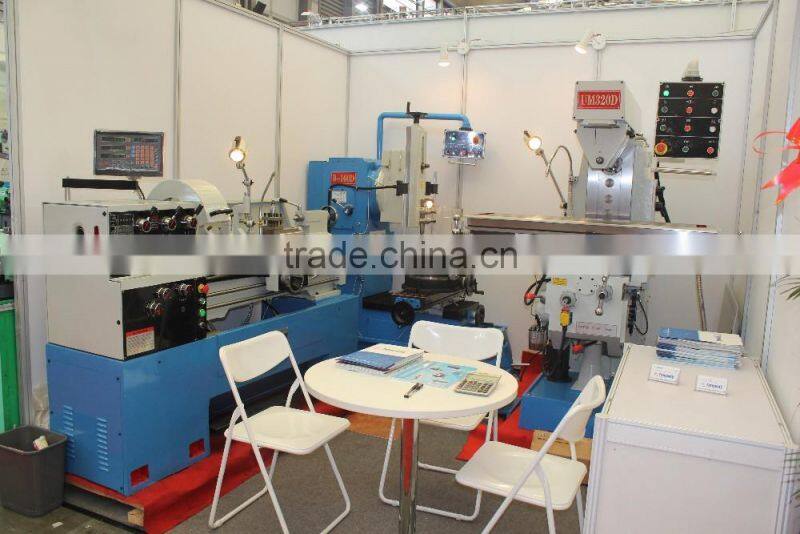

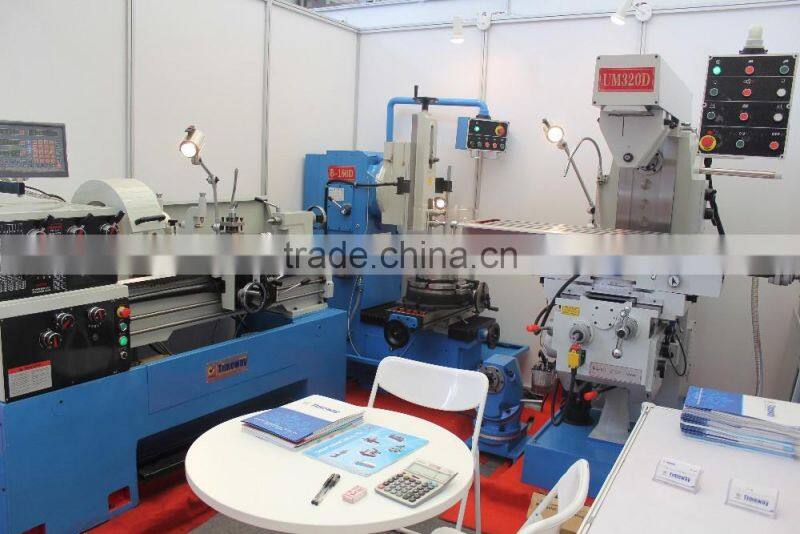

Newest Developed Slotter was Exhibited In China CNC Machine Tool Fair 2016(CCMT2016) in the Shanghai
Talk with the customer in the CCMT2016
