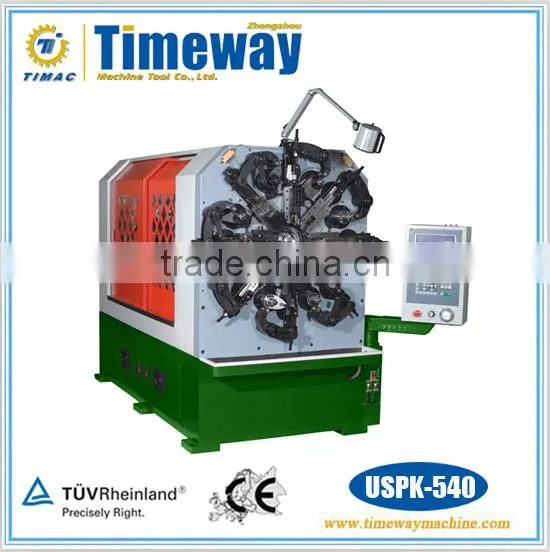

5-axis Universal CNC Cam Spring Coil Machine (CNC Spring Forming Machine)
USPK-540
Technical Parameter
Model |
USPK-540 |
Axis Count |
5 axis |
Wire Size Range |
φ1.2-4.0mm |
Max Outside Diameter |
φ65mm |
Max Feeding Speed |
72m/min |
Max Production Rate |
60pcs/min |
Feeding Motor SGMGV-44A |
3.8kw |
Quill Motor SGMGV-15A |
1.0kw |
Wire Rotation Motor SGMGV-44A |
3.8kw |
Cam Motor SGMGV-13A |
3.8kw |
Spinner Motor SGMGV-09A |
1.0kw |
Dimension(LxWxH) |
2400x1500x1800mm |
Weight |
2500kg |
Power AC |
3-380V AC 50Hz |
Performance and Feature
- USPK-540 five axis CNC spring forming machine, referred to as the 5 axis machine, the standard process of wire diameter is 1.2-4.0mm, mainly used for processing various spring, compression spring, torsion spring, single (double) flat wire spring, shaped spring and complex product line forming.
- USPK-540 type five axis computer spring machine, using the Taiwan computer program control, adopts the advanced Japanese industrial servo motor, imported high precision bearing and high quality alloy panels, through the CNC code can be respectively on the wire feeding system and cam drive system of synchronous control, can achieve precise 24 hours of operation.
Other Spring Machine(Universal Spring Machine)
SPK-45 SPK-30
USPK-540 USPK-25

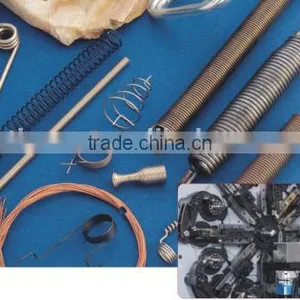

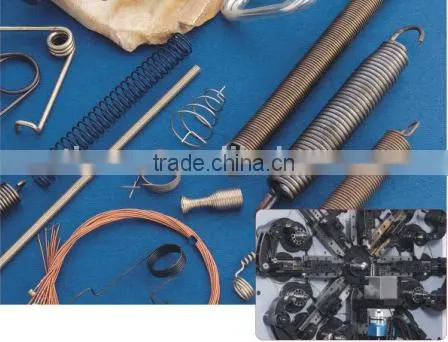

Workpiece Sample
