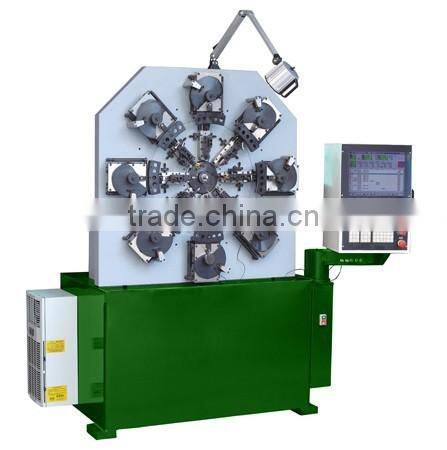

11-axes Camless CNC Versatile Spring Coiling Machine Wirh Wire Rotation
USPK1120A
Technical Parameter
Model | USPK1120A |
Axis Count | 11 axis |
Wire Size Range | φ0.3-2.2mm |
Max Feeding Speed | 132m/min |
Model Spring Index | 3 |
Wire Feeding Wheel Count | 2 pairs |
Feeding Motor SGMGV-44A | 2.9kw |
Quill Motor SGMGV-15A | 1.0kw |
Rotary Table Motor SGMGV-44A | 4.4kw |
Forming Motor SGMGV-13A | 0.85kwx8 |
Speed Ratio Of Wire Feeding | Ratio 1/2.5 |
Speed Ratio Of Quill | Ratio 1/2 |
Total Reduction Ratio Of Rotary Table | Ratio 1/12 |
Reducer Of Rotary Table | VRB140 1:3 |
Speed Ratio Of Wire Forming And Cutting | Ratio 1:6 |
Reducer Of Wire Forming And Cutting | VRB090 |
Dimension(LxWxH) | 1245x920x1863mm |
Weight | 1500kg |
Power AC | 3-380V AC 50Hz |
Performance and Feature
- USPK1120A eleven axis CNC spring forming machine turntable, commonly known as small line diameter without camshaft production line, the diameter of 0.3-2.2mm, mainly applicable to the production of a variety of compression spring, torsion spring, spring and complex shaped spring wire forming.
- USPK1120A computer spring machine, computer control system used in Taiwan and Japan Yaskawa servo motor, imported high precision bearings and other main parts, machine design unique, the sliding seat is composed of 8 groups of independent servo motor drive control, at the same time, it can achieve 8 slide 360 degree rotation, commissioning of the machine is simple and convenient, fast forming speed, production high efficiency, strong stability.
Other Spring Machine(Universal Spring Machine)
SPK-45 SPK-30
USPK-540 USPK-25
Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine(Optional)
Model | FWA-100 | FWA-200 | FWA-400 | FWA-1000 |
Max Capacity of Load | 100kg | 200kg | 400kg | 1000kg |
Max Speed of Table | 150rpm | 70rpm | 58rpm | 50rpm |
Diameter of Table | 650mm | 850mm | 1300mm | 2000mm |
Motor | 180w | 400w | 2.2kw | 4.0kw |
Power AC | 220v 50HZ | 220v 50HZ | 220V 50HZ | 3-380V 50Hz |
Dimensions(LxWxH) | 650x650x750mm | 800x850x800mm | 2000x850x900mm | 2900x2200x1305mm |
Weight | 60kg | 100kg | 150kg | 1000kg |
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
