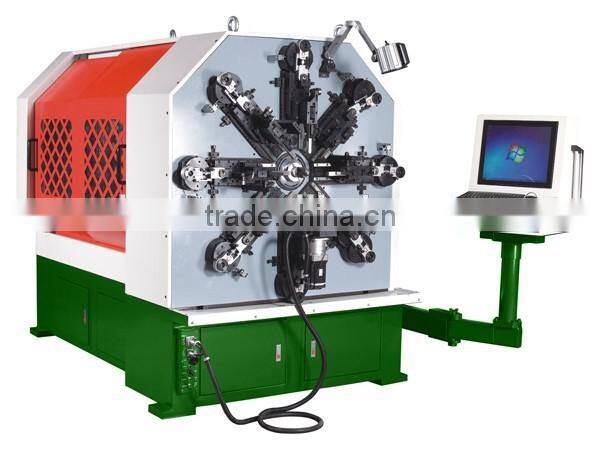

12 Axis Camless CNC Versatile Spring Rotating Forming Machine
USPK1240A
Technical Parameter
Model |
USPK1240A |
Axis Count |
12 axis |
Wire Size Range |
φ1.2-4.0mm |
Max Outside Diameter |
φ120mm |
Max Feeding Speed |
120m/min |
Model Spring Index |
4 |
Feeding Axis Count |
4 pairs |
Feeding Motor SGMGV-44A |
4.4kw |
Quill Motor SGMGV-15A |
1.5kw |
Wire Rotation Motor SGMGV-44A |
4.4kw |
Spinner Motor SGMGV-09A |
0.85kw |
Reducer Of Wire Forming |
1.3kwx8 |
Speed Ratio Of Wire Feeding |
Ratio 1/8 |
Speed Ratio Of Quill |
Ratio 1/3 |
Speed Ratio Of Wire Rotation |
Ratio 1/12 |
Speed Ratio Of Spinner |
Ratio 1/15 |
Reducer of wire forming |
Ratio 1/10 |
Reducer of wire forming |
VRB115 ratio 1/15 |
Spinner reducer |
VRB090 ratio 1/10 |
Reducer of wire rotation |
VRB140 1/3 |
Dimension(LxWxH) |
2400x1600x1900mm |
Weight |
2500kg |
Power AC |
3-380V AC 50H |
Performance and Feature
- USPK1240A 12 Axis Camless CNC Versatile Spring Rotating Forming Machine is used for making variours kinds of spring including the extension spring & torsion spring & compression spring & wire forming products which is high precision.
- Special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
- Computer CNC operating system.
- Range of diameter: 1.8mm-4.0mm.
- Camless spring machine with 12axis, will be easy control for users.
- With wire rotation.
Other Spring Machine(Universal Spring Machine)
SPK-45 SPK-30
USPK-540 USPK-25
Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine
Model |
FWA-100 |
FWA-200 |
FWA-400 |
FWA-1000 |
Max Capacity of Load |
100kg |
200kg |
400kg |
1000kg |
Max Speed of Table |
150rpm |
70rpm |
58rpm |
50rpm |
Diameter of Table |
650mm |
850mm |
1300mm |
2000mm |
Motor |
180w |
400w |
2.2kw |
4.0kw |
Power AC |
220v 50HZ |
220v 50HZ |
220V 50HZ |
3-380V 50Hz |
Dimensions(LxWxH) |
650x650x750mm |
800x850x800mm |
2000x850x900mm |
2900x2200x1305mm |
Weight |
60kg |
100kg |
150kg |
1000kg |
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
