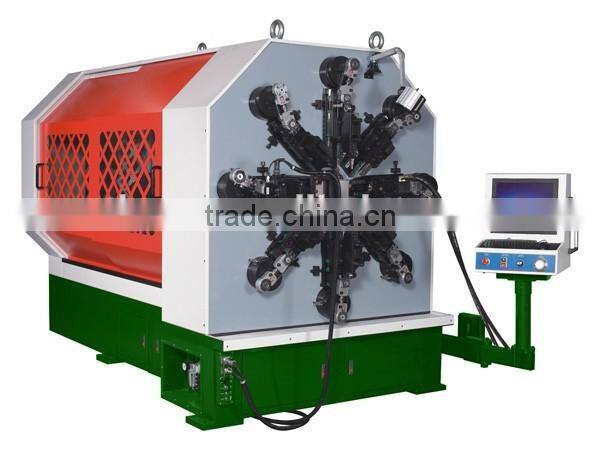

12 axes Camless CNC Versatile Spring Coiling Machine Wirh Wire Rotation

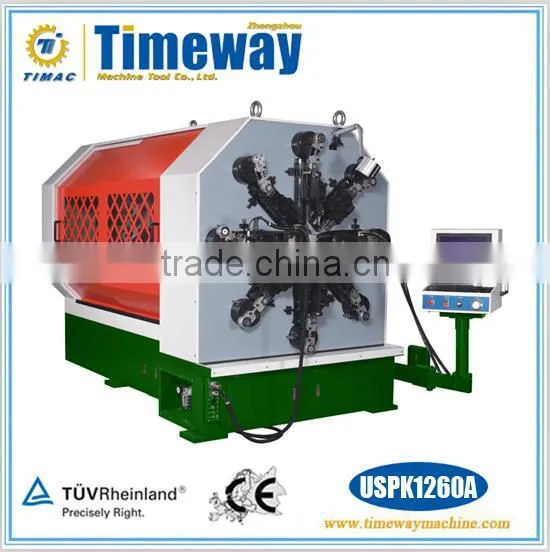

USPK1260A
Technical Parameter
Model | USPK1260A | |
Axis Count | 12 axis | |
Wire Size Range | φ2.5-6.0mm | |
Max outside diameter | φ112mm | |
Max feeding speed | 105m/min | |
Model Spring index | 4 | |
Feeding axis count | 3 pairs | |
Feeding Part | Servo Motor | SGMGV-75A 7.5kw |
Speed Ratio | Ratio 1/10.6 | |
Quill Part | Servo Motor | SGMGV-20A 1.8kw |
Speed Ratio | Ratio 1/3 | |
Part Of Wire Rotation | Servo Motor | SGMGV-55A 5.5kw |
Speed Ratio | Ratio 1/15 | |
Reducer | VRB 180 Speed Ratio 1/15 | |
Forming And Cut Off | Servo Motor | 4.4kwx8 |
Speed Ratio | Ratio 1/10 | |
Reducer | VRB 180 Ratio 1/10 8pcs | |
Part Of Spinner | Servo Motor | SGMGV-12A 1.3kw |
Speed Ratio | Ratio 1/10 | |
Reducer | VRB 115 Ratio 1/10 | |
Dimenssion(LxWxH) | 3300x1800x2300mm | |
Weight | 6000kg | |
Performance and Feature
- USPK1260A CNC spring forming machine is a twelve axis without cam CNC spring line forming machine, Kaichuagn spring machinery factory is a R & D and production of 12 axis without cam belt line CNC spring machine, the standard wire diameter of 2.5-6.0mm, mainly applicable to the production of various specifications of the special-shaped springs and wire forming products etc..
- USPK1260A CNC spring forming machine adopts Taiwan JingWei microcomputer NC system and Japan Yaskawa servo motor, the use of the unique non cam and rocker design tool free, independent control consists of eight sets of servo motor, knife 8 axis, 1 axis, send spool rotating core 1 axis, 1 axis and 1 transgenic lines curled shaft. The system is composed of a crank connecting rod forming system, wire feeding and wire transfer systems, wire straightening system and turn the core system.
- The machine can be equipped with hydraulic scissors cutting device, small noise, the mandrel and machine damage is zero. Greatly increased the processing range, precision machine spring, fast, stable production.

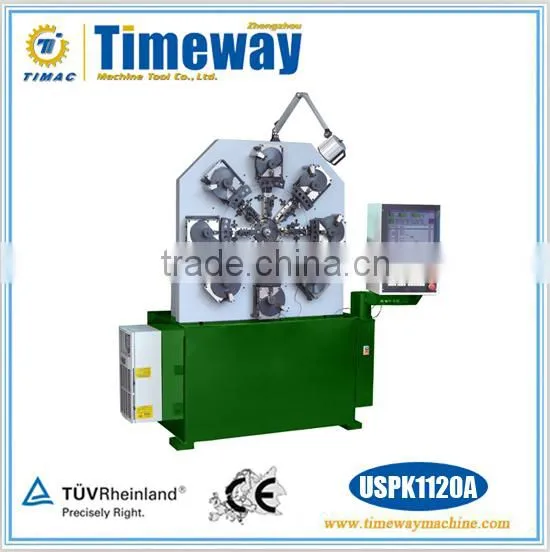

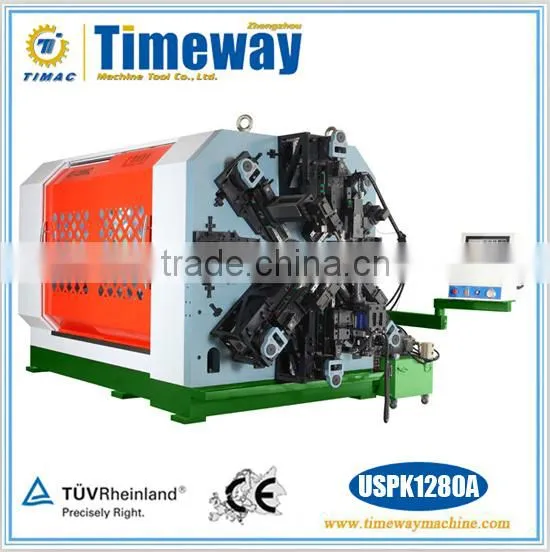

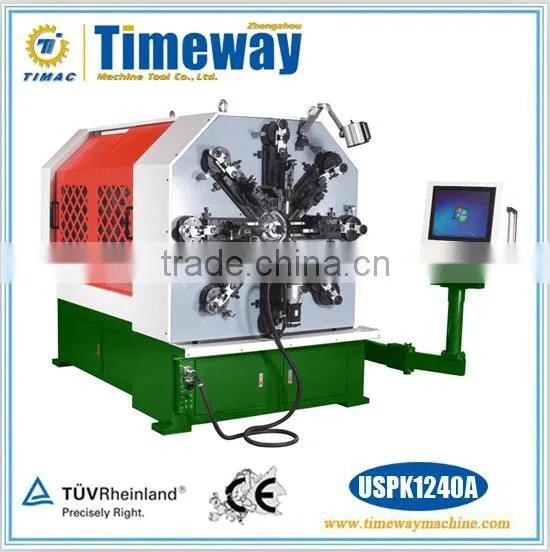

Other Spring Machine(Universal Spring Machine)
SPK-45 SPK-30
USPK-540 USPK-25

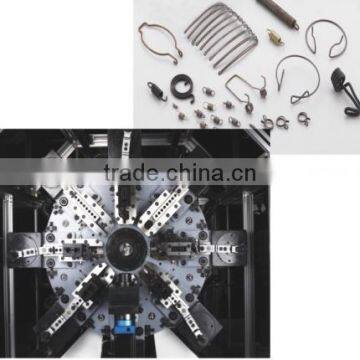

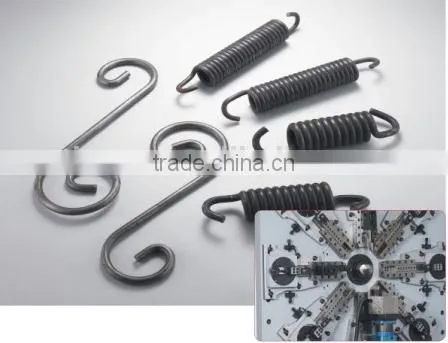

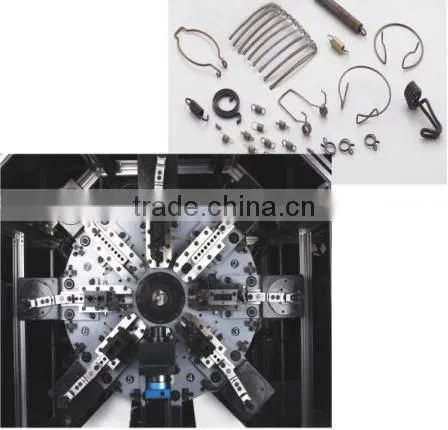

Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine(Optional)
Model | FWA-100 | FWA-200 | FWA-400 | FWA-1000 |
Max Capacity of Load | 100kg | 200kg | 400kg | 1000kg |
Max Speed of Table | 150rpm | 70rpm | 58rpm | 50rpm |
Diameter of Table | 650mm | 850mm | 1300mm | 2000mm |
Motor | 180w | 400w | 2.2kw | 4.0kw |
Power AC | 220v 50HZ | 220v 50HZ | 220V 50HZ | 3-380V 50Hz |
Dimensions(LxWxH) | 650x650x750mm | 800x850x800mm | 2000x850x900mm | 2900x2200x1305mm |
Weight | 60kg | 100kg | 150kg | 1000kg |
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
