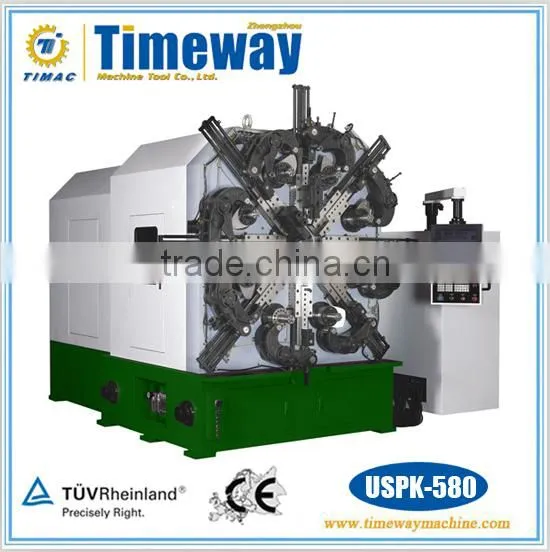

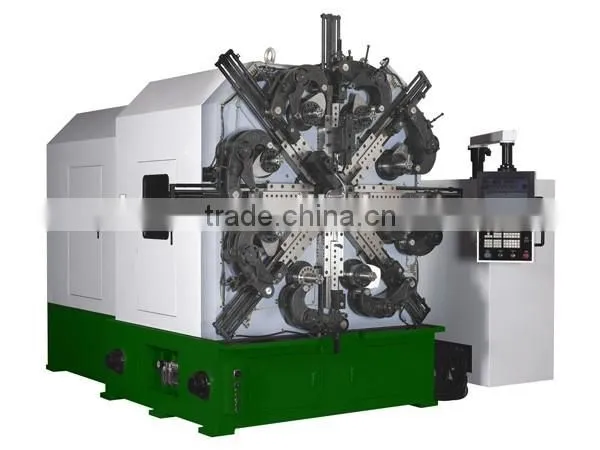

Universal CNC Cam Spring Former Machine
USPK-580
Technical Parameter
Model |
USPK-580 |
Axis Count |
4-5 axis |
Wire Size Range |
φ3.0-8.0mm |
Max Outside Diameter |
φ110mm |
Max Feeding Length |
Unlimited |
Max Feeding Speed |
75m/min |
Cam Setting Value |
±0.1°~±359.9° |
Cam Speed |
60rpm/min |
Wire Feeding Motor |
15kw |
Cam Motor |
7.5kw |
Rotary Quill Motor |
2.0kw |
Rotating Wire Motor |
7.5kw |
Spinner Motor |
1.5kw |
Dimensions(LxWxH) |
3000x1800x2000mm |
Wieight |
9000kg |
Power AC |
3-380VAC 50Hz |
Performance and Feature
- USPK-580 versatile wire forming machine combines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring and wire forms products through a simplified setup and programming procedure.
- USPK-580 versatile wire forming machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.

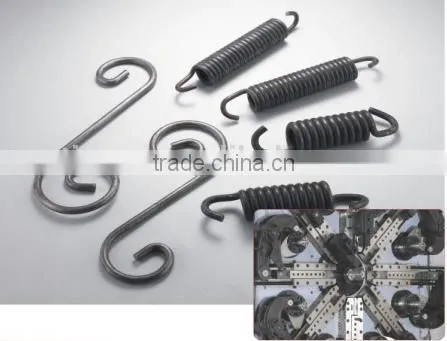

- USPK-580 universale wire forming machine is able to produce torsion springs, compression springs, tension / extension springs, abnormal springs,taper-spring, wire-forms and other related spring products.
- USPK-580 wire forming machine is designed for 4-6 axis , 4 axis is standard assignment (cam, wire feeding, wire rotary and rotary quill ) 2 servo spinner system are optional upon request.
