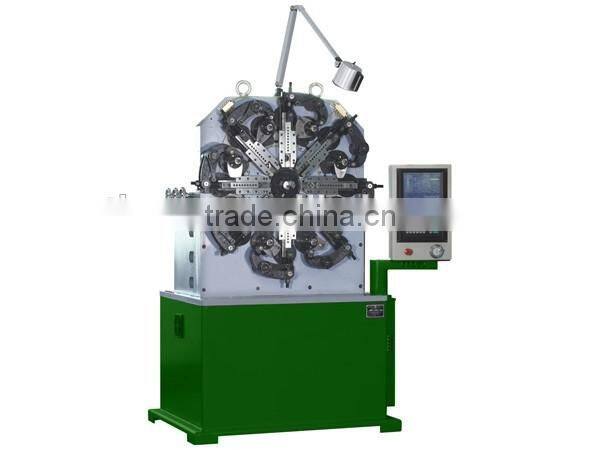

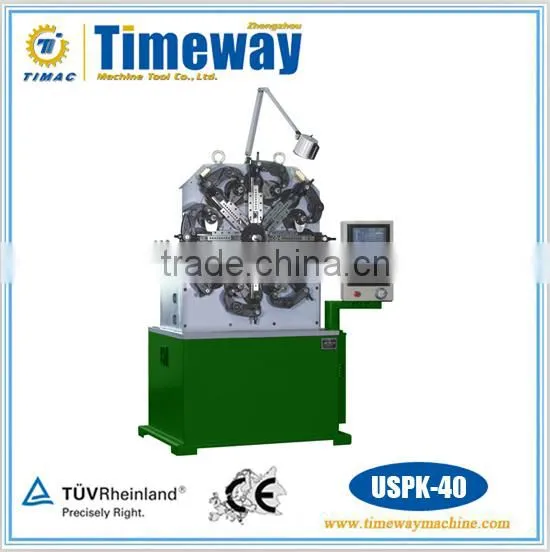

Universal CNC Cam Spring Former Machine
USPK-40
Technical Parameter
Model |
USPK-40 |
Axis Count |
3-4 axis |
Wire Size Range |
φ1.2-4.0mm |
Max Outside Diameter |
φ65mm |
Max Feeding Length |
Unlimited |
Max Feeding Speed |
110m/min |
Max Production Rate |
60pcs/min |
Cam Setting Value |
±0.1°~±359.9° |
Wire Feeding Servo Motor |
5.5kw |
Cam Servo Motor |
3.8kw |
Quill Servo Motor |
1.0kw |
Dimensions(LxWxH) |
1500x1900x1000mm |
Weight |
2000kg |
Power AC |
3-380VAC 50Hz |
Performance and Feature
- USPK-40 versatile wire forming machinecombines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
- USPK-40 CNC versatile wire forming machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
- USPK-40 CNC versatile wire forming machine is able to produce torsion springs, compression springs, tension / extension springs,abnormal springs, taper-spring, wire-forms and other related spring products.

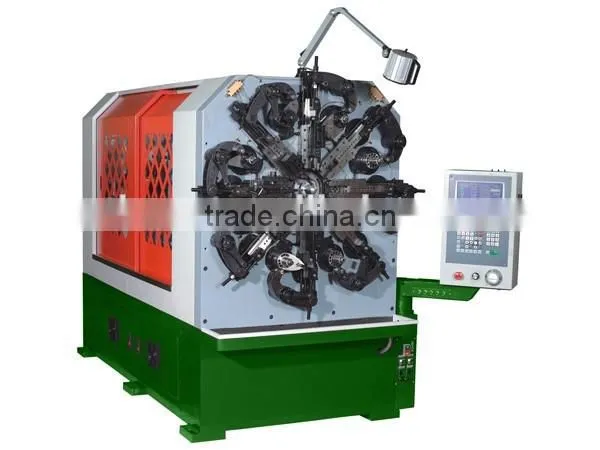

Other Spring Machine(Universal Spring Machine)

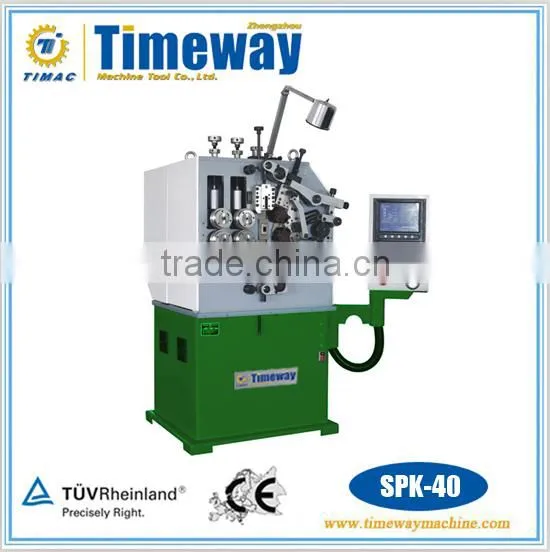

SPK-45 SPK-30
USPK-540 USPK-25

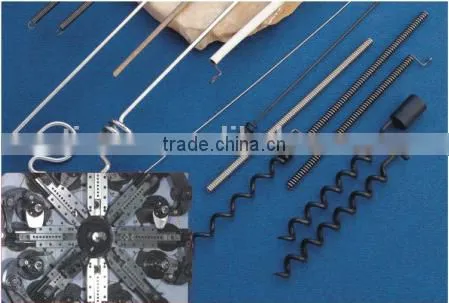

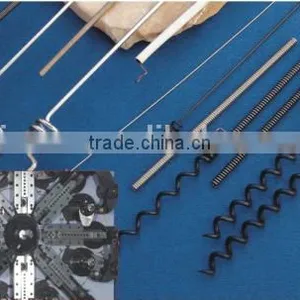

Workpiece Sample
Spring Tool

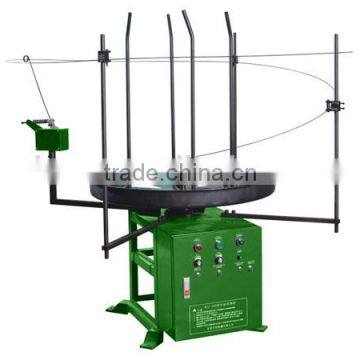

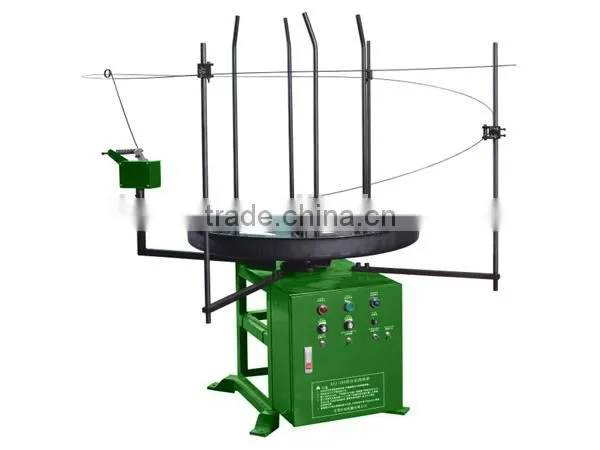

Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
