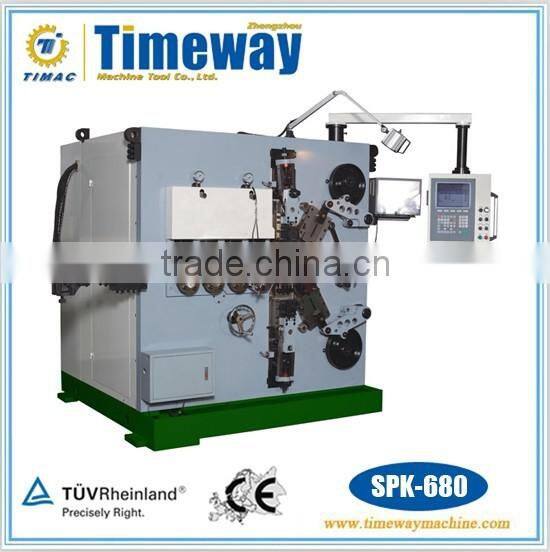

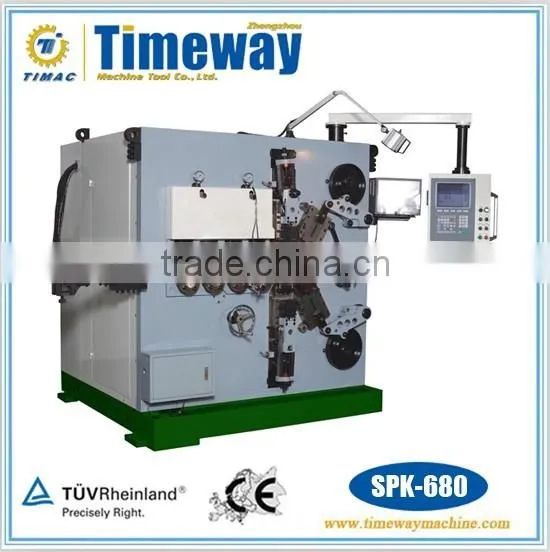

Six-axes Full-Automatic CNC Press Spring Machine
SPK-680
Technical Parameter
Model |
SPK-680 |
Axis Count |
6 axis |
Wire Size Range |
φ3.0-8.0mm |
Max Outside Diameter |
φ120mm |
Max Pitch Of Spring |
100mm |
Max Feeding Speed |
60m/min |
Model Spring Index |
4 |
Wire Feeding Wheel Count |
4 pairs |
Feeding Motor |
25.0kw |
Upper cutter motor |
7.0kw |
Under cutter motor |
7.0kw |
Cam motor |
3.8kwx2 |
Pitch motor |
2.7kw |
Dimension(LxWxH) |
1782x1783x1980mm |
Weight |
6500kg |
Power AC |
3Ph-380V AC |
Performance and Feature
- SPK-680 has six axis which can work in high speed single-step or synchronously.
- This is a machine especially for making compression spring.
- It is new in design, stable in operation. Precise in the products it make.
- The servo motor of it is imported from Japan and we introduce the most famous yitu computer control system from Taiwan.
- With function of graphics system, only need to input the relative parameters, the wire diameter, the number of turns and wire diameters etc., then the program will be generated automatically in the computer
- With fuction of camera spring length gauge, the spring will be amplifying and showed on the computer, it can help you to control the length accurate.
