Product Details
Brand Name: | TIMAC | Model Number: | SPK-660 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

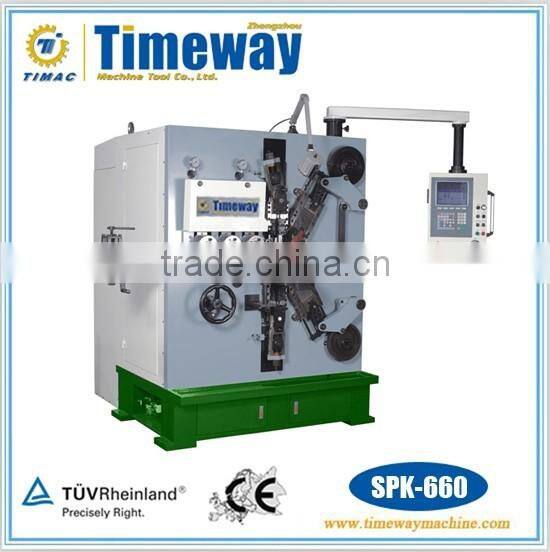

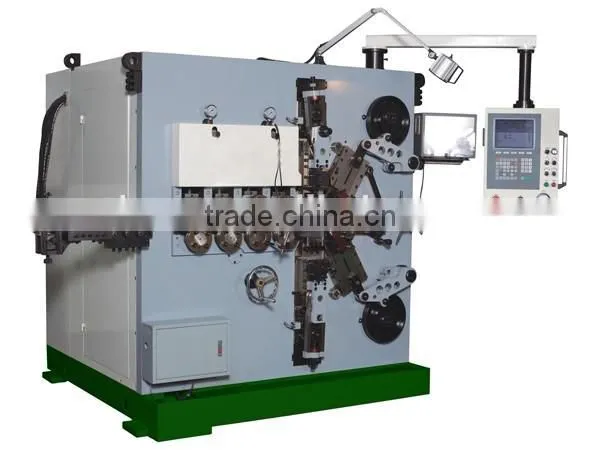

Multi-axis High Speed CNC Spring Coiler (Wire Bending Machine)
SPK-660
Technical Parameter
Model | SPK-660 |
Axis Count | 6 Axis |
Wire Size Range | φ2.5-6.0mm |
Max Outside Diameter | φ110mm |
Max Feeding Of Thread | 80mm |
Max Feeding Speed | 60m/min |
Model Spring Index | 3 |
Wire Feeding Wheel Count | 3 pairs |
Feeding Servo Motor | 15kw |
Upper Cutter Servo Motor | 5.5kw |
Under Cutter Servo Motor | 5.5kw |
Cam Servo Motor | 2.9kwx2 |
Pitch Servo Motor | 1.8kw |
Dimensions(LxWxH) | 1659x1455x2000mm |
Weight | 4800kg |
Power AC | 3-380V AC 50HZ |
Performance and Feature
- SPK-660 has six axis which can work in high speed single-step or synchronously.
- This is a machine especially for making compression spring.
- It is new in design, stable in operation. Precise in the products it make.
- The servo motor of it is imported from Japan and we introduce the most famous yitu computer control system from Taiwan.
- With function of graphics system, only need to input the relative parameters, the wire diameter, the number of turns and wire diameters etc., then the program will be generated automatically in the computer
- With fuction of camera spring length gauge, the spring will be amplifying and showed on the computer, it can help you to control the length accurate.
Other Spring Machine
SPK-30 SPK-40
SPK-660 SPK-820
Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
