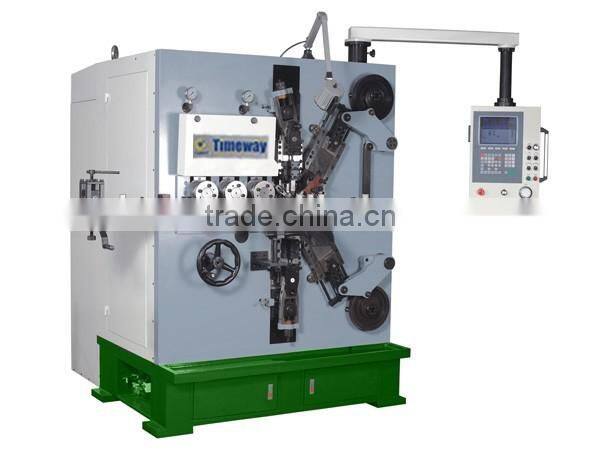

Six-axes Numeric Control Profile Roll-up Spring Machine

Name: Six-axes Numeric Control Profile Roll-up Spring Machine
Brand: TIMAC
SKU: 140797588
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 100,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

SPK-630

After-sales Service Provided:

Engineers available to service machinery overseas

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number SPK-630

After-sales Service Provided Engineers available to service machinery overseas

Six-axes Numeric Control Roll-up Wire Spring Machine

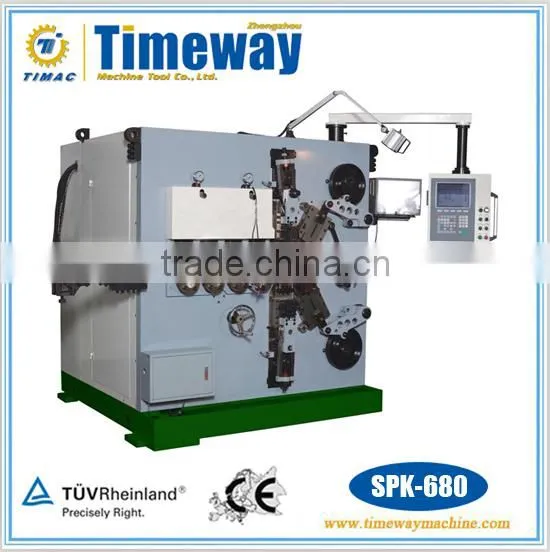

SPK-608 SPK-616 SPK-630 SPK-660 SPK-680

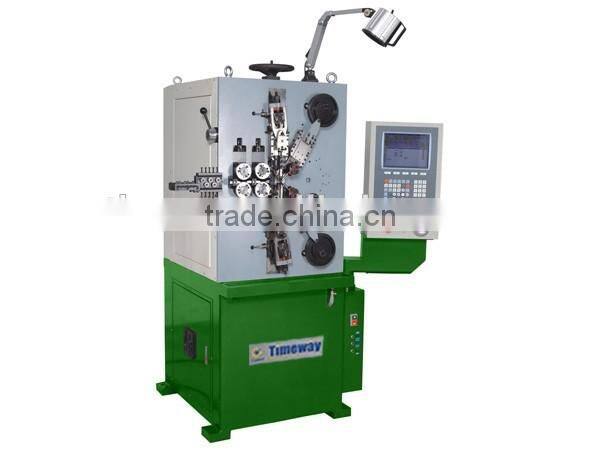

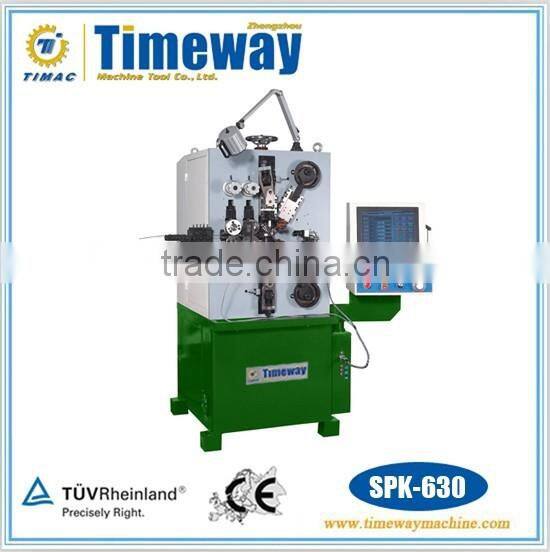

Main Outlook

Specifications List

Technical Parameter

Model	SPK-630	SPK-616	SPK-608
Axis Count	6 Axis	6 Axis	6 Axis
Wire Size Range	φ1-3.0mm	φ0.5-1.6mm	φ1-0.8mm
Max Outside Diameter	φ60mm	φ50mm	φ20mm
Max Feeding Of Thread	65mm	50mm	30mm
Max Feeding Speed	280m/min	225m/min	300m/min
Model Spring Index	3	3	3
Feeding Axes Count	2 pairs	2 pairs	2 pairs
Feeding Motor Yasukawa SGMGV-44A	4.4kw	1.8kw	1.0kw
Cutter Motor Yasukawa SGMGV-09V	0.85kwx2	0.6kwx2	0.4kwx2
Cam Motor YasukawaSGMJV-08A	0.75kwx2	0.4kwx2	0.2kwx2
Pitch Motor YasukawaSGMJV-08A	0.75kw	0.2kw	0.1kw
Dimensions(LxWxH)	960x1338x1782mm	830x732x1661mm	640x702x1531mm
Weight	1200kg	610kg	400kg
Power AC	3-380V AC	3-380V AC	3-380V AC

Product Description

Performance and Feature

This is a machine especially for making compression spring.
It is new in design, stable in operation. Precise in the products it make.
The servo motor of it is imported from Japan and we introduce the most famous yitu computer control system from Taiwan.
With function of graphics system, only need to input the relative parameters, the wire diameter, the number of turns and wire diameters etc., then the program will be generated automatically in the computer
With fuction of camera spring length gauge, the spring will be amplifying and showed on the computer, it can help you to control the length accurate

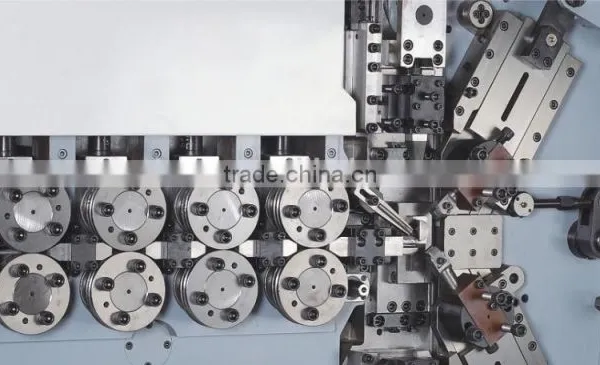

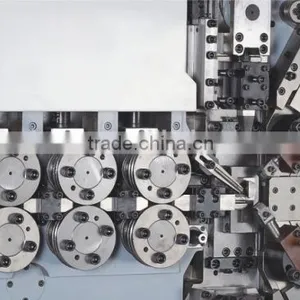

Detailed Images

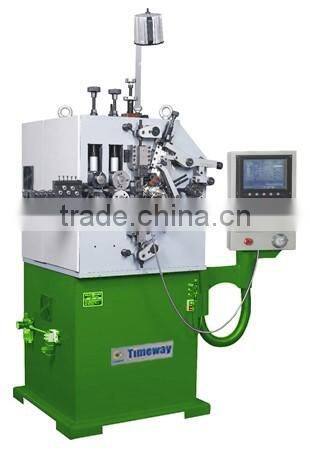

Other Spring Machine

SPK-45 SPK-30

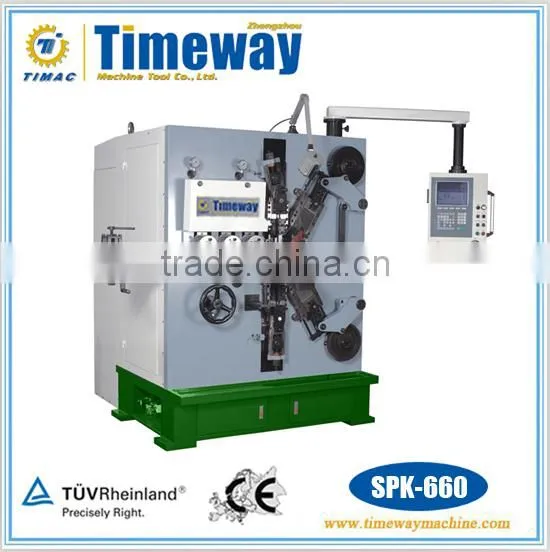

SPK-660 SPK-820

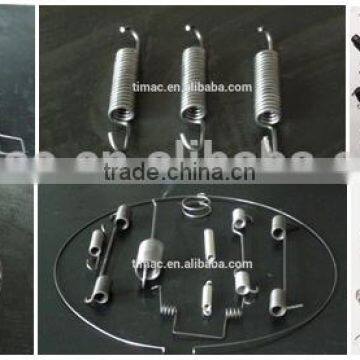

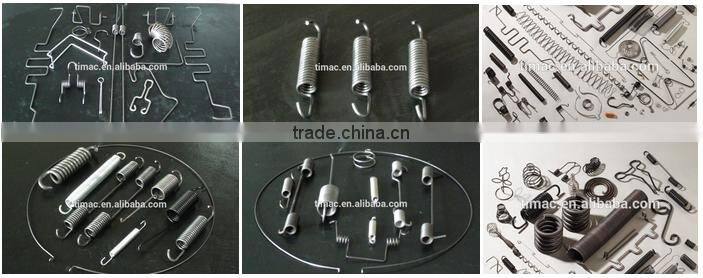

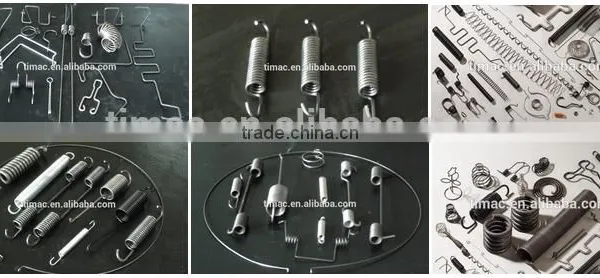

Workpiece Sample

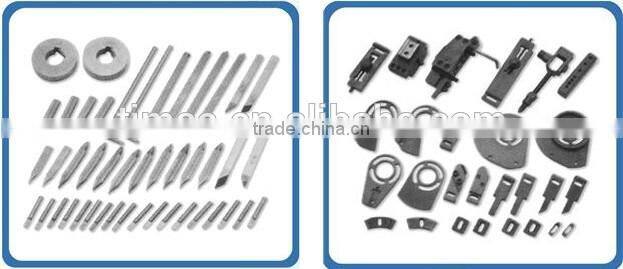

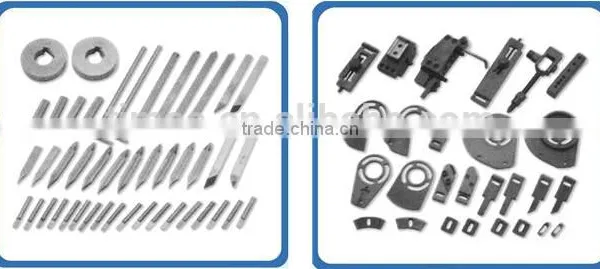

Spring Tool

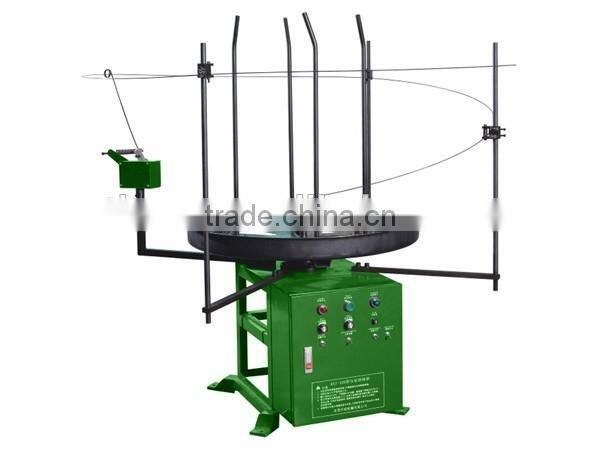

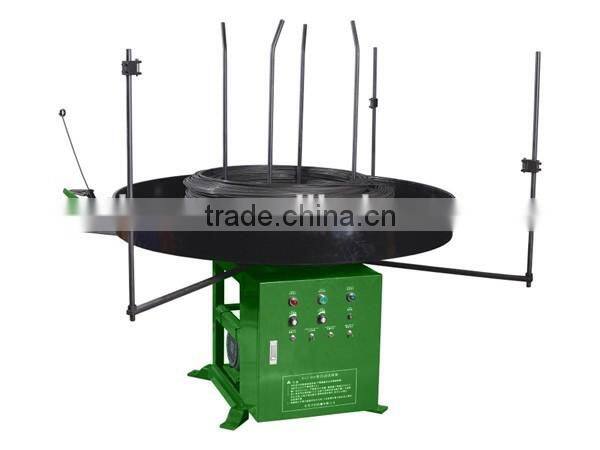

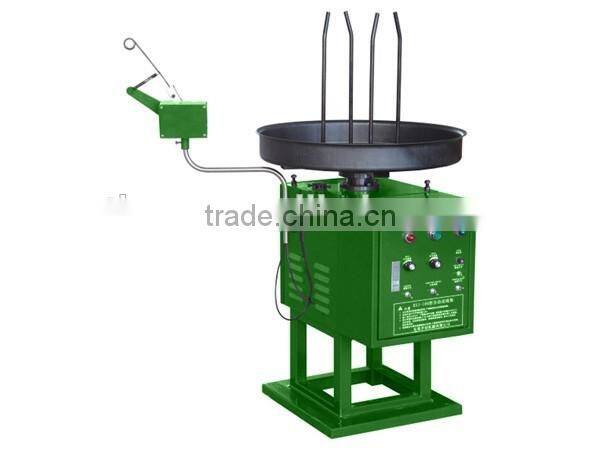

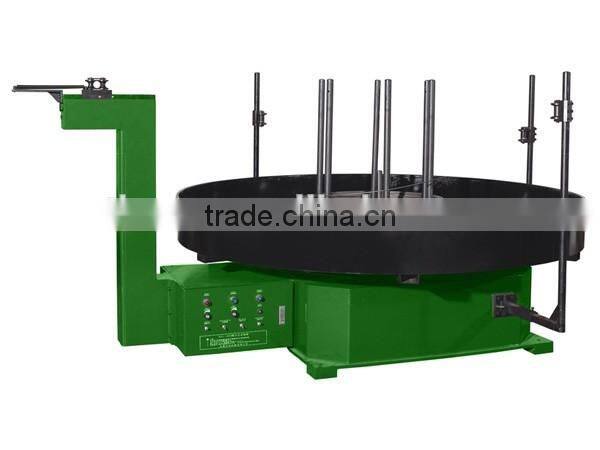

Automatic Wire Feeding Machine

FWA-1000 FWA-100

FWA-400 FWA-200

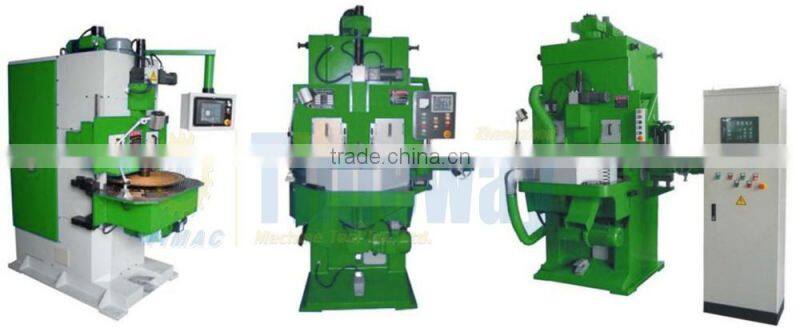

Spring Grinding Machine

MTH-180 MTH-250 MTH-380
