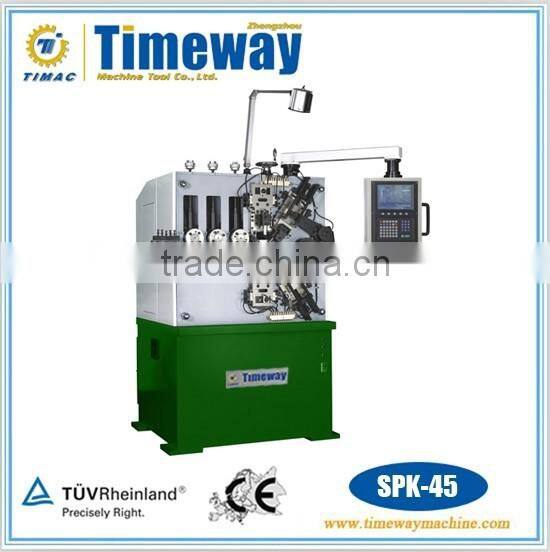

CNC Compression Wire Spring Machine
SPK-45
Technical Parameter
Model | SPK-45 |
Axis Count | 4-5 Axis |
Wire Size Range | φ1.6-4.5mm |
Max Outside Diameter | φ60mm |
Max Feeding Speed | 96m/min |
Wire Feeding Wheel Count | 3 pairs |
Model Spring Index | 3 |
Feeding Motor | 5.5kw |
Upper Cutter Motor | 2.7kw |
Under Cutter Motor | 2.7kw |
Cam Motor | 2.7kw |
Pitch Motor | 1.0kw |
Speed Ratio Of Wire Feeding | Ratio 1:8.766 |
Speed Ratio Of Cutter | Ratio 1:9 |
Speed Ratio Of Cam | Ratio 1:9 |
Dimension(LxWxH) | 1032x1048x1674mm |
Weight | 1900kg |
Power | 3-380V AC |
Performance and Feature
- SPK-45 has five axis which can work in high speed single-step or synchronously.
- Equipped with right or left-handed winding blade rest.
- The operator software is advanced, yet very easy to use, enabling machine setters to start producing springs in the shortest amount of time.
- Spring programs can be saved to the computers internal memory.
- Computer interface displayed in Chinese and English makes the operation easy. Make sample by hand wheel.
- The motor is inported from Japan(Sanyo), and the computer is from Taiwan.
Other Spring Machine
SPK-30 SPK-40
SPK-660 SPK-820

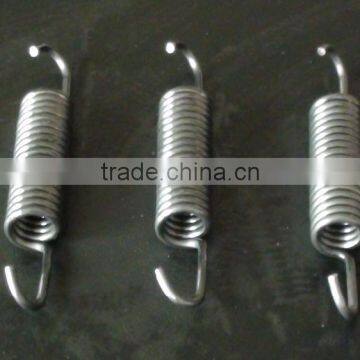

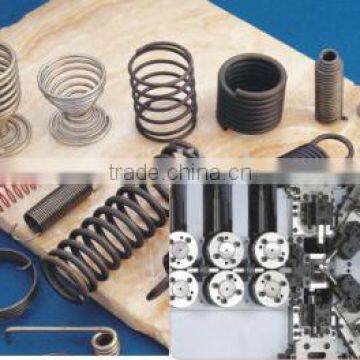

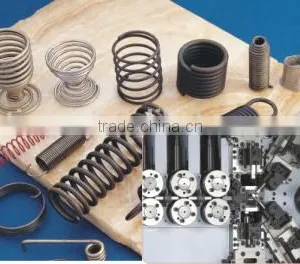

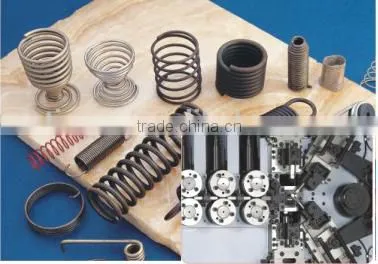

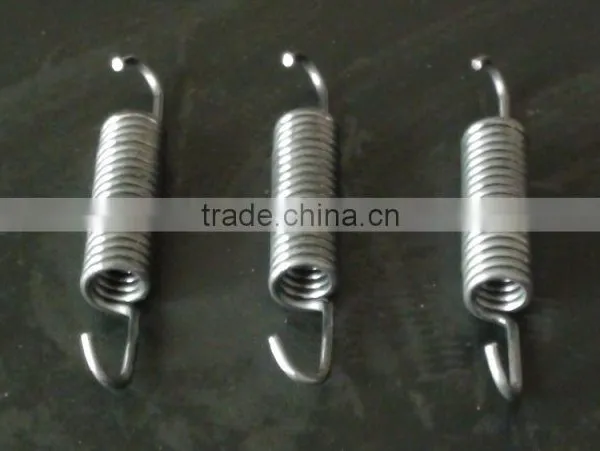

Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
