CNC Spring Coiling Machine

CNC Spring Coiling Machine photo-1

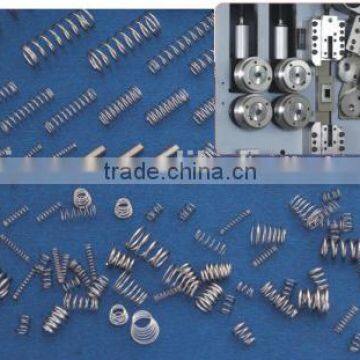

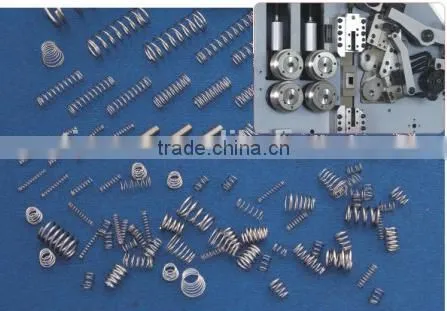

CNC Spring Coiling Machine photo-2
CNC Spring Coiling Machine photo-3
CNC Spring Coiling Machine photo-4
CNC Spring Coiling Machine photo-5
CNC Spring Coiling Machine photo-6
US$ 5,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
SPK-40
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name TIMAC
Model Number SPK-40
After-sales Service Provided Engineers available to service machinery overseas

CNC Wire Spring Coiling Machine

SPK-40

Main Outlook



CNC Spring Coiling Machine

Specifications List



Technical Parameter

Model

 SPK-40

 Axis Count

 2-3 Axis

 Wire Size Range

 φ1.2-4.0mm

 Max Outside Diameter

 φ65mm

 Max Feeding Speed

 127m/min

 Wire Feeding Wheel Count

 2 pairs

 Max Production Rate

 60pcs/min

 Max Feeding Length

 Unlimited

 Feeding Servo Motor

 5.5kw

 Cam Motor

 3.8kw

 Dimension(LxWxH)

 1685x1340x920mm

 Weight

 1600kg

 Power AC

 3-380VAC  50HZ

Product Description



Performance and Feature

  • SPK-40 has two or three axis which can work in high speed single-step or synchronously.
  • Equipped with right or left-handed winding blade rest.
  • The operator software is advanced, yet very easy to use, enabling machine setters to start producing springs in the shortest amount of time.
  • Spring programs can be saved to the computers internal memory.
  • Computer interface displayed in Chinese and English makes the operation easy. Make sample by hand wheel.
  • The motor is inported from Japan(Sanyo), and the computer is from Taiwan.
Detailed Images



Other Spring Machine

CNC Spring Coiling MachineCNC Spring Coiling Machine

                                      SPK-45                                                                    SPK-30



CNC Spring Coiling Machine  CNC Spring Coiling Machine

                                                    SPK-660                                                                 SPK-820



Workpiece Sample

CNC Spring Coiling Machine

Spring Tool

CNC Spring Coiling Machine



Automatic Wire Feeding Machine

CNC Spring Coiling Machine  CNC Spring Coiling Machine

                                        FWA-1000                                                                                FWA-100

CNC Spring Coiling Machine  CNC Spring Coiling Machine

                                       FWA-400                                                                                    FWA-200



Spring Grinding Machine

CNC Spring Coiling Machine

                MTH-180                                          MTH-250                                             MTH-380
