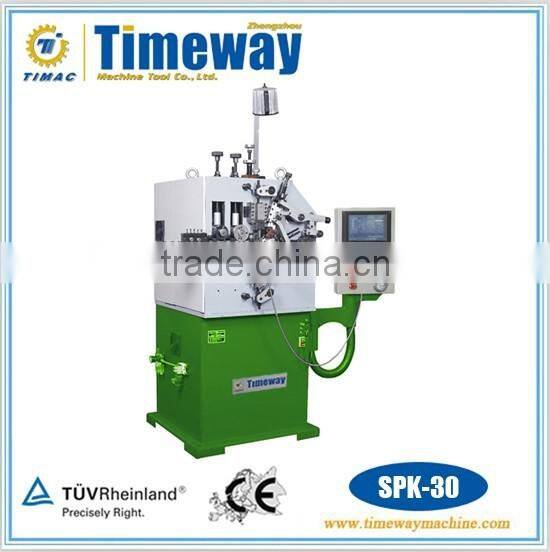

CNC Wire Spring Machine
SPK-30
Technical Parameter
Model |
SPK-30 |
Axis Count |
2-3 Axis |
Wire Size Range |
φ0.8-3.0mm |
Max Outside Diameter |
φ60mm |
Max Feeding Length |
Unlimited |
Max Wire Feed Speed |
120m/min |
Feeding Axes Count |
2 pairs |
Max Production Rate |
150m/mim |
Feeding Servo Motor |
2.7kw |
Cam Motor |
2.7kw |
Dimensions(LxWxH) |
710x720x1460mm |
Weight |
1200kg |
Power AC |
3-380VAC 50HZ |
Performance and Feature
- SPK-30 has three axis which can work in high speed single-step or synchronously.
- Equipped with right or left-handed winding blade rest.
- The operator software is advanced, yet very easy to use, enabling machine setters start producing springs in the shortest amount of time.
- Spring programs can be saved to the computers internal memory.
- Computer interface displayed in Chinese and English makes the operation easy.
- With function of spring length gauge, will help to control the spring length accurately.
Other Spring Machine
SPK-45 SPK-40
SPK-660 SPK-820

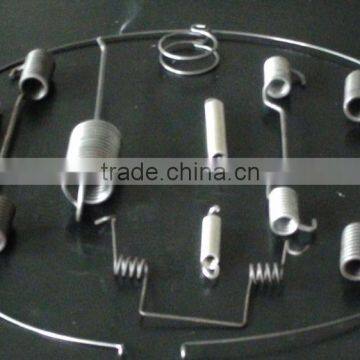

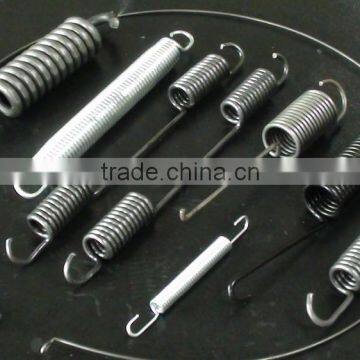

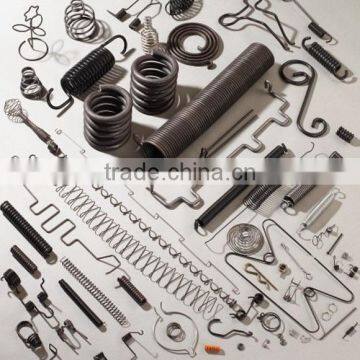

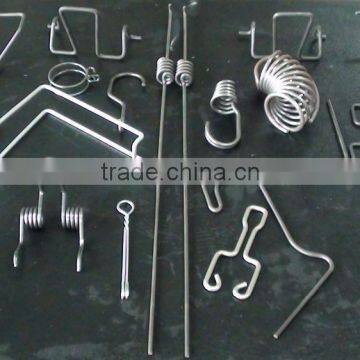

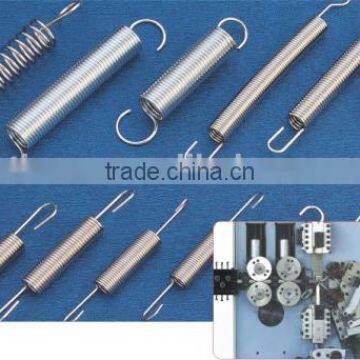

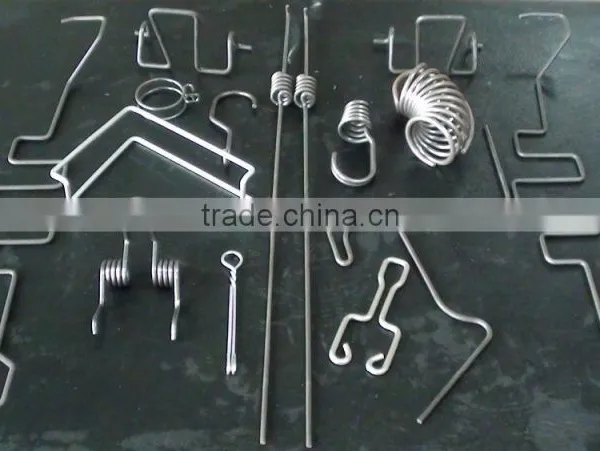

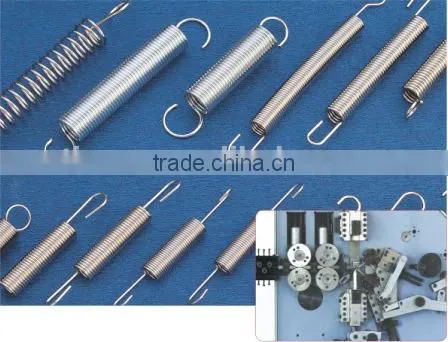

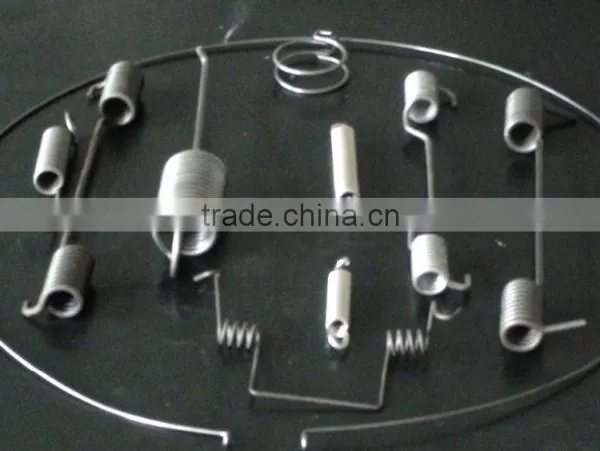

Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
