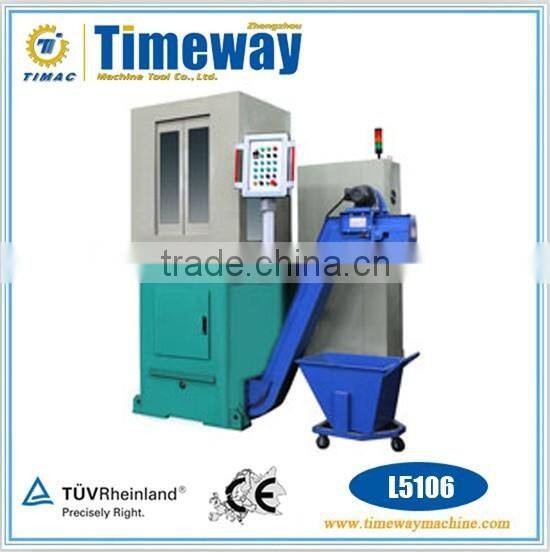

Small Tonnage Vertical Broaching Machine
L5104 L5106
Machine Summary
The machine is applicable to machining inner holes of various types of parts, such as round holes, splined holes, holes with single key, involute profile and holes with internal spline. The machine is suitable for volume production of small and medium-sized parted and components, especially for machining the inner single keyway of small parts.
Technical Parameters
Specifications |
Units |
L5104 |
L5106 |
Number of broaching stations |
|
1 |
1 |
Rated pulling force |
KN |
40 |
60 |
Max. stroke length |
mm |
600 |
800 |
Length range of broaching tool |
mm |
400-650 |
500-850 |
Hole diameter of worktable |
mm |
Φ100 |
Φ120 |
Max. outer diameter of workpiece |
mm |
Φ200 |
Φ260 |
Working speed |
m/min |
3-8 |
3-8 |
Returning speed |
m/min |
2-20 |
2-20 |
Machine net weight |
kg |
2500 |
3200 |
Standard workpiece verticality of hole centerline and base after broaching |
mm |
≤0.04/200 |
≤0.04/200 |

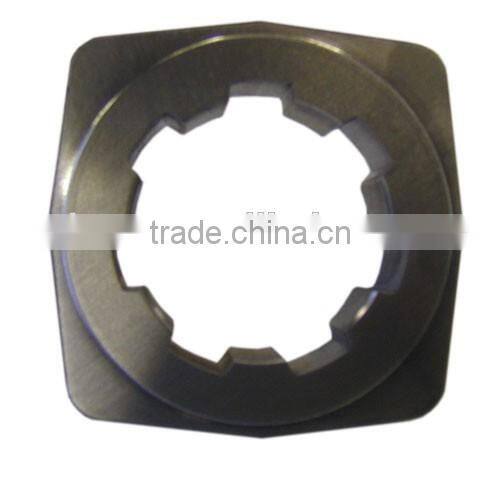

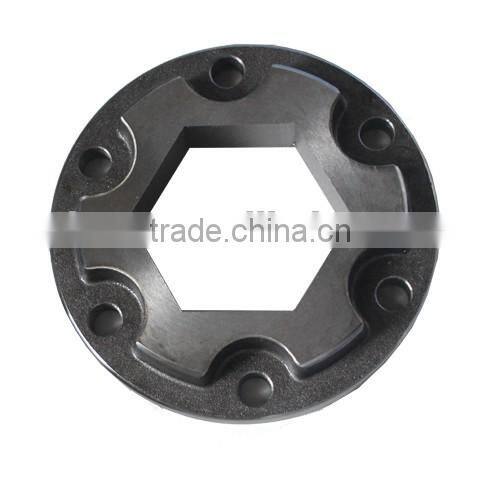

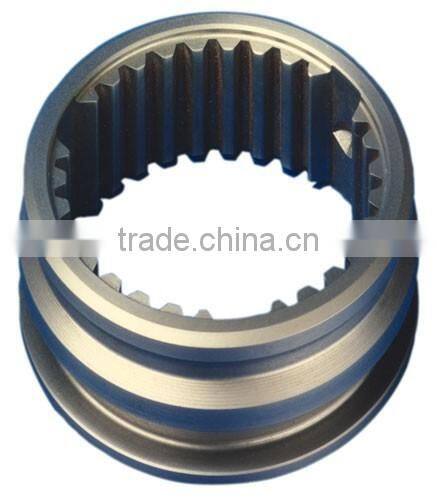

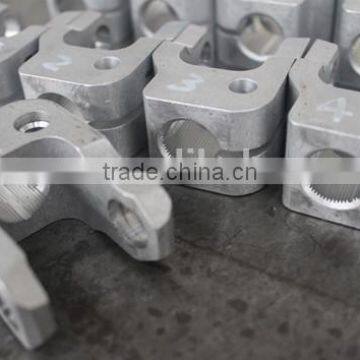

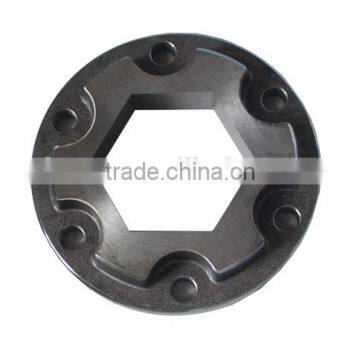

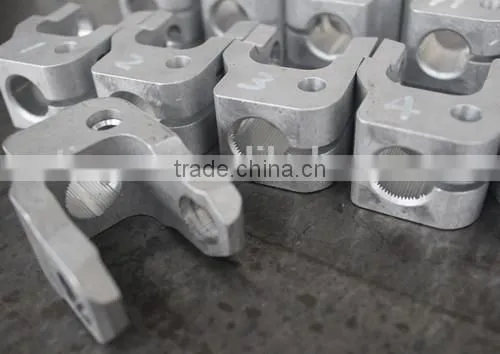

Workpieces Samples
