Large Force Vertical Internal Broacher (Internal Broaching Machine)

Name: Large Force Vertical Internal Broacher (Internal Broaching Machine)
Brand: TIMAC
SKU: 140797576
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

L5120

Condition:

New

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number L5120

Condition New

After-sales Service Provided Engineers available to service machinery overseas

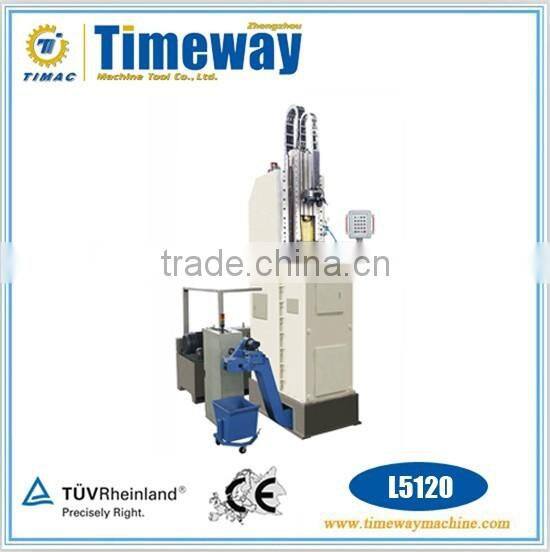

Large Force Vertical Internal Broaching Machine

L5110 L5120 L5140

Main Outlook

Product Description

Machine Applications

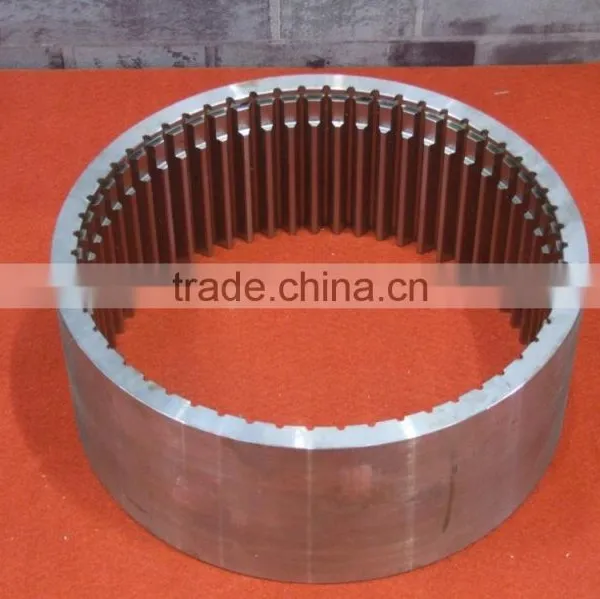

The machine is applicable to machining inner holes of various types of parts, such as round holes, splined holes, holes with single key, involute profile and holes with internal spline.

Performance and Features

Broaching tool is escorted during the whole broaching stroke.
Driven by hydraulic power, the machine with an overload safety device works steadily and enables stepless speed change.
With the adoption of PLC program and no touch switch, the machine has three operation modes: automatic cycling, semi-automatic cycling, and segmented cycling. And main actions can be jogged under adjustment modes.
The machine is equipped with an adjustable automatic centralized lubrication device.

Specifications List

Technical Parameters

Specifications	Units	L5110	L5120	L5140
Number of broaching stations		1	1	1
Rated pulling force	KN	100	200	400
Max. stroke length	mm	1250	1600	2000
Length range of broaching tool	mm	850-1300	830-1650	1300-2000
Hole diameter of worktable	mm	Φ150	Φ200	Φ250
Max. outer diameter of workpiece	mm	Φ500	Φ550	Φ580
Working speed	m/min	3-8	2-8	3-7
Returning speed	m/min	3-16	3-15	3-15
Machine total power	Kw	20.7	34.5	52.7
Machine floor space(LWH)	mm	329221303785	399523504850	381028506640
Machine net weight	kg	9000	12000	23000
Standard workpiece verticality of hole centerline and base after broaching	mm	≤0.06/200	≤0.06/200	≤0.06/200
