Double Oil-Cylinder CNC Internal Pull Broaching Machine

Name: Double Oil-Cylinder CNC Internal Pull Broaching Machine
Brand: TIMAC
SKU: 140797568
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

LVK-2016S

Condition:

New

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number LVK-2016S

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Double Oil-Cylinder CNC Internal Pull Broaching Machine

LVK-1012S LVK-2016S LVK-4020S LVK-5020S

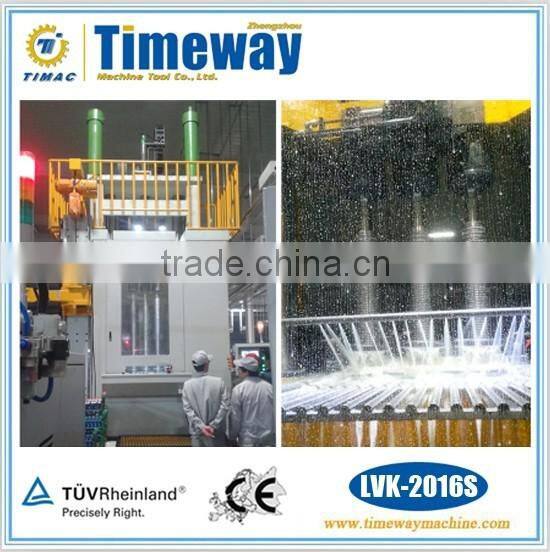

Main Outlook

Product Description

Performance and Features

Designed as per advanced international technology standards, the machine meets the requirements of high-power cutting technology and stable cutting technology under mutiple vibration sources. Its structure and kinematical mechanics conform with the principle of broaching engineering mechanics, which increases the service life of cutting tool. With high technology standard of accuracy, safety, function, etc, the machine can be used efficiently.
The machine uses a method of advanced mechanical design. As main bearing parts of the machine is highly symmetrical in structure, the acting force is even and symmetrical during working process and there is no bias torque, which minimize the effect of deformation and wear extent of main force bearing components on the radial and axial accuracy of workpiece. Thus, the machine has high accuracy stability and long service life.
The machine has mature system, technology and management function. With ground installation and humanism operation, the machine is numerical controlled, autonomical and intelligent.
The machine has high accuracy, high quality, high stability and high efficiency.
Equipped with suspension type automatical tool changer. Workpiece can be loaded and unloaded automatically twice. Ground type installation.

Machine Applications

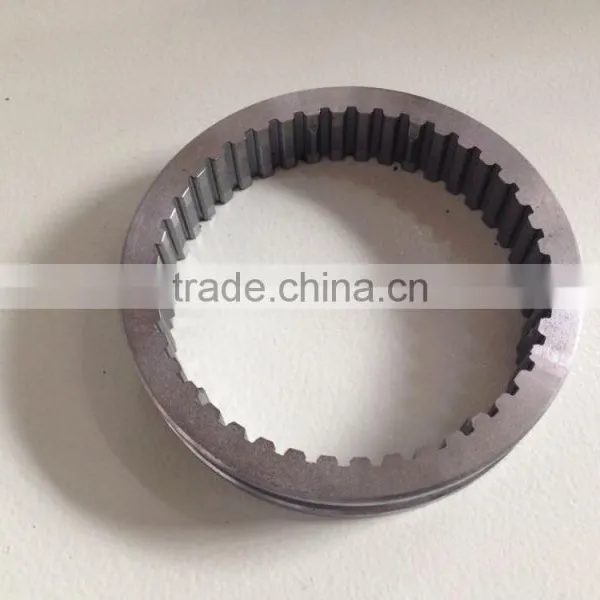

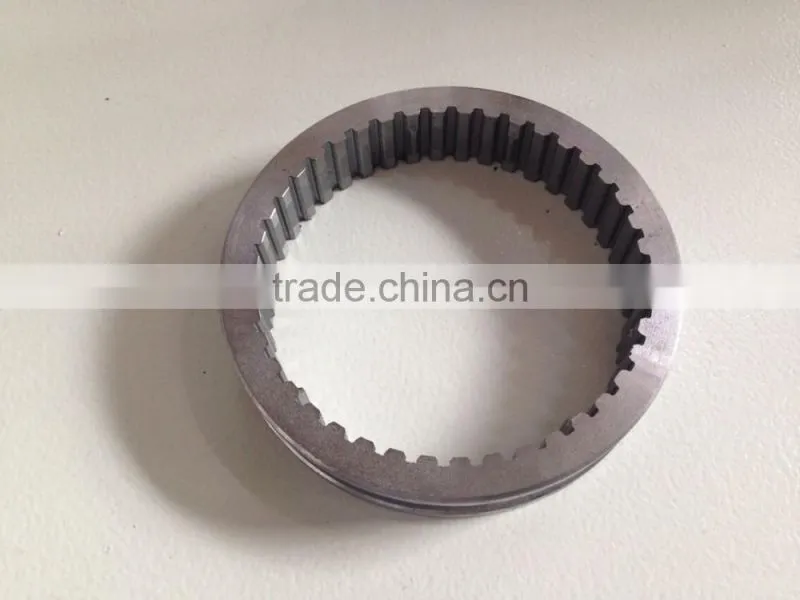

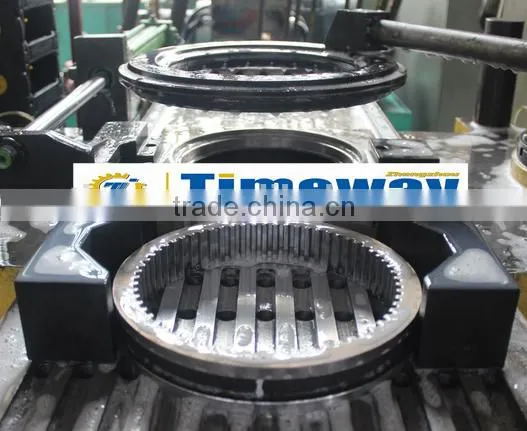

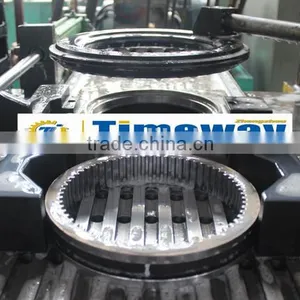

The machine is applicable to machining various types of internal spline, internal gears, round holes, square holes, polygonal holes and other irregularly-shaped holes. The machine is suiable for parts with the requirements of mass production and high accuracy, and can be used in automatical production line.

Specifications List

Technical Parameters

Specifications	Units	LVK-1012S	LVK-2016S	LVK4020S	LVK5020S
Number of broaching stations		1-2	1-3	1-3	1-3
Rated pulling force	KN	100	200	400	500
Max. stroke length	mm	1250	1600	2000	1800/2000
Length range of broaching tool	mm	750-1400	1000-1800	1200-2200	1000-2000/1200-2000
Hole diameter of worktable	mm	Φ200	Φ160/Φ120/Φ100	Φ200/Φ140/Φ120	Φ240/Φ160/Φ140
Max. outer diameter of workpiece	mm	Φ200	Φ300	Φ350	Φ400
Working speed	m/min	2-8	2-7	2-6	2-6
Returning speed	m/min	2-20	2-20	2-16	2-16
Machine total power	Kw	30	45	70	80
Machine floor space	mm	340033004300	420033505300	450040006300	480038506300
Machine net weight	kg	10000	20000	30000	40000
Standard workpiece verticality of hole centerline and base after broaching	mm	≤0.04/200	≤0.04/200	≤0.04/200	≤0.04/200
