Horizontal Hydraulic Internal Broaching Machine

Name: Horizontal Hydraulic Internal Broaching Machine
Brand: TIMAC
SKU: 140797572
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

LH-4020

Condition:

New

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number LH-4020

Condition New

After-sales Service Provided Engineers available to service machinery overseas

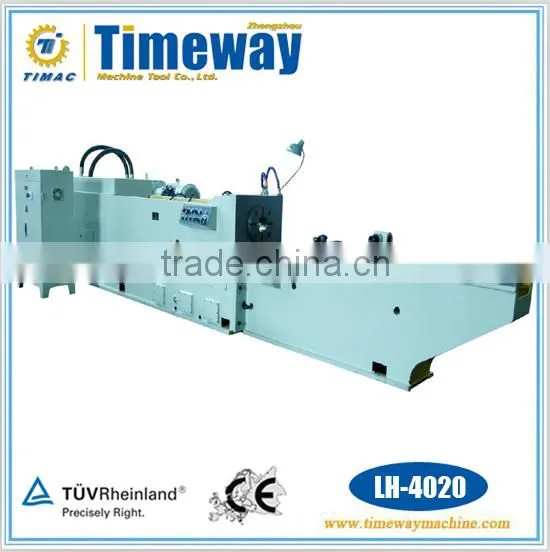

Horizontal Hydraulic Internal Broaching Machine

LH-1012 LH-2016 LH-4020 LH-6020 LH-8020

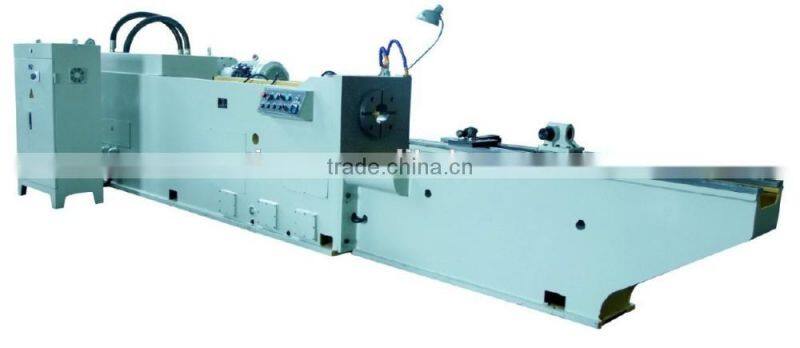

Main Outlook

Product Description

Machine Applications

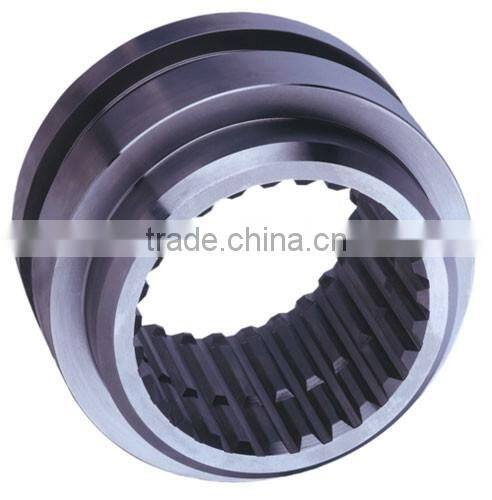

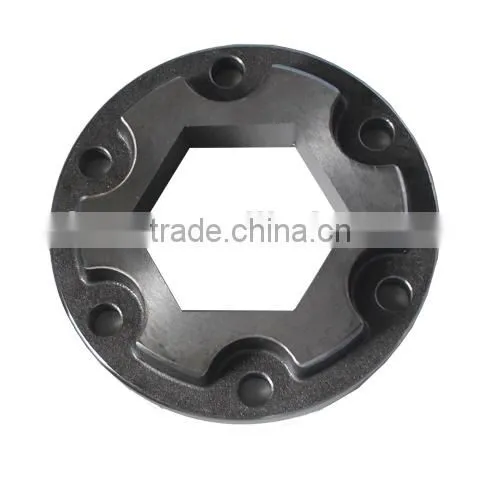

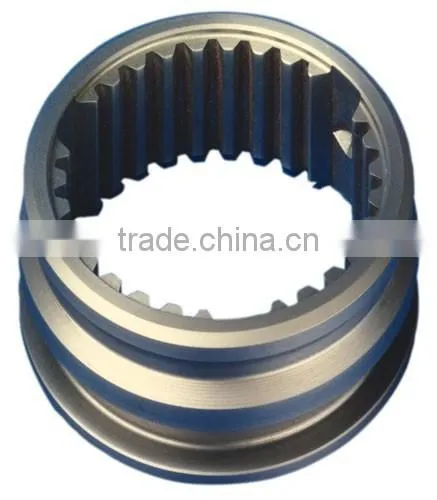

The machine is applicable to machining inner holes of various types of parts, such as round holes, splined holes, holes with single key, involute profile and holes with internal spline.

Performance and Features

Driven by hydraulic power, the machine with an overload safety device works steadily and enables stepless speed change.
Broaching tool is fully escorted during the whole stroke.
The machine is equipped with high-pressure coolant chip flushing unit.
The machine has three operating modes: automatic cycling, semi-automatic cycling, and segmented cycling.
The hydraulic oil tank can be equipped with a set of fully functional oil cooler, which make the broaching machine be able to work under normal oil temperature for long time.
The machine adopts centralization lubrication device and automatical chip removing device.

Specifications List

Technical Parameters

Specifications	Units	LH-1012	LH-2016	LH-4020	LH-6020	LH-8020
Number of broaching stations		1	1	1	1	1
Rated pulling force	KN	100	200	400	600	800
Max. stroke length	mm	1250	1600	2000	2000	2000
Length range of broaching tool	mm	600-1300	600-1650	600-2050	600-2050	600-2050
Hole diameter of worktable	mm	Φ100	Φ130	Φ150	Φ250	Φ250
Max. outer diameter of workpiece	mm	Φ570	Φ620	Φ640	Φ680	Φ680
Working speed	m/min	2-11	1.5-11	1.5-7	1-6	1-4.2
Returning speed	m/min	14-25	7-20	12-20	5-14	5-12
Machine total power	Kw	15	22	37	55	75
Machine floor space(LWH)	mm	56201720 1350	68301820 1440	86402055 1375	84603000 1454	84603000 1454
Machine net weight	kg	4800	5900	10500	12000	12500
Standard workpiece verticality of hole centerline and base after broaching	mm	≤0.06/200	≤0.06/200	≤0.06/200	≤0.06/200	≤0.06/200
