Double Oil-Cylinder Vertical Internal Push CNC Broaching Machine

Name: Double Oil-Cylinder Vertical Internal Push CNC Broaching Machine
Brand: TIMAC
SKU: 140797570
Availability: InStock

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

LVK-2016

Condition:

New

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number LVK-2016

Condition New

After-sales Service Provided Engineers available to service machinery overseas

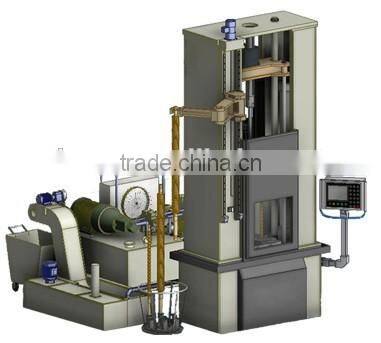

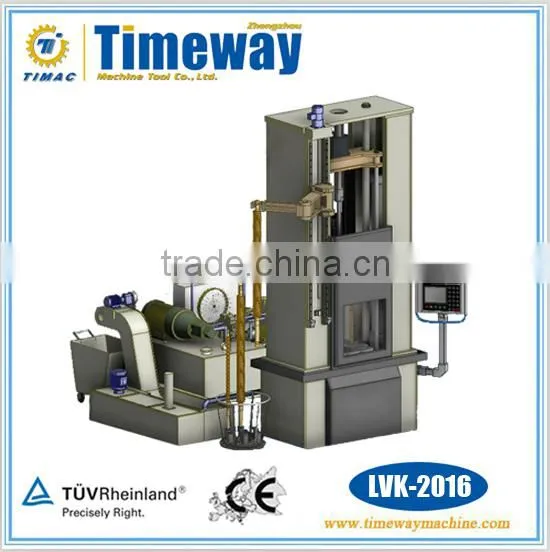

Double Oil-Cylinder Vertical Internal Push CNC Broaching Machine

LVK-2016 LVK-4020 LVK-6020 LVK-8020 LVK10020

Main Outlook

Summary

Machine Summary

Designed as per advanced international technology standards, the machine meets the requirements of high-power cutting technology and stable cutting technology under mutiple vibration sources.
Its structure and kinematical mechanics conform with the principle of broaching engineering mechanics, which increases the service life of cutting tool.
With high technology standard of accuracy, safety, function, etc. the machine can be used efficiently.

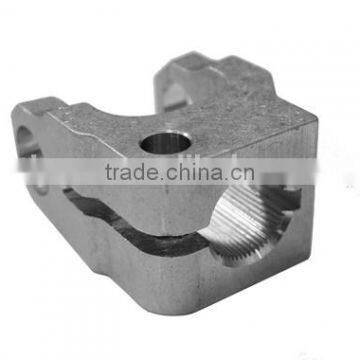

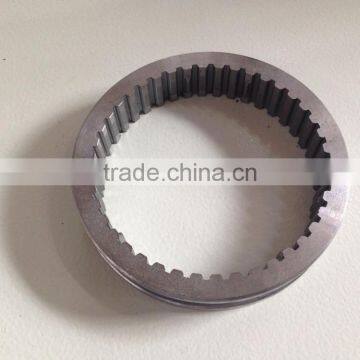

With core technology of double-cylinder synchronization, the machine is applicable to machining through holes with longer hole depth, internal spline and various types of internal shaping straight slots.

Product Description

Features

Specifications List

Technical Parameters

Specifications	Units	LVK-2016	LVK-4020	LVK-6020	LVK-8020	LVK-10020
Number of broaching stations		1-3	1-3	1	1	1
Rated pulling force	KN	200	400	600	800	1000
Max. stroke length	mm	1600	2000	2000	2000	2000
Length range of broaching tool	mm	900~1700	1100~2100	1100~2100	1200~2200	1200~2200
Hole diameter of worktable	mm	Φ180/Φ150/Φ120	Φ200/Φ180/Φ150	Φ220	Φ250	Φ250
Max. outer diameter of workpiece	mm	Φ400/Φ250/Φ160	Φ460/Φ300/Φ180	Φ520	Φ600	Φ700
Working speed	m/min	2-7	2-6	2-6	2-6	2-6
Returning speed	m/min	4-16	4-16	4-16	4-12	4-12
Machine total power	kw	28	55	72	90	115
Machine floor space(LWH)	mm	38003200 6000	40003400 7500	42003600 7700	44003800 8000	46004000 8600
Machine net weight	kg	22000	32000	40000	44000	48000
Standard workpiece verticality of hole centerline and base after broaching	mm	≤0.04/200	≤0.04/200	≤0.04/200	≤0.04/200	≤0.04/200
