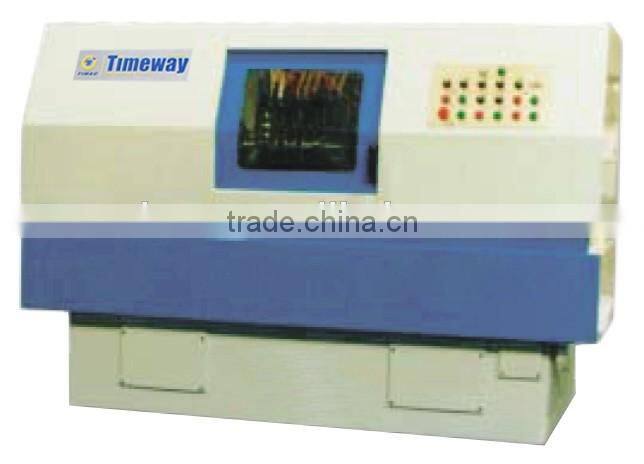

High Precision Abrasive Belt Polishing Machine for Cam Shaft

Name: High Precision Abrasive Belt Polishing Machine for Cam Shaft
Brand: TIMAC
SKU: 140797446
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 1,000 - 20,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

P-180

After-sales Service Provided:

Engineers available to service machinery overseas

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number P-180

After-sales Service Provided Engineers available to service machinery overseas

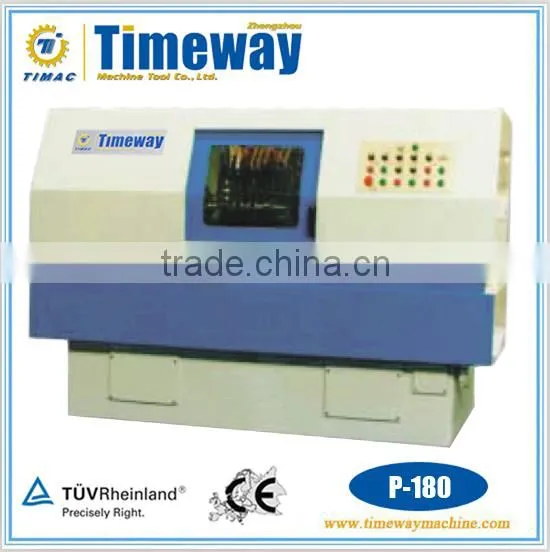

High Precision Cam Shaft Abrasive Belt Polishing Machine

P-180 P-240 PK-180 PK-240

Main Outlook

Summary

Machine Summary

Based on years experience over designing, manufacturing abrasive belt polishing machines and absorbed international advanced technology, P-180 and P-240 crankshaft abrasive belt polishing machine is a kind of machine tool developed exclusively for polishing excircle surface of crankshaft, on basis of which and in accordance with market requirements, PK-180 and PK-240 CNC crankshaft abrasive belt polishing machine are developed with new structure, advanced technology and perfect perfromance.

Main Performances

Feature and Performance

With a rational layout and integral protective cover, the machine tool is convenient for maintenance and in conformity with human engineering requirements.
For the work head, the rotation of spindle and axial vibration are controlled by two variable frequency motors respectively. With the aid of frequency conversion control system, the range of speeds and optimum vibration frequency can be selected according to the material and size of workpiece, thus to meet the requirement of improving surface roughness by means of polishing process.
The forward and backward movement of tailstock spindle is controlled by hydraulic system.
The feeding of abrasive belt winding mechanism is adjustable according to workpiece processing requirement, and the rotating direction of workpiece is set as forward and backward in order to improve machining quality. The surface roughness can be improved over one grade after a working cycle.
The major component of electrical system is provided by Omron and fuji electric.
The hydraulic system adopts the products of Northman.(Also can apply other brand of products in accordance with the requirement of users).
Being easy and simple for operation, the machine tool features reliable performance and is suitable for processing multiple kinds of camshafts with different diameters and lengths.

Specifications List

Technical Parameter

Specifications	Units	P-180/PK-180 P-240/PK-240
Specifications	Units	*750	*1000	*1500
Maximum diameter of workpiece	mm	Φ180	Φ240	Φ240
Maximum crank radius	mm	R50	R75	R75
Maximum length of workpiece	mm	750	1000	1500
Height of center	mm	340	360	360
Distance between centers	mm	750	1000	1500
Speed of spindle(stepless)	rpm	20-200	15-150	15-150
Vibration frequency(stepless)	HZ	0-180	0-85	0-85
Amplitude of vibration(adjustable)	mm	0-4	0-4	0-4
Total motor power	kw	11	17	17
Overall dimensions of the machine tool(LWH)	mm	280016001900	330023002000	360023002000
Net weight	kg	3000	4000	4500
