CNC Economical-type Transverse(Face/End) Cylindrical Grinder Machine
US$ 1,000 - 17,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cylindrical Grinding Machine
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
External Diameter 200mm Economical CNC (Universal) Cylindrical Grinder MachineUS$ 1,000 - 20,000MOQ: 1 Set -
Small Economical Type CNC External Cylindrical Grinder MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
CNC High-speed Transverse Cylindrical GrinderUS$ 1,000 - 30,000MOQ: 1 Set
-
Economical-type High Efficiency CNC (Universal) Cylindrical Grinding Machine (Horizontal Cylindrical Grinder)US$ 1,000 - 40,000MOQ: 1 Set
-
Economical Full Automatic CNC (Universal) Cylindrical Grinding MachineUS$ 1,000 - 25,000MOQ: 1 Set
Condition
New
Type
Cylindrical Grinding Machine
CNC or Not
CNC
Max. Grinding Diameter
200mm
Max. Grinding Length
300mm
Brand Name
TIMAC
Model Number
GKDE-200H*300
Voltage
380V 50Hz
Power(W)
10.825kw
Dimension(L*W*H)
2500*1600*1500mm
Weight
2500kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
CNC Economical-type Transverse Cylindrical Grinding Machine
GKD-200H GKDE-200H

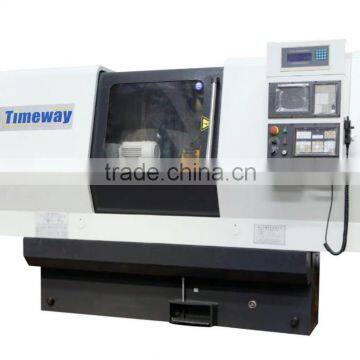

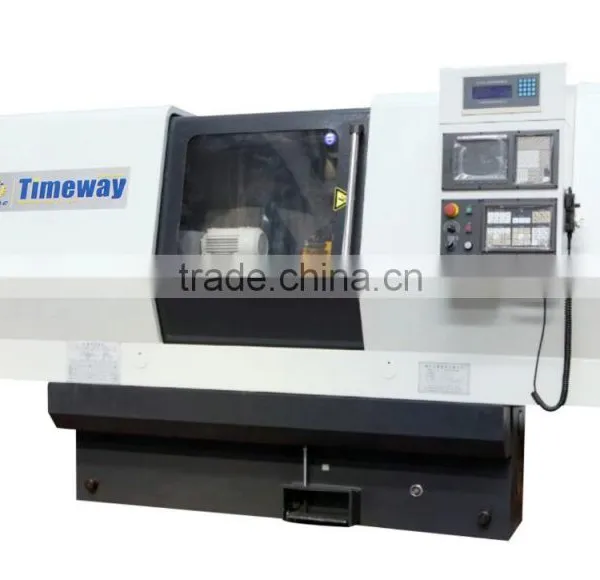

Main Outlook
Main Performances
Main Functions and Features
1, This machine is mainly used for grinding the face and culindrical shaft parts, simple structure, easy to operate, with high cost performance.
2. All plastic coated guide rail enhance its vibration resistance and sensitivity.
3. Wheel spindle bearing is NSK precision angular contact bearings, also be configured hybrid spindle according to the user.
4. C2-level precision screw used in all imported screw.
5. The machine can be equipped with radial and axial measurement instrument according to the user.
Main Accessories
- Wheel periphery dresser
- Wheel hub
- Balancing arbor
- Open-type steady rest
- Wheel extractor
- Magnetic separator
Extra Accessories
- Wheel balancing
- Surface measuring instrument
- Diameter measuring instrument
- Hybrid wheel spindle
Specifications List
Technical Parameters
| Specifications | Units | GKD-200H*300 GKDE-200H*300 | GKD-200H*500 GKDE-200H*500 |
| Dia. to be ground | mm | Φ8-Φ200 | Φ8-Φ200 |
| Max. length to be ground | mm | 300 | 500 |
| Center height | mm | 135 | 135 |
| Max. workpiece weight | kg | 30 | 30 |
| Wheel peripheral velocity | m/s | 35 | 35 |
| Max. travel of worktable | mm | 500 | 800 |
| Swivel range of worktable | ° | -5- +9 | -3- +7 |
| External wheel size | mm | Φ400*50*Φ203 | |
| Workhead and tailstock center | Morse No.4 | Morse No.4 | |
| Roundness | um | 1.5 | 1.5 |
| Uniformity of dia. in longitudinal section | um | 4 | 4 |
| Surface roughness(O.D/Face) | um | Ra0.25/0.63 | Ra0.25/0.63 |
| Machine dimensions(L*W*H) | mm | 2500*1600*1500 | 3000*1600*1500 |
| Machine weight | kg | 2500 | 2800 |
| Total motor power | kw | 10.825 | 10.825 |
| Longitudinal servo motor | kw | 1.6(6N.m) | 1.6(6N.m) |
| Transverse servo motor | kw | 1.6(6N.m) | 1.6(6N.m) |
Notes: The two series machine max. different feature: GKD-200H adopts full protection shield; GKED-200H adopts semi-protection shield.
