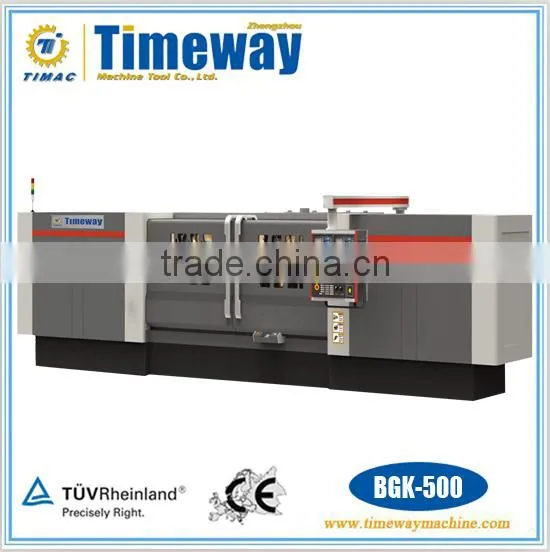

BGK-500 Large-size High Speed CNC Cylindrical Grinding Machine

Name: BGK-500 Large-size High Speed CNC Cylindrical Grinding Machine
Brand: TIMAC
SKU: 140797452
Availability: InStock

BGK-500 Large-size High Speed CNC Cylindrical Grinding Machine thumbnail-1

BGK-500 Large-size High Speed CNC Cylindrical Grinding Machine photo-1

US$ 30,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Cylindrical Grinding Machine

CNC or Not CNC

Max. Grinding Diameter 500mm

Max. Grinding Length 3000mm

Brand Name TIMAC

Model Number BGK-500*3000

Voltage 380V 50Hz

Power(W) 18.5kw(Grinding wheel)

Dimension(L*W*H) As actual stuation

Weight 14000kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Large Size High Speed CNC Cylindrical Grinding Machine

BGK-500 BGDK-500 BGK-630 BGDK-630

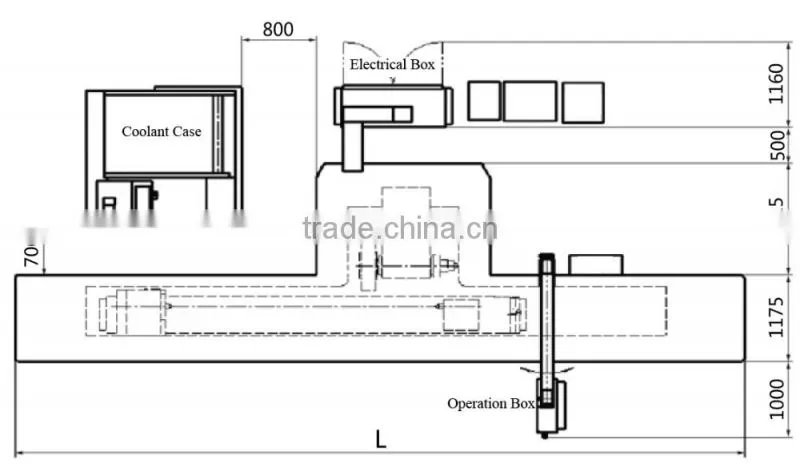

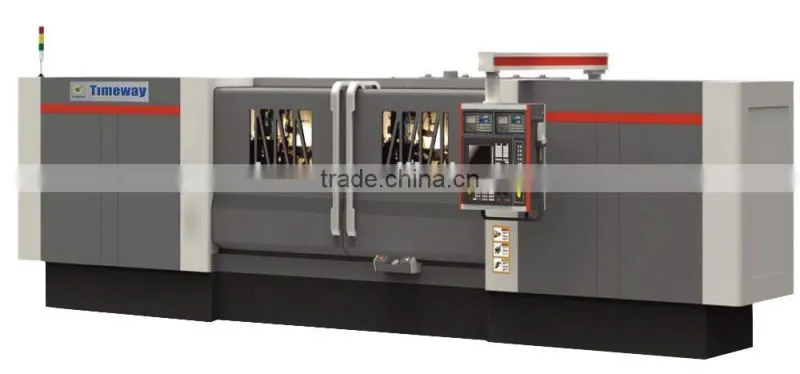

Main Outlook

Summary

Machine Summary

BGK-500/BGK-630 and BGDK-500/BGDK-630 CNC (end face) cylindrical grinding machines are large-size CNC machine tools independently designed, developed and manufactured through the company's import, digestion and absorption of overseas & domestic advanced technologies. They are characterized by the universalization, high-degree modularization, high rigidity, high efficiency and high adaptability. Being large-size CNC cylindrical grinding machines of convenient operations, reliable performance and high processing precision, the series of machine tools are suitable for mass production of production for parts of large-size shaft parts.

Main Performances

Features and Performance

With the rational layout and integral protective cover, the machine is convenient for maintenance and in conformity with human engineering requirements.
The grinding wheel spindle adopts a structure of sleeve type high-rigidity hydrostatic/hydrodynamic mainshafting and features on its high rotary precision and strong bearing capacity. The linear velocity of the grinding wheel can be up to 60m/s(specially ordered).
With two-axis linkage feeding, the machine tool is equipped with worktable(Z-axis) and wheel head (X-axis) driven by AC servomotor and ball screws. With plastic-filming guideway being used and on the adoption of the closed multi-points lubrication, it features on vibration absorbing and anti-friction as well as good precision maintenance.
The machine can be provided with various diamond dressers according to customers' needs, thus realizing precise dressing of complex grinding wheel surfaces and automatic compensation.
Equipped with an imported or a domestic active measuring device, the closed-loop control of grinding process is realized.
Adopting an imported advanced CNC system, the machine features on the menu type interface input and the control up to four axes(X, Z, U and W axes) so as to meet the requirements of grinding and dressing cycles.
The machine may optionally equipped with a CNC or a hydraulic driven auto-tracing center rest dedicated for processing of long and thin shaft parts.

Specifications List

Technical Parameters

Specifications		Units	BGK-500/BGK-630				BGDK-500/BGDK-630
			*1500	*2000	*2500	*3000	*1500	*2000	*2500	*3000
Maximum swiveling diameter		mm	Φ540/Φ670				Φ540/Φ670
Distance between centers		mm	1500	2000	2500	3000	1500	2000	2500	3000
Height of center		mm	275/335				275/335
Maximum grinding diameter		mm	Φ500/Φ630				Φ500/Φ630
Maximum workpiece weight between centers		kg	1000/2000				1000/2000
Control system			FANUC/SIEMENS				FANUC/SIEMENS
Grinding wheel(max.)	ODWID	mm	Φ750(120-200)Φ305/Φ900100Φ305
	Linear speed	m/s	45/60				45/60
Wheel head	Total travel	mm	390/450				390/450
	Feed speed	mm/min	0.1-5000				0.1-5000
	Minimum setting unit	mm	0.001				0.001
	Oblique angle	°	90				60
Worktable	Type		Two layer conical degree adjusting worktable
	Feed speed	mm/min	0.1-5000				0.1-5000
	Minimum setting unit	mm	0.001				0.001
Workhead	Center		MT.NO.6/Metric80				MT.NO.6/Metric80
	Rotating speed	rpm	15-150(stepless)				15-150(stepless)
Tailstock	Cneter		MT.No.6/Metric80				MT.No.6/Metric80
	Travel of center	mm	70				70
Electrical system	Power of wheel spindle motor	kw	18.5/22(500type); 30/37(630type)				18.5/22(500type); 30/37(630type)
	Torque of wheel head feeding motor	N.m	22(FANUC)/27(SIEMENS)(500type); 30(FANUC)36(SIEMENS)(630type)
	Torque of worktable feeding motor	N.m	22(FANUC)/27(SIEMENS)(500type); 30(FANUC)36(SIEMENS)(630type)
	Power of work head spindle motor	kw	4/5.5				4/5.5
	Hydraulic pump motor	kw	0.75				0.75
	Power of wheel spindle bearing lubrication pump	kw	0.75				0.75
Cubage dimension	Hydraulic and lubricating oil tank	L	45/75				45/75
	Spindle bearings oil tank	L	45/75				45/75
Net weight		T	11/14	12/16	13/18	14/20	11/14	12/16	13/18	14/20

Working Accuracy

Inspection item	BGK-500/BGK-630 BGDK-500/BGDK-630
Roundness	0.005mm
Consistency of the longitudinal section diameter	0.01mm
Roughness	Ra0.32um(longitudinal grinding)
	Ra0.63um(plunge-cut grinding)
	Ra0.8um(end face grinding)
