Cam Shaft Belt Polishing Machine (Metal Burnishing Machine)

Name: Cam Shaft Belt Polishing Machine (Metal Burnishing Machine)
Brand: TIMAC
SKU: 140797450
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 1,000 - 20,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

P-100

After-sales Service Provided:

Engineers available to service machinery overseas

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number P-100

After-sales Service Provided Engineers available to service machinery overseas

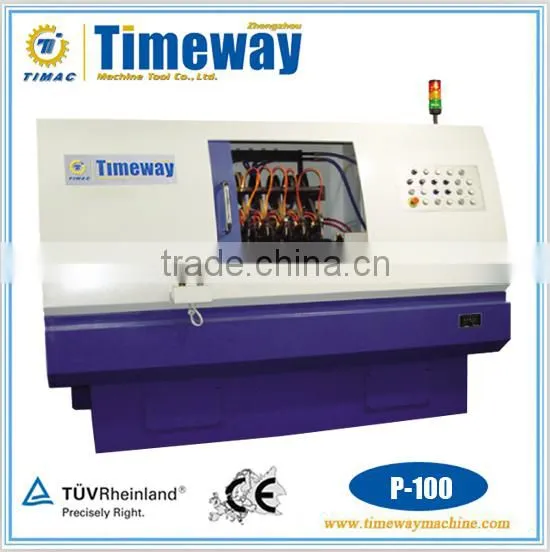

High Precision Cam Shaft Belt Polishing Machine

P-100

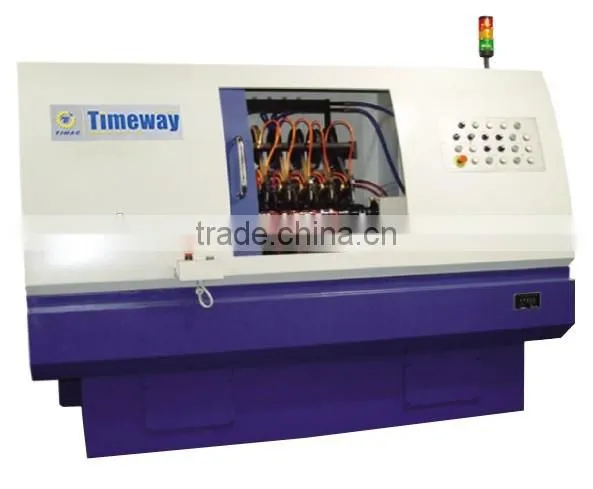

Main Outlook

Summary

Machine Summary

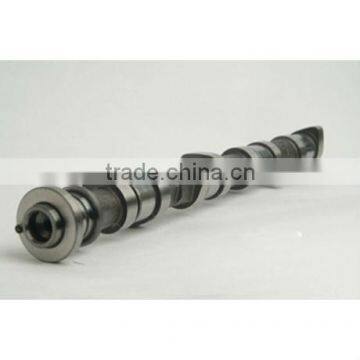

Based on absorbed international advanced technology, P-100 camshaft abrasive belt polishing machine is a kind of machine tool, designed, developed and manufactured by our company, exclusively used for excircle surface polishing of camshaft components.

Main Performances

Feature and Performance

With a rational layout and integral protective cover, the machine tool is convenient for maintenance and in conformity with human engineering requirements.
For the work head, the rotation of spindle and axial vibration are controlled by two variable frequency motors respectively. With the aid of frequency conversion control system, the range of speeds and optimum vibration frequency can be selected according to the material and size of workpiece, thus to meet the requirement of improving surface roughness by means of polishing process.
The forward and backward movement of tailstock spindle is controlled by hydraulic system.
The feeding of abrasive belt winding mechanism is adjustable according to workpiece processing requirement, and the rotating direction of workpiece is set as forward and backward in order to improve machining quality. The surface roughness can be improved over one grade after a working cycle.
The major component of electrical system is provided by Omron and fuji electric.
The hydraulic system adopts the products of Northman.(Also can apply other brand of products in accordance with the requirement of users).
Being easy and simple for operation, the machine tool features reliable performance and is suitable for processing multiple kinds of camshafts with different diameters and lengths.

Specifications List

Technical Parameter

Specifications	Units	P-100
Maximum diameter of workpiece	mm	Φ100
Height of center	mm	340
Distance between centers	mm	500-1000
Speed of spindle(stepless)	rpm	10-300
Amplitude of vibration(adjustable)	mm	1.5-3
Total motor power	kw	3
Overall dimensions of the machine tool(LWH)	mm	320018281800
Net weight	kg	3000
