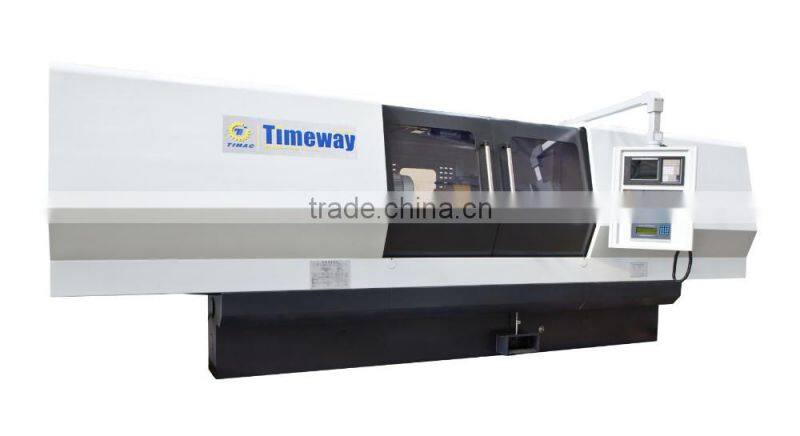

CNC High-speed Face Cylindrical Grinder Machine

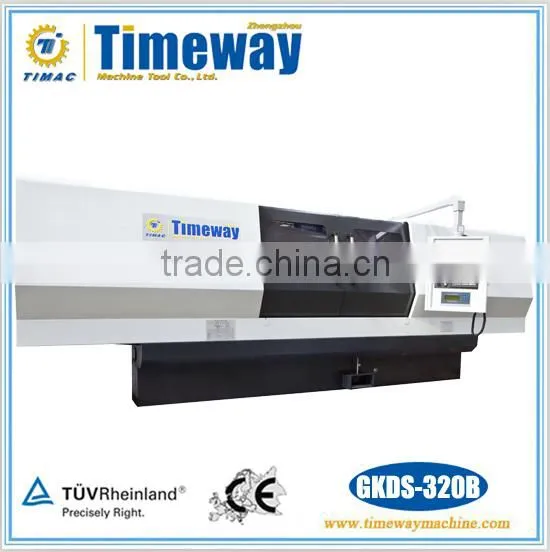

GKDS-320B
Main Functions and Features
1. This series machine is suitable for large quantities cylindrical shaft parts with shoulder and face machining grinding, shaping a plurality of steps to achieve the end face of the wheel when installing wide, high degree of automation, enabling one person to operate more than one.
2. Using Taiwan SYNTEC CNC system(other systems can also be configured according to the custom, such as FANUC or SIEMENS CNC system).
3. High precision automatic measuring instrument is configured to achieve closed loop automatic grinding work cycle to ensure dimensional accuracy.
4. Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity, wheel width can be installed.
5. Configure a separate electrical box, tank and filtration tank.
6. Wheel motor adopts AC frequency adjustment device that can basically achieve constant linear speed grinding.
7. The company is suitable for all levels of customer demand, can be formulated in consultation simple, mid-range and high-end precision CNC surface grinding machine.
Main Accessories
- Wheel periphery dresser
- Wheel hub
- Balancing arbor
- Open-type steady rest
- Wheel extractor
- Magnetic separator
Extra Accessories
- Wheel balancing
- Surface measuring instrument
- Diameter measuring instrument
Technical Parameters
| Specifications | Units | GKDS-320B*1000 | GKDS-320B*1500 |
| Dia. to be ground | mm | Φ8-Φ320 | Φ8-Φ320 |
| Max. length to be ground | mm | 1000 | 1500 |
| Center height | mm | 180 | 180 |
| Max. workpiece weight | kg | 150 | 150 |
| The travel of tailstock center | mm | 30 | 30 |
| Wheel peripheral velocity | m/s | 45 | 45 |
| Max. travel of worktable | mm | 1200 | 1700 |
| Swivel range of worktable | ° | -3- +7 | -3- +7 |
| External wheel size | mm | Φ600*75*Φ305 | Φ600*75*Φ305 |
| Workhead and tailstock center | Morse No.5/Morse no.4 | Morse No.5/Morse no.4 | |
| Roundness | um | 1.5 | 1.5 |
| Uniformity of dia. in longitudinal section | um | 5 | 5 |
| Surface roughness | um | Ra0.25/0.63 | Ra0.25/0.63 |
| Machine dimensions(L*W*H) | mm | 4200*2006*1955 | 4200*2006*1955 |
| Machine weight | kg | 6500 | 7200 |
| Total motor power | kw | 22 | 23 |

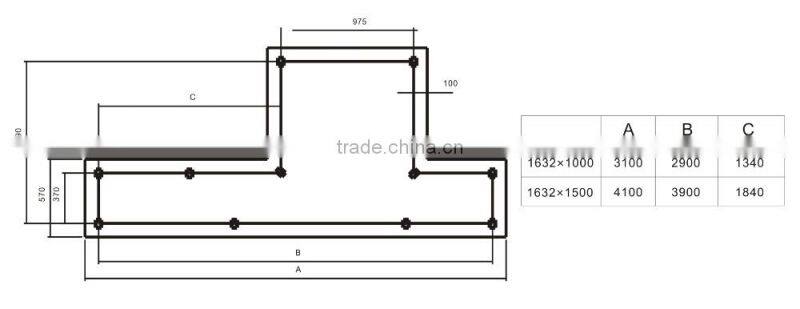

Foundation Drawing
The foundation depth depends upon the soilproperties, but it should be less than 400mm.
