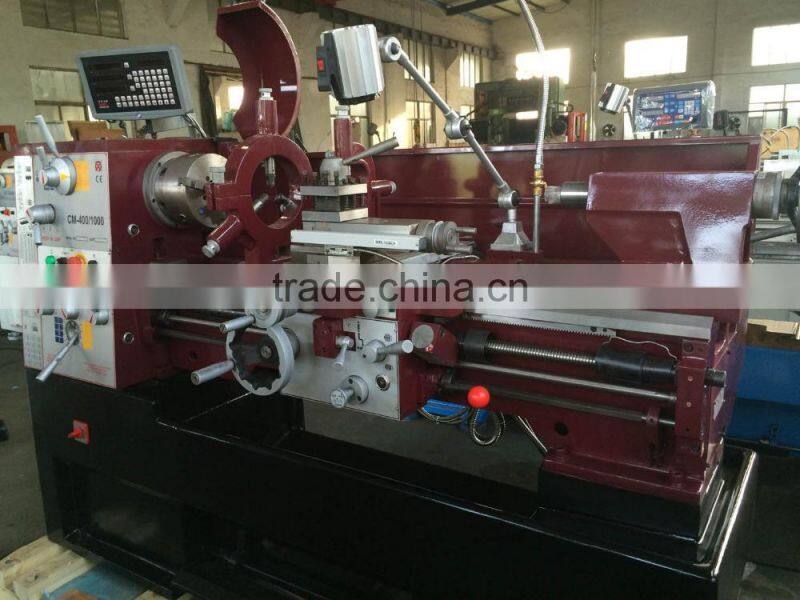

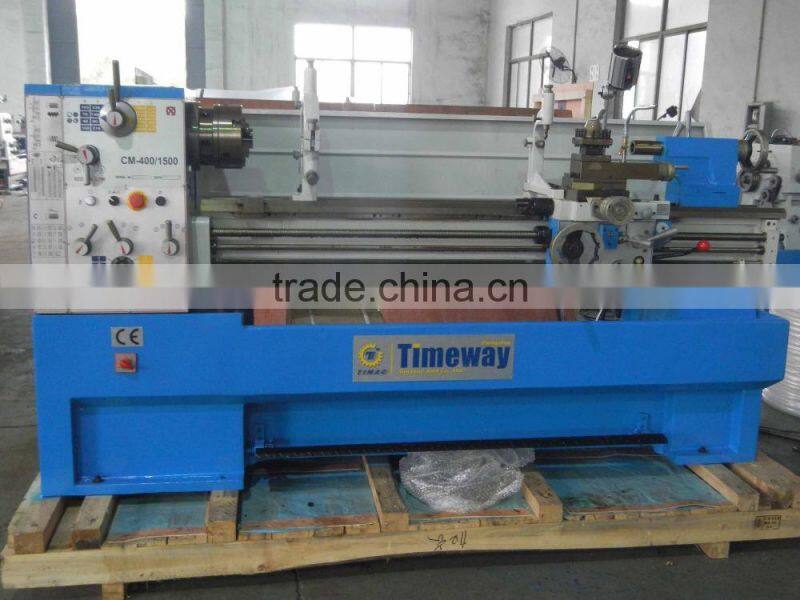

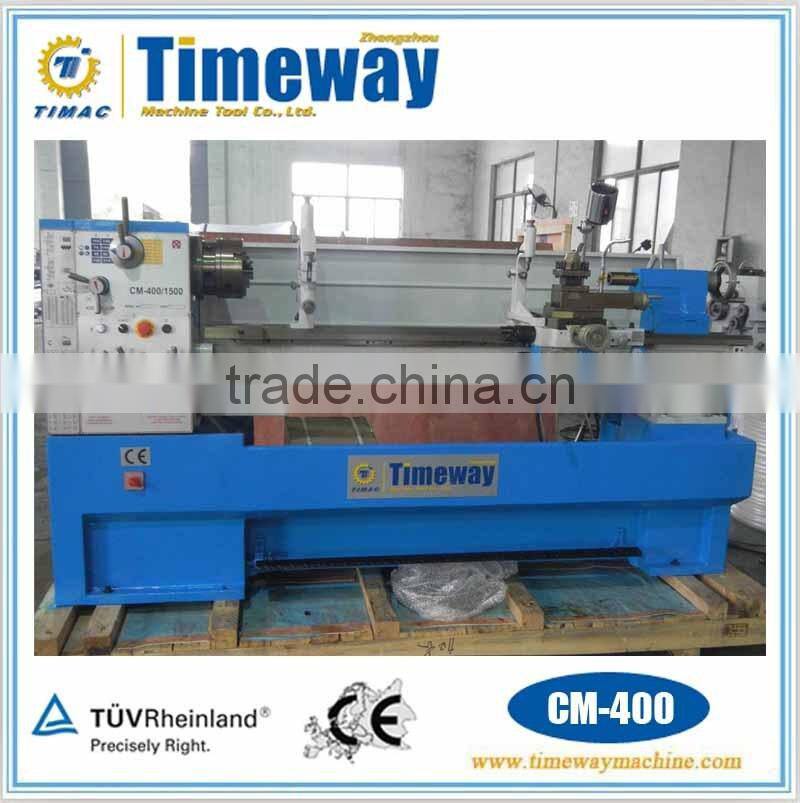

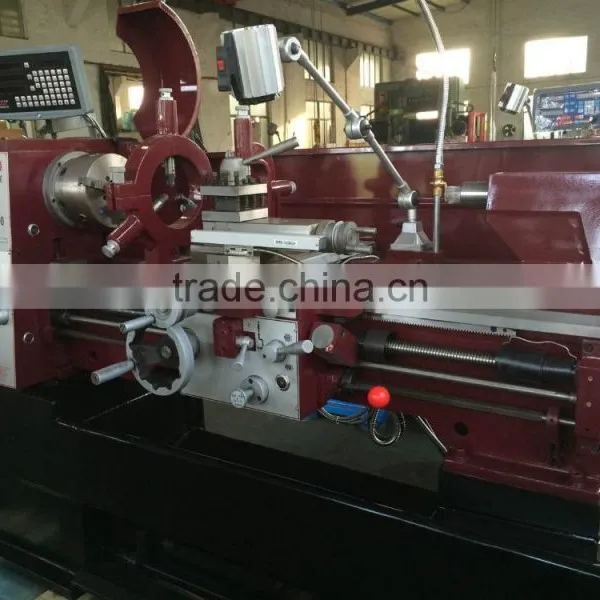

Precision Gap Bed Lathe
Features:
1. Powerful precision gearhead lathes with cost effective;
2. Need not change any gears you can turn all the metric and inch thread indicating in chart;
3. Three points support for spindle;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.
Parameter:
Specification | CM-400 |
Swing over bed | 410mm |
Swing over cross slide | 255mm |
Swing in gap | 580mm |
Length of gap | 250mm |
Distance between centers | 1000, 1500mm |
Width of bed | 250mm |
Spindle nose | D1-6 |
Spindle bore | 52mm |
Taper of spindle bore | No.6 Morse |
Range of spindle speed | 16 changes 45-1800r/min |
Max. travel of compound rest | 102mm |
Max. travel of cross slide | 210mm |
Leadscrew pitch | 4T.P.I. |
Max. Section of tool | 20 × 20mm |
Longitudinal feeds range | 0.05-1.7mm/rev |
Cross feeds range | 0.025-0.85mm |
Metric threads range | 39 kinds 0.2-14mm |
Inch threads range | 45 kinds 2-72T.P.I. |
Diametrical pitches range | 21 kinds 8-44 D.P. |
Module pitches range | 18 kinds 0.3-3.5 M.P. |
Dia.of tailstock sleeve | 50mm |
Travel of tailstock sleeve | 120mm |
Morse taper of tailstock sleeve | No.4 Morse |
Cross adjustment | ±13mm |
Power of main motor | 2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP |
Power of coolant pump | 0.1kw (1/8HP), 3PH |
Overall Dimension (LxWxH) | 1940, 2440x 850x1320mm |
Packing size (LxWxH) | 2060, 2560x 900x1640mm |
Net weight/Gross weight | 1550, 1850/1800, 2100kg |
*** Standard accessories:
3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, chasing dial indicator, operation manual(English edition)
*** Optional accessories:
Digital readout system (DRO), quick change tool post & holders, taper turning attachment
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
