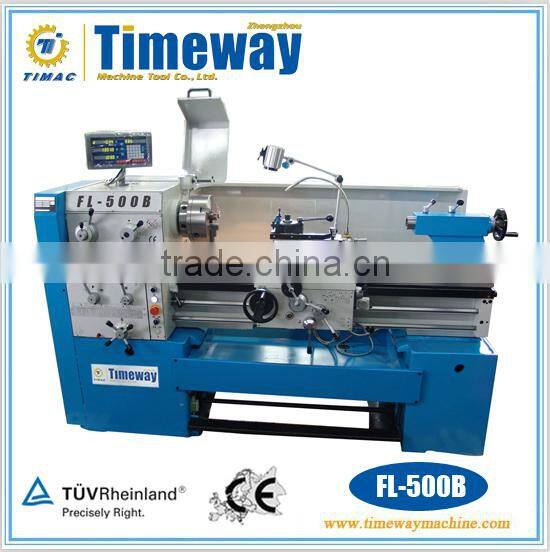

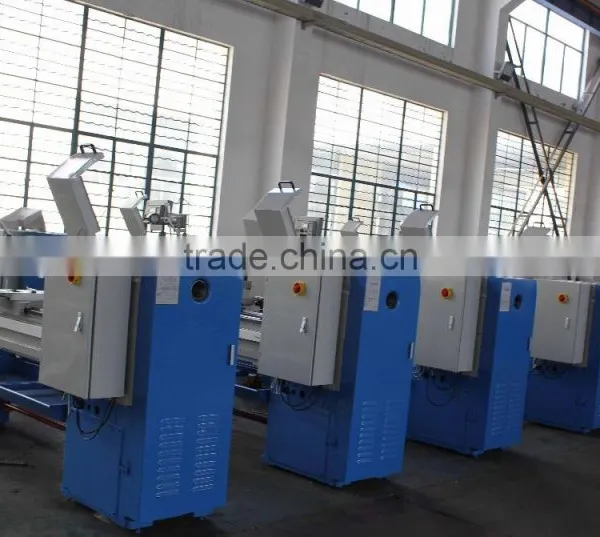

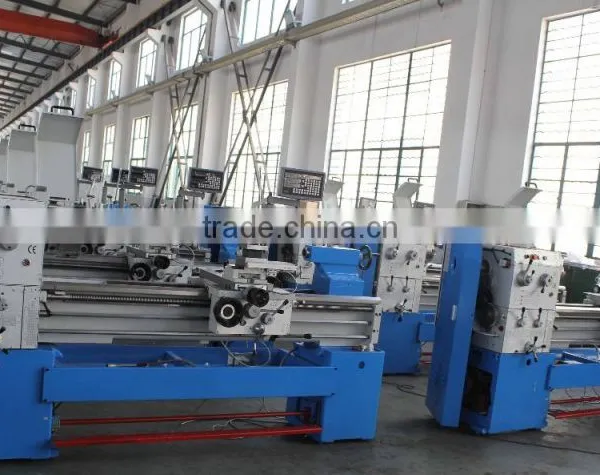

Precision Gap-bed Lathe FL-500B
Parameter:
Specification | FL-400B FL-400C | FL-500B FL-500C | FL-600B FL-600C | |
Max. swing over bed | 400mm | 500mm | 600mm | |
Max. swing over cross slide | 225mm | 325mm | 360mm | |
Max. swing in gap | 530mm | 630mm | 730mm | |
Center distance | 1000,1500, 2000mm | |||
Bed width | 330mm | |||
Spindle hole | (B series: 65mm), 80mm | |||
Spindle nose | (B series: ISO-C6 or ISO-D6), ISO-C8 or ISO-D8 | |||
Spindle taper | (B series: Metric 70mm), Metric 85mm | |||
Spindle speeds | (B series: 22-1800rpm), 24-1600rpm (15 Steps) | |||
Metric threads range | 0.5-28mm (66Kinds) | |||
Inch threads range | 1-56tpi (66 Kinds) | |||
Module threads range | 0.5-3.5mm (33 Kinds) | |||
Diametral threads range | 8-56D.P (33 Kinds) | |||
Max. travel of top slide | 130mm | |||
Max. travel of cross slide | 300 | |||
Max. size of tool (W x H) | 25 x 20mm | 25 x 25mm | ||
Tailstock sleeve diameter | 75mm | |||
Tailstock sleeve taper | Morse No. 5 | |||
Tailstock sleeve travel | 120mm | |||
Main motor | 5.5kw |
| ||
Net weight/Gross weight | ||||
1000mm | 1640/2250kg | 1700/2350kg | 1800/2500kg | |
1500mm | 1850/2250kg | 1910/2610kg | 2010/2760kg | |
2000mm | 2090/2860kg | 2150/2920kg | 2250/3070kg | |
PACKING SIZE(L*W*H) | ||||
1000mm | 2460*1150*1800mm | |||
1500mm | 2950*1150*1800mm | |||
2000mm | 3460*1150*1800mm | |||
*** Standard items:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Reduction sleeve, Oil gun, Coolant
system, Foot brake, Working light, Chasing dial indicator, Operation manual(English edition).
*** Optional items:
Digital readout system (DRO), Quick change tool post & holders, Taper turning attachment
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
