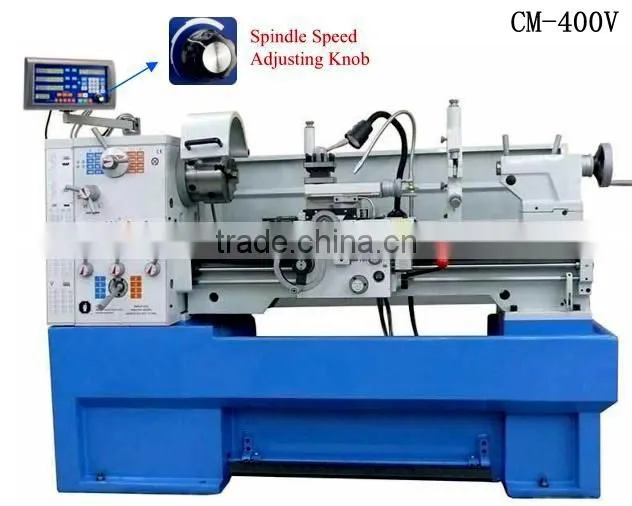

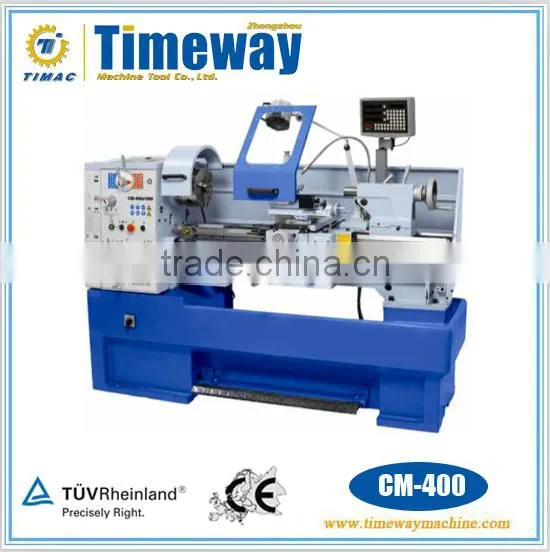

16" Variable-speed Horizontal Gap Bed Lathe for sale
Feature:
This series universal center lathe is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accesssories, such as 3-jaw chuck, steady and follow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model can also be equipped with a 2 or 3-axis digital readout.
1.Inductive hardened, polished gray cast-iron machine bed.
2.Electro-mechanical foot brake reduces downtime significantly.
3.Large, hardened, polished gears.
4.Easy, smooth and prcisely adjustable speed and feed settings.
5.Hardened, polished gears and shafts, also in feed gear unit.
6.State-of -the art main spindle bearing with high-quality angular ball bearings.
7.Centrally located, logical switches for feeds and threads with leadscrew and feed road.
8.Adjustable tailstock for taper turning, handwheel feature adjustable scale(0.02mm).
9.The removeable bridge allows machining of workpieces with a big diameter.
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).
Optional Accessories:
2-axes DRO, Quick change tool post, Taper turning attachment, CE execution
Parameter :
Specification |
| CM-400 | CM-400V | |
Capacity | Swing over bed | Unit | 410(16") | |
Swing over cross slide | mm | 255(10") | ||
Swing in gap | mm | 580(23") | ||
Length of gap | mm | 190(7-1/2") | ||
Distance between centers | mm | 1000(40")/1500(60") | ||
Center height | mm | 205(8") | ||
Width of bed | mm | 250(10") | ||
Headstock | Spindle nose | mm | D1-6 | |
Spindle bore |
| 52(2") | ||
Taper of spindle bore | mm | NO.6 Morse | ||
Range of spindle speed | mm | 16changes 45-1800 | ||
Feeds | Compound rest travel | rpm | 140(5-1/2") | |
Cross slide travel | mm | 210(8-1/4") | ||
Lead screw threads | T.P.I. | 4 | ||
Max.section of tool(W×H) | mm | 20×20(13/16") | ||
Longitudinal feeds range | mm/rev | 0.05-1.7(0.002"-0.067"/rev) | ||
Cross feeds range | mm/rev | 0.025-0.85(0.001"-0.0335"/rev) | ||
Metric threads | mm | 39kinds 0.2-14 | ||
Inch threads | T.P.I | 45kinds 2-72 | ||
Diametral pitch threads | D.P. | 21kinds 8-44 | ||
Module pitches | M.P. | 18kinds 0.3-3.5 | ||
Tailstock | Quill diameter | mm | 50(2") | |
Quill travel | mm | 120(4-3/4") | ||
Quill taper |
| No.4 Morse | ||
Cross adjustment | mm | ±13(±1/2") | ||
Motor | Main motor power | KW | 0.1(1/8HP),3HP | |
Coolant pump power | KW | 2.2/3.3(3/4.5HP),3HP | ||
Dimension | Overall dimension(L×W×H) | cm | 194×85×132/244×85×132 | |
Packing size(L×W×H) | cm | 206×90×164/256×90×164 | ||
Net weight/Gross weight | kg | 116/1350,1340/1565 | ||

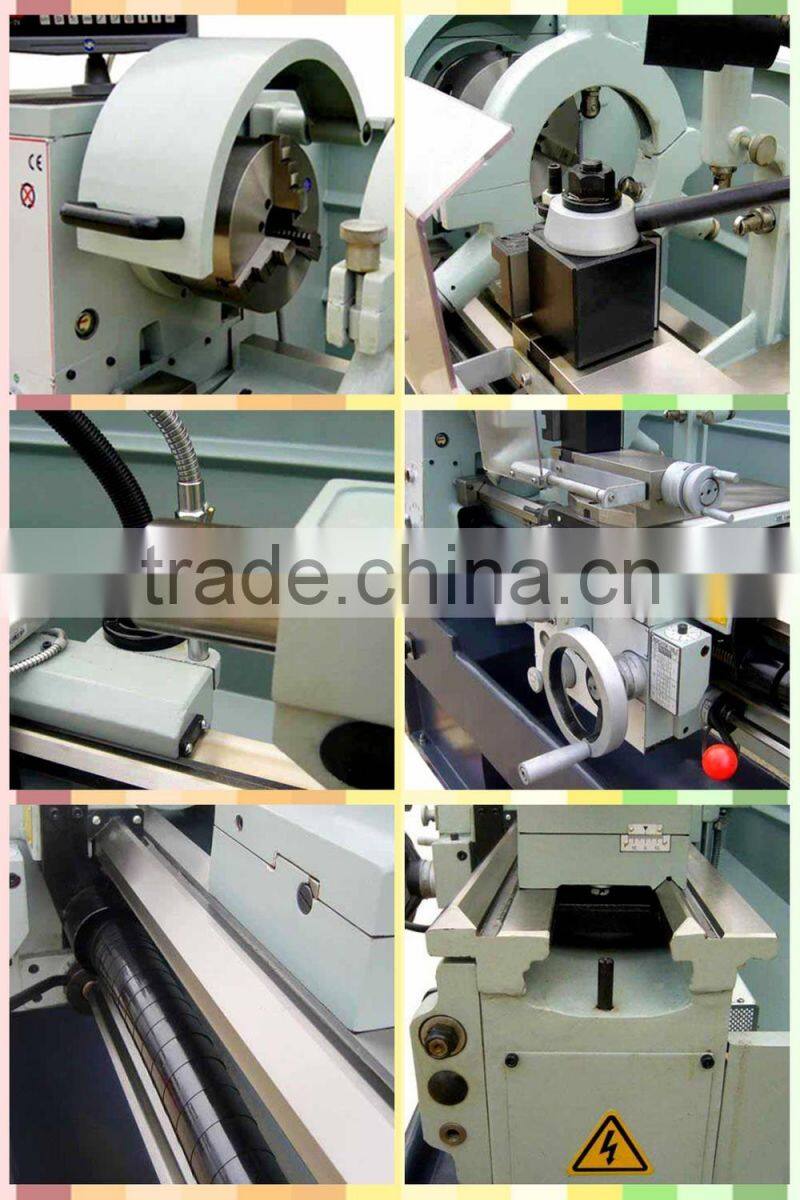

Details Show:
