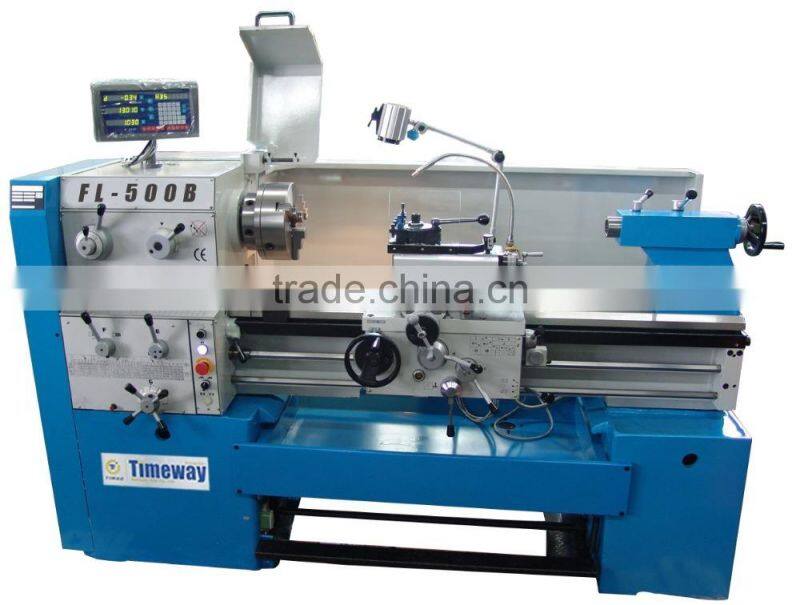

500mm Swing Precision Gap-bed Lathe (FL-500B)

500mm Swing Precision Gap-bed Lathe (FL-500B) thumbnail-1
500mm Swing Precision Gap-bed Lathe (FL-500B) photo-1
US$ 5,900 - 6,750 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 500mm
Brand Name TIMAC
Model Number FL-500B
Voltage As customer's request
Power(W) 5.5kw
Dimension(L*W*H) 2950x1150x1750mm
Weight 1850kg
Certification ISO9001, CE



Product Description



Precision Gap-bed Lathe FL-500B



500mm Swing Precision Gap-bed Lathe (FL-500B)



500mm Swing Precision Gap-bed Lathe (FL-500B)   500mm Swing Precision Gap-bed Lathe (FL-500B)



Parameter:



Specification

FL-400B

FL-400C

FL-500B

FL-500C

FL-600B

FL-600C

Max. swing over bed

400mm

500mm

600mm

Max. swing over cross slide

225mm

325mm

360mm

Max. swing in gap

530mm

630mm

730mm

Center distance

1000,1500, 2000mm

Bed width

330mm

Spindle hole

(B series: 65mm), 80mm

Spindle nose

(B series:  ISO-C6 or ISO-D6), ISO-C8 or ISO-D8

Spindle taper

(B series:  Metric 70mm), Metric 85mm

Spindle speeds

(B series:   22-1800rpm), 24-1600rpm (15 Steps)

Metric threads range

0.5-28mm (66Kinds)

Inch threads range

1-56tpi (66 Kinds)

Module threads range

0.5-3.5mm (33 Kinds)

Diametral threads range

8-56D.P (33 Kinds)

Max. travel of top slide

130mm

Max. travel of cross slide

300

Max. size of tool (W x H)

25 x 20mm

25 x 25mm

Tailstock sleeve diameter

75mm

Tailstock sleeve taper

Morse No. 5

Tailstock sleeve travel

120mm

Main motor

5.5kw



Net weight/Gross weight

1000mm

1640/2250kg

1700/2350kg

1800/2500kg

1500mm

1850/2250kg

1910/2610kg

2010/2760kg

2000mm

2090/2860kg

2150/2920kg

2250/3070kg

PACKING SIZE(L*W*H)

1000mm

2460*1150*1800mm

1500mm

2950*1150*1800mm

2000mm

3460*1150*1800mm



*** Standard items:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Reduction sleeve, Oil gun, Coolant

system, Foot brake, Working light, Chasing dial indicator, Operation manual(English edition).



*** Optional items:
Digital readout system (DRO), Quick change tool post & holders, Taper turning attachment



500mm Swing Precision Gap-bed Lathe (FL-500B)   500mm Swing Precision Gap-bed Lathe (FL-500B)500mm Swing Precision Gap-bed Lathe (FL-500B)   500mm Swing Precision Gap-bed Lathe (FL-500B)





Packaging & Shipping

500mm Swing Precision Gap-bed Lathe (FL-500B)



Package:  Wooden pallet & plastic cover  (Standard)

                    or Plywood case (Optional)



Packing size:

One piece in one case: 2950*1150*1750MM               N.W./G.W.: 1850/2250KG



Container loaded: 4 sets / 20'GP
