14" Swing Universal Mechanical Torno T-1440B

Zhengzhou Timeway Machine Tool Co., Ltd.
14" Swing Universal Mechanical Torno T-1440B thumbnail-1
14" Swing Universal Mechanical Torno T-1440B thumbnail-2
14" Swing Universal Mechanical Torno T-1440B thumbnail-3
14" Swing Universal Mechanical Torno T-1440B thumbnail-4
14" Swing Universal Mechanical Torno T-1440B thumbnail-5
14" Swing Universal Mechanical Torno T-1440B photo-1

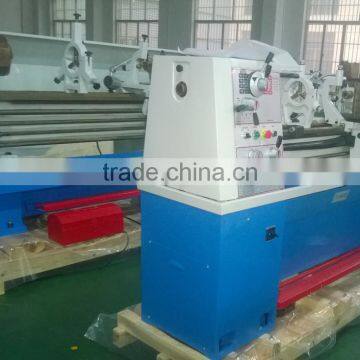

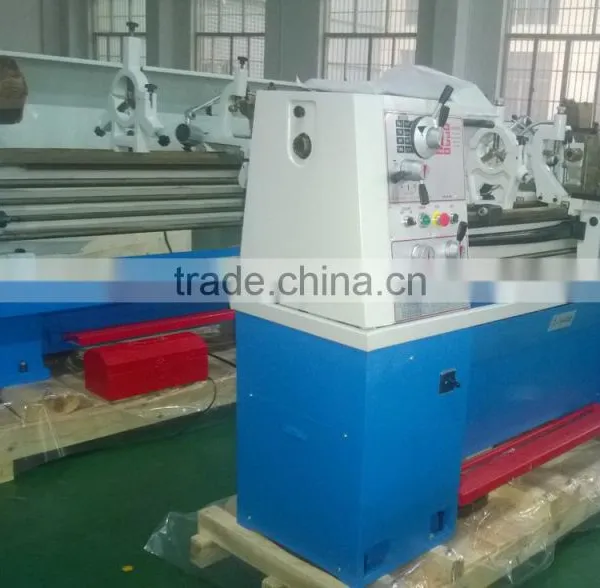

14" Swing Universal Mechanical Torno T-1440B photo-2

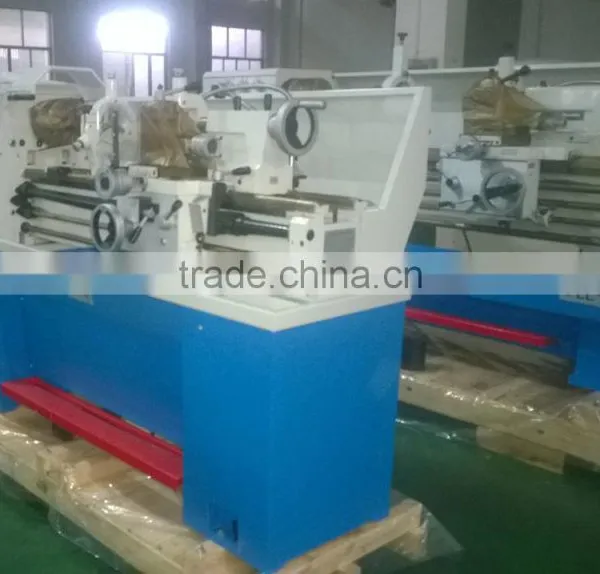

14" Swing Universal Mechanical Torno T-1440B photo-3

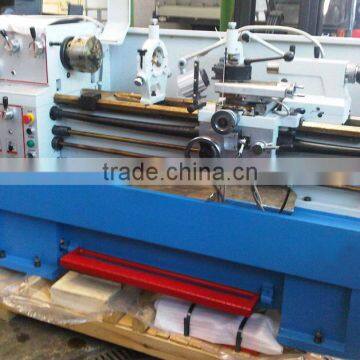

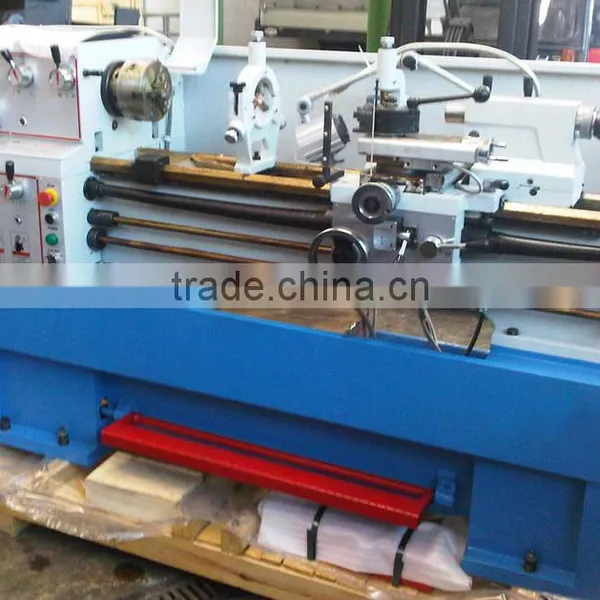

14" Swing Universal Mechanical Torno T-1440B photo-4

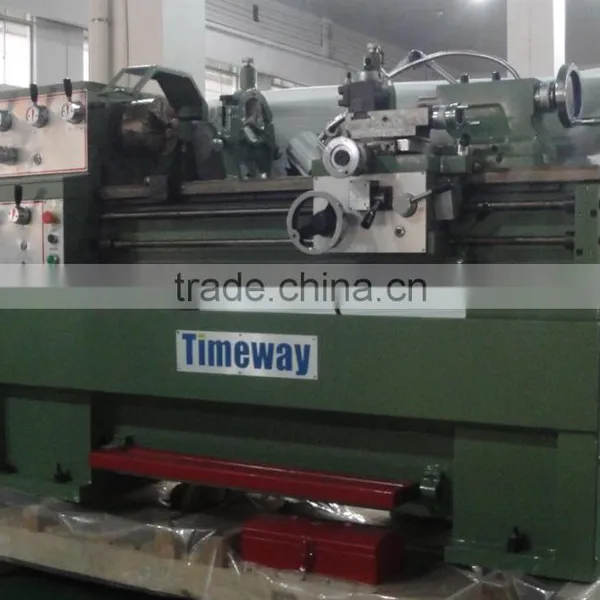

14" Swing Universal Mechanical Torno T-1440B photo-5
US$ 2,850 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 356mm
Brand Name TIMAC
Model Number T-1440B
Voltage As clients' request
Power(W) 2.4kw
Dimension(L*W*H) 1940*760*1520mm
Weight 1200kg
Certification ISO9001, CE
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Universal Mechanical Torno



14" Swing Universal Mechanical Torno T-1440B





Feature:



1) Precision ground and supersonic frequency hardened bed ways.
2) The spindle is supported with precision roller bearing.
3) Headstock gears are made of high quality steel, ground and hardened
4) Removable gap is provided for larger diameter work
5) Easy operating gear box has various feeds and thread cutting function



Parameter:



Specification

Unit

T-1236A

T-1340A

 T-1440A

T-1340B

T-1440B

T-1440W

*Capacity

Center height

mm

 150

 165

178

150

 178

 178

Max.swing over bed

mm

300

330

 356

300

356

 356

Max.swing over cross slide

mm

180

198

224

198

220

 210

Max.swing in gap

mm

 430

 450

 476

 476

506

 508

Distance between centers

mm

 910

1000



*Spindle

Spindle nose



D4

Spindle bore

mm

38

40

Spindle bore taper



M.T.#5

Spindle speed

rpm

65-1810

(8 steps)

 70-2000(8 steps)

45-1800(16steps)

 40-1800(12 steps)



*Feed

Longitudinal feed range

mm/rev

 0.079-1.291

 0.078-1.044

 0.067-1.019

0.043-0.653

Cross feed range

mm/rev

0.017-0.276

 0.22-0.298

0.018-0.275

0.015-0.220



 *Threads

Metric threads

mm

0.4-7

 0.45-10

0.45-10

0.4-7

Inch threads

T.P.I

4-60

21/4-40

31/2-80

4-112



*Tailstock

Tailstock bore taper



 M.T.#3



*Other

Main motor

kw

1.5

1.5/2.4

Net weight/Gross weight

kg

540/590

 560/600

 580/620

495/595

750/880

1200/1300

Packing dimension

mm

1680x750x1420

1940×760×1520



***Standard accessories:

3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light,

4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator.



***Optional accessories:

Digital readout system (DRO),

quick change tool post & holders,

taper turning attachment





Detailed Images

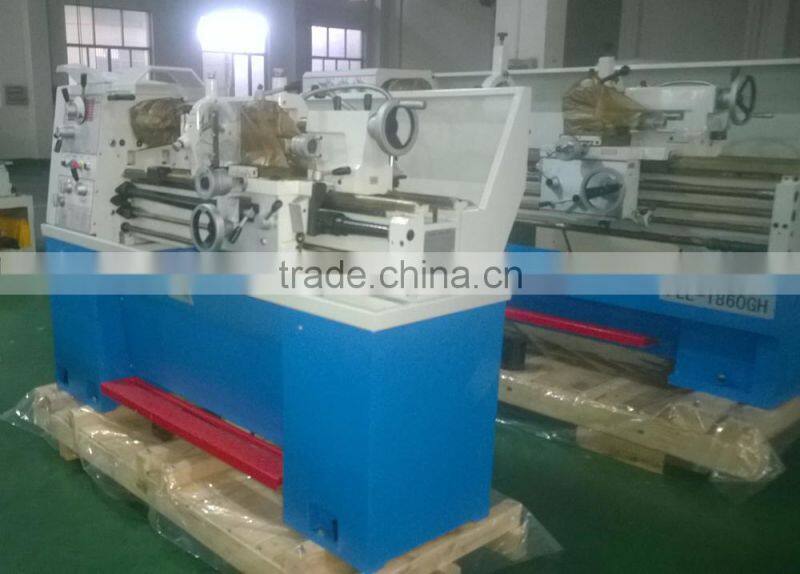

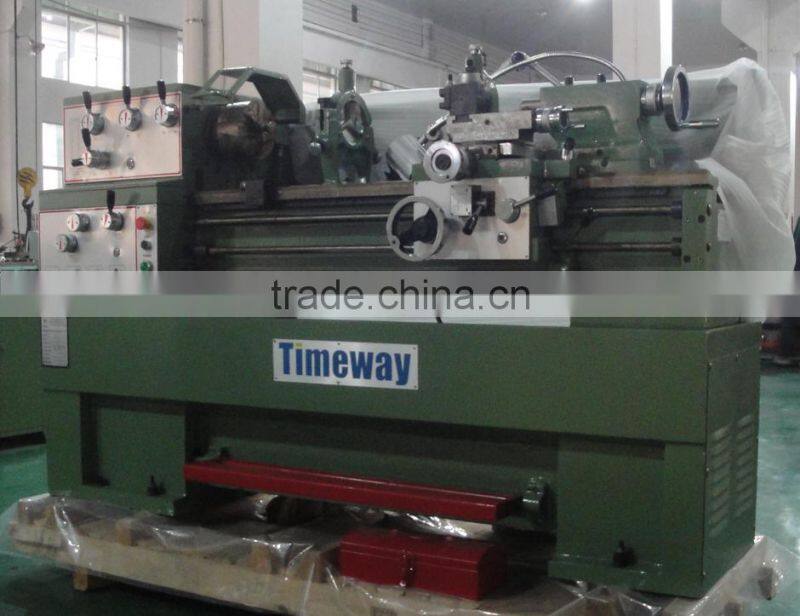

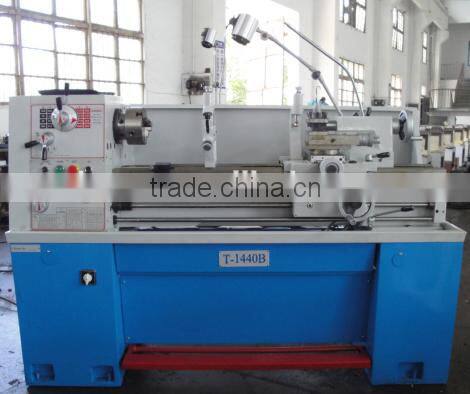

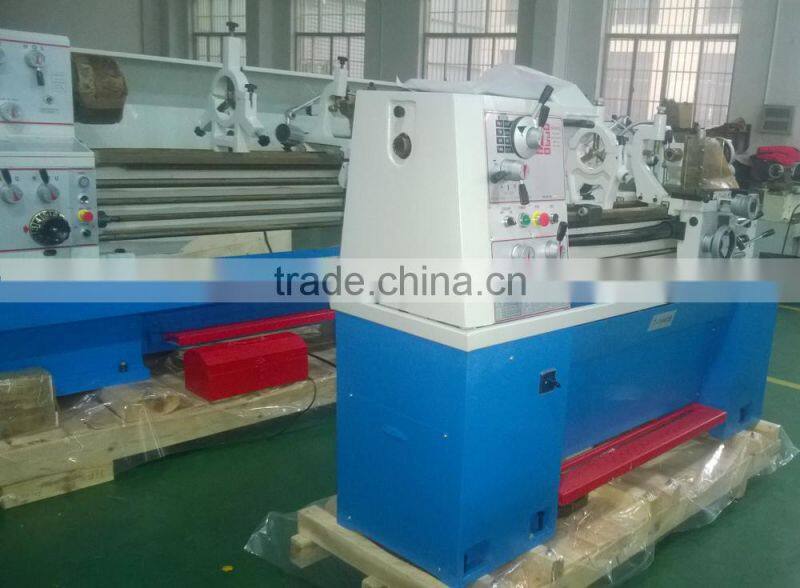

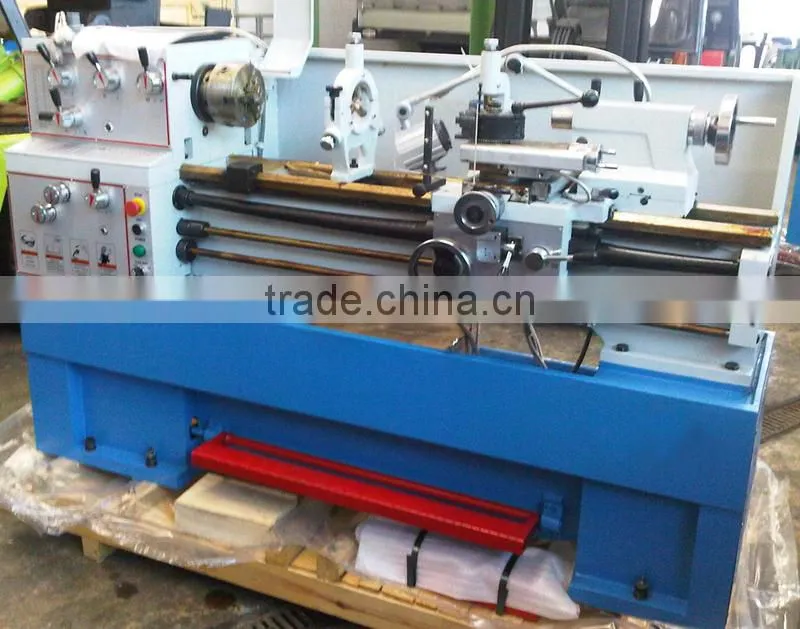

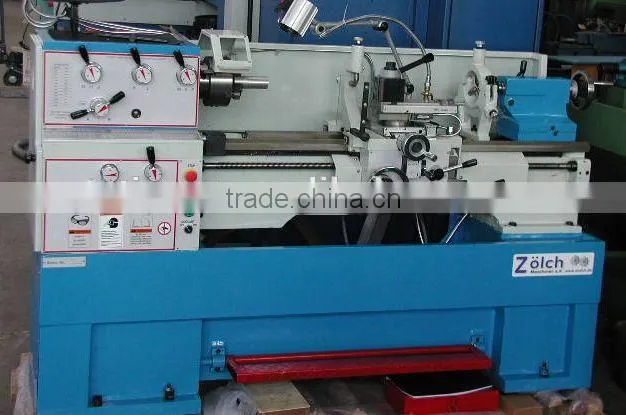

 14" Swing Universal Mechanical Torno T-1440B    14" Swing Universal Mechanical Torno T-1440B



 14" Swing Universal Mechanical Torno T-1440B    14" Swing Universal Mechanical Torno T-1440B



 14" Swing Universal Mechanical Torno T-1440B   14" Swing Universal Mechanical Torno T-1440B



Packaging & Shipping

14" Swing Universal Mechanical Torno T-1440B

Package:  Wooden pallet & plastic cover  (Standard)

                    or Plywood case (Optional)



Packing size:

One piece in one case: 2950*1150*1750MM               N.W./G.W.: 1850/2250KG



Container loaded: 4 sets / 20'GP
