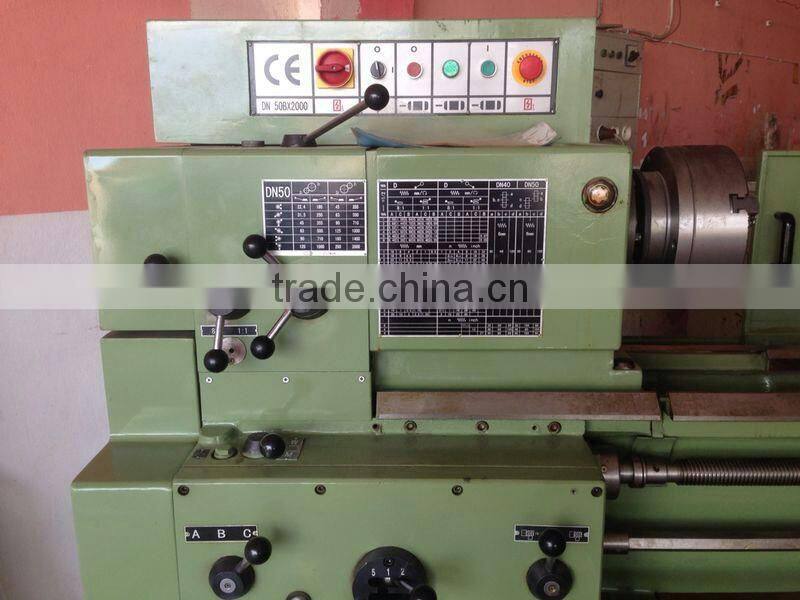

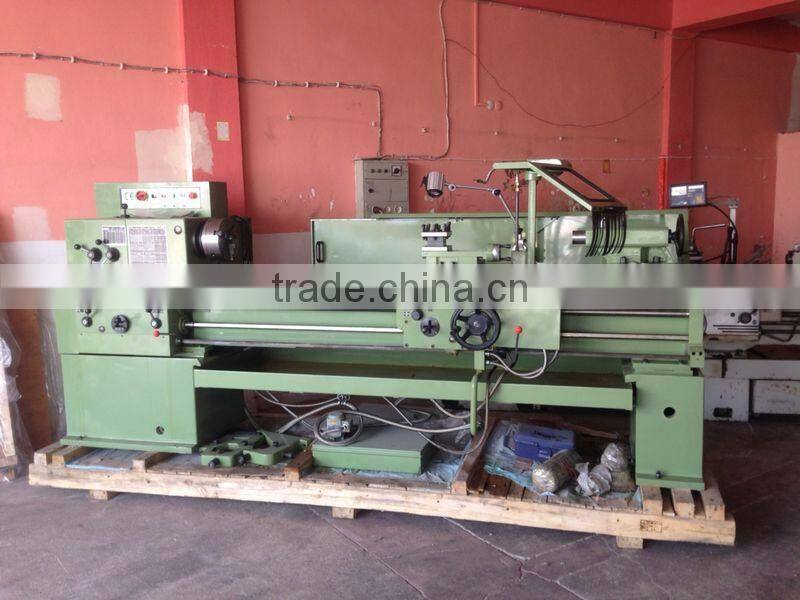

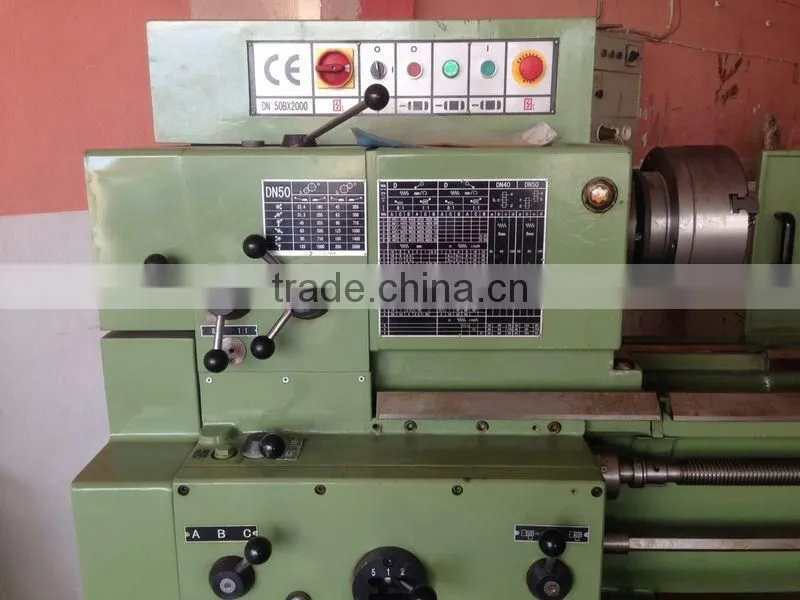

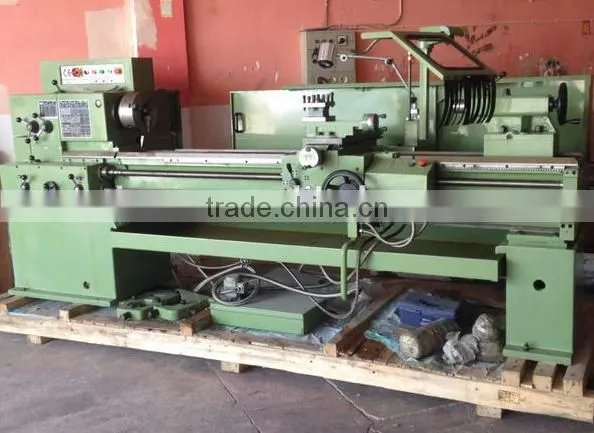

500x2000mm Universal Center Lathe Machine SL-500B

Name: 500x2000mm Universal Center Lathe Machine SL-500B
Brand: TIMAC
SKU: 140796382
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 500mm

Place of Origin Henan, China

Brand Name TIMAC

Model Number SL-500B

Voltage As Customers' Request

Power(W) 5.5KW

Certification ISO, CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Universl Gap Bed Lathe
2. 500mm swing lathe
3. Length 1000/1500/2000mm
4. Metal cutting lathe

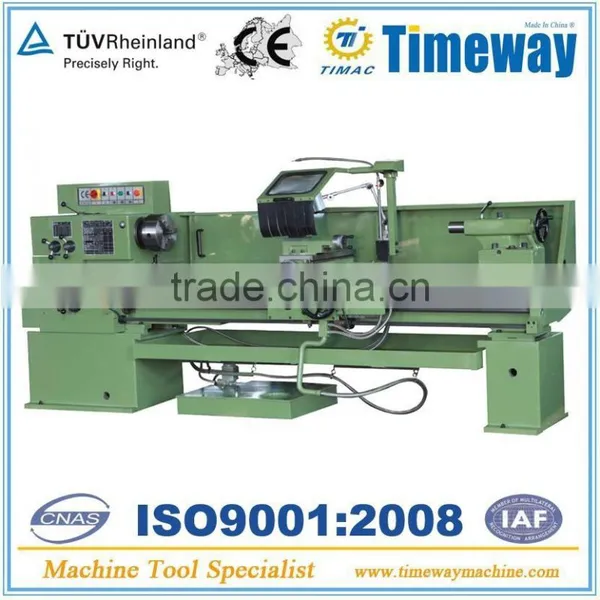

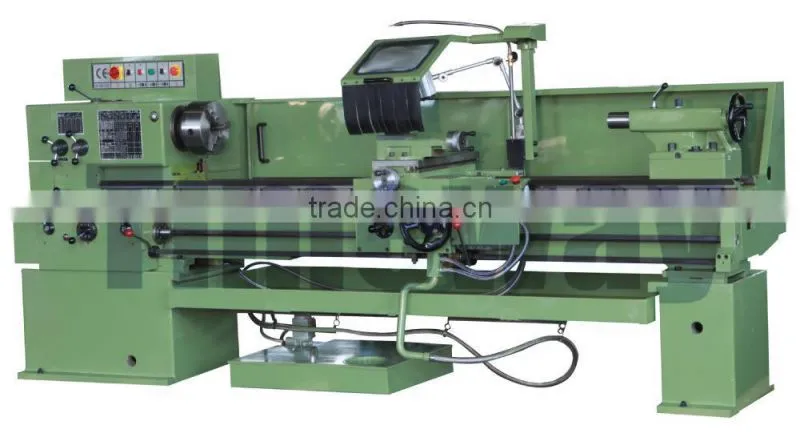

Universal Center Lathe SL-500B

(500mm swing x 1000/1500/2000mm length)

Specification			SL-500B
Working range
Max. swing over bed			500 mm
Max. swing over cross slide			270 mm
Max. swing in bed gap			700 mm
Bed gap width			230 mm
Distance between centers			1000, 1500, 2000 mm
Height of centers			250 mm
Spindle
Spindle speed			22 - 2000 min -1
Spindle nose			STN ISO 702/III - B6
Spindle bore			52 mm
Internal spindle taper			MORSE 6
Limit speed for max. torque			1200/45 Nm/min -1
Travel
Cross slide working travel			300 mm
Tool slide working travel			140 mm
Max. tool size			32 x 20 mm
Traverse feed number			38
Working range of longitudinal feed			0,05 - 6,4 mm.rev-1
Working range of cross feed			0,025 - 3,2 mm.rev -1
Longitudinal rapid traverse			3000 mm.min -1
Cross rapid traverse			1500 mm.min -1
Tailstock
Tailstock sleeve diameter			70 mm
Tailstock sleeve travel			180 mm
Tailstock sleeve internal taper			MORSE 5
Cross resetting			±12 mm
Threads
Metric threads	number		29
	range		0,5 - 40 mm
Whitworth threads	number		38
	range		1 - 80 thread/1"
Modular threads	number		26
	range		0,25 - 20 mm
Diametral Pitch threads	number		31
	number of DP threads		2 - 72
Motor
Total power input			6,6 kVA
Voltage			As requirement
Main motor			5,5 kW
Coolant pump			0,09 kW
Rapid travel motor			0,55 kW
Workpiece weight
Max. Workpiece weight between center		300 kg
Max. Workpiece weight in chuck		80 kg
Overall dimension(LxWxH)		2640, 3145, 3630x1100x1505 mm
Weight		1735, 1835, 1940 kg
