"356mm Swing" Engine Lathe Machine

"356mm Swing" Engine Lathe Machine thumbnail-1
"356mm Swing" Engine Lathe Machine thumbnail-2
"356mm Swing" Engine Lathe Machine thumbnail-3
"356mm Swing" Engine Lathe Machine thumbnail-4
"356mm Swing" Engine Lathe Machine thumbnail-5
"356mm Swing" Engine Lathe Machine thumbnail-6
"356mm Swing" Engine Lathe Machine photo-1
"356mm Swing" Engine Lathe Machine photo-2
"356mm Swing" Engine Lathe Machine photo-3

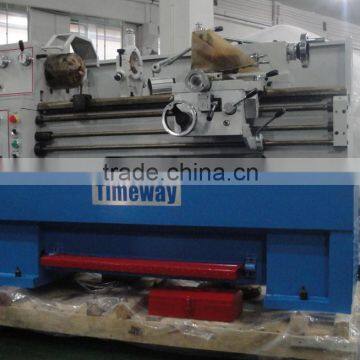

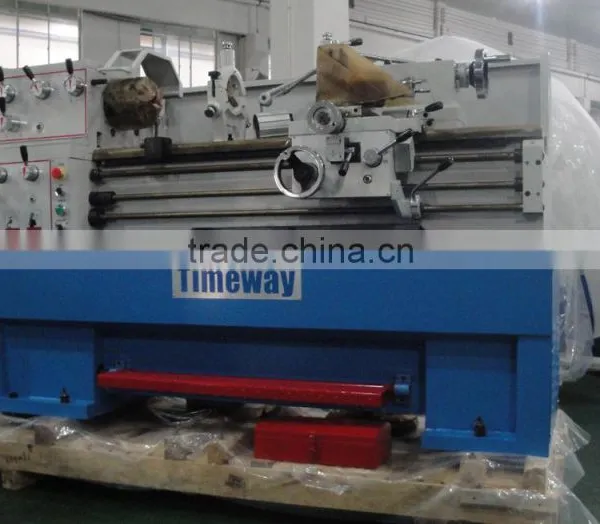

"356mm Swing" Engine Lathe Machine photo-4

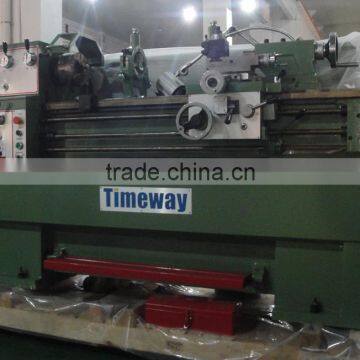

"356mm Swing" Engine Lathe Machine photo-5
"356mm Swing" Engine Lathe Machine photo-6
US$ 1,500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 356mm
Place of Origin Henan, China
Brand Name TIMAC

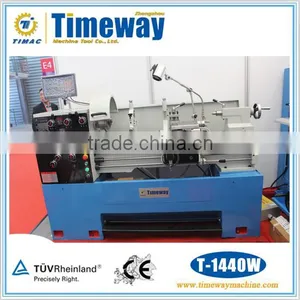

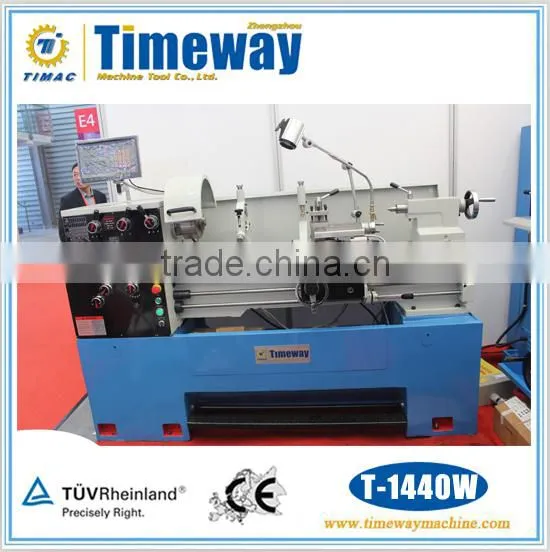

Model Number T-1440W
Voltage As Customers' Requirement
Power(W) 1.5kw/2..4kw
Dimension(L*W*H) 1940x760x1520mm
Weight 1200kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Horizontal Engine Lathe Machine

T-1236A   T-1340A   T-1440A    T-1340B   T-1440B   T-1440W

Main Outlook

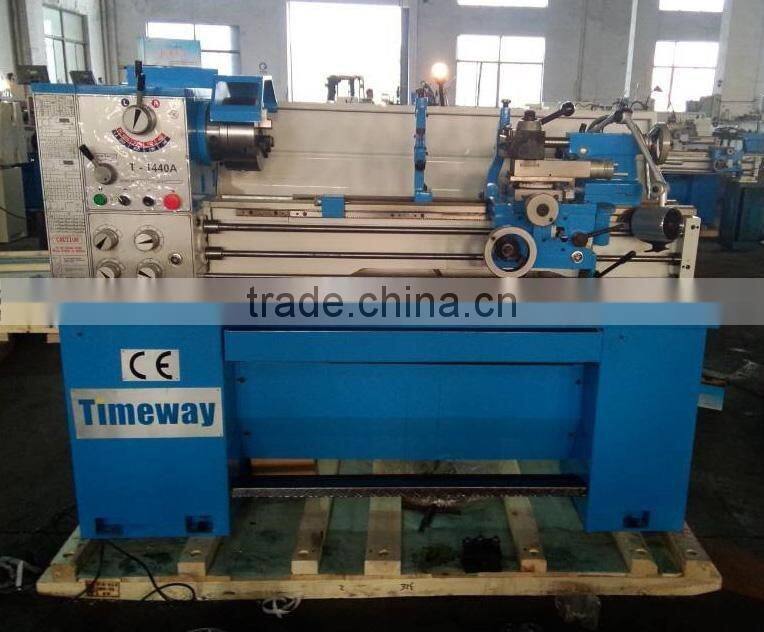

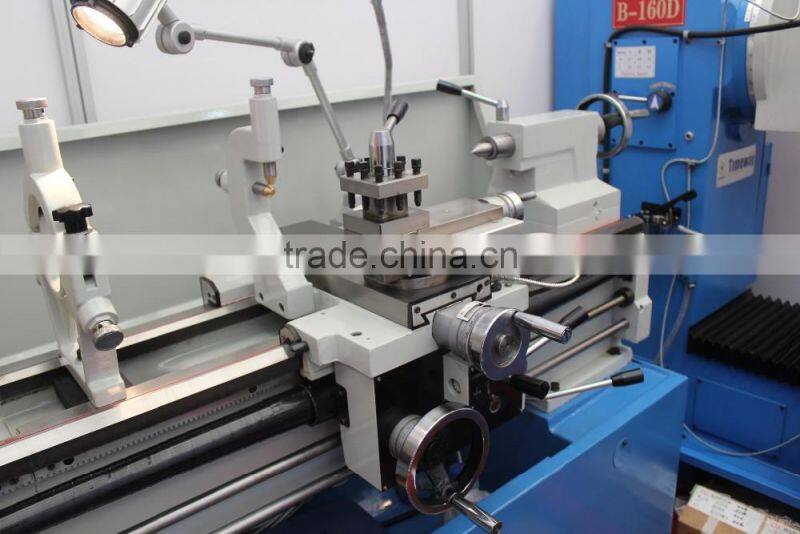

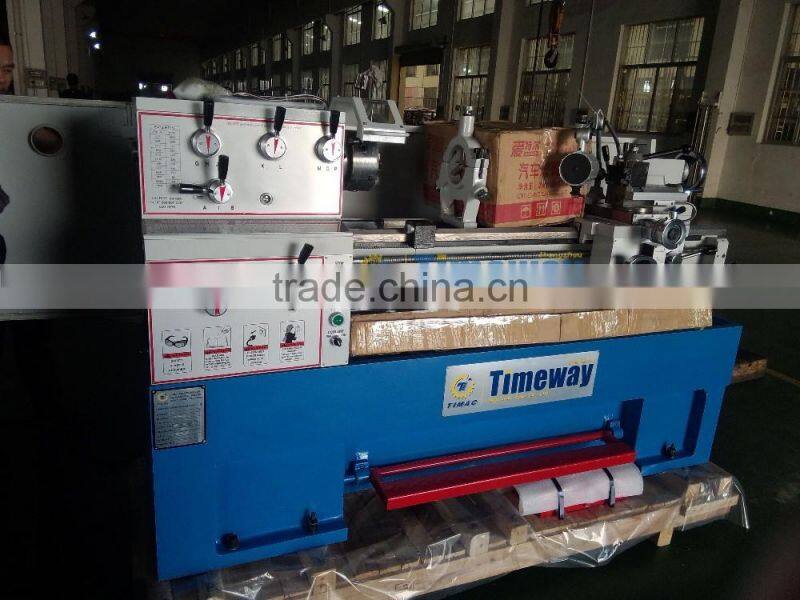

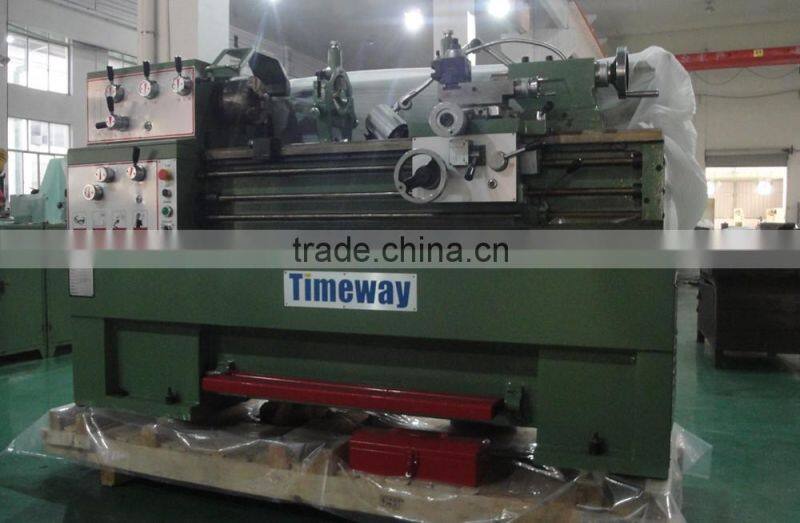

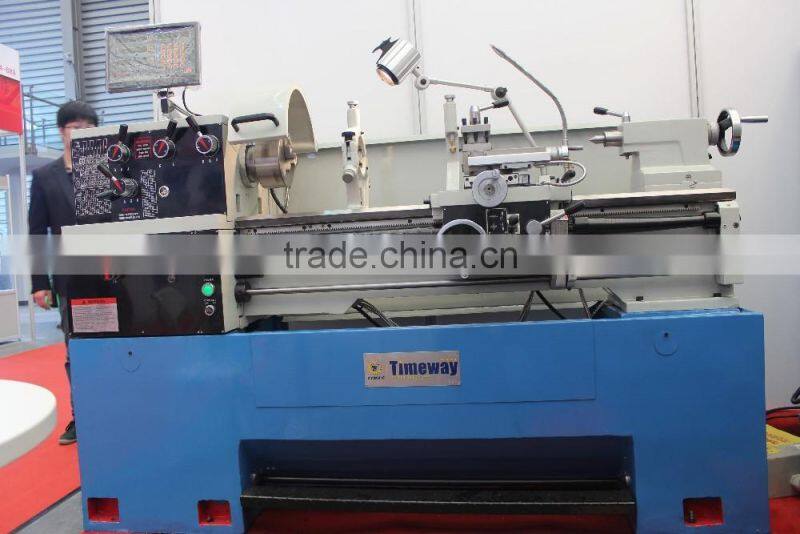

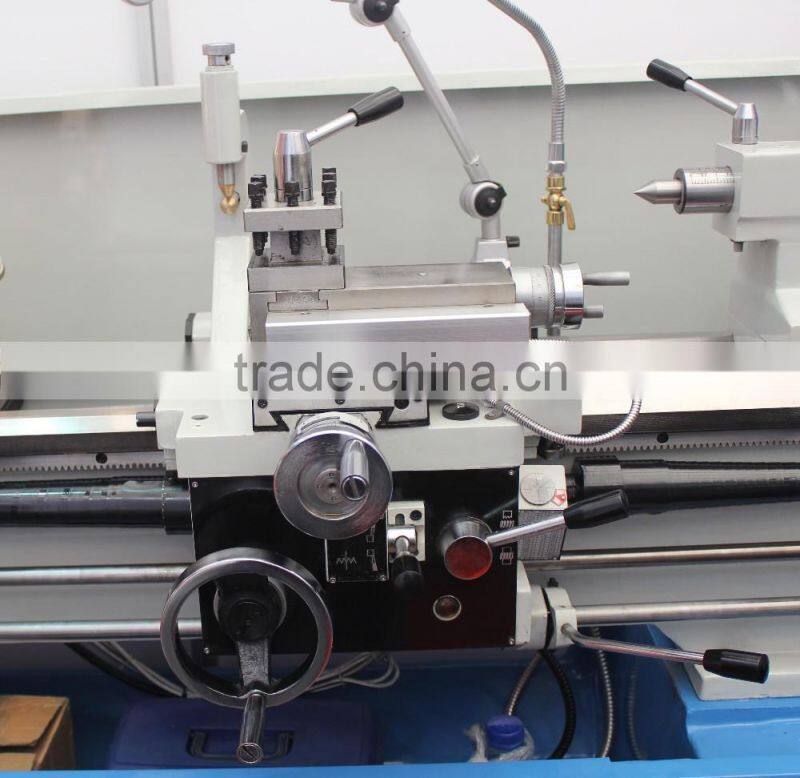

"356mm swing" Engine Lathe Machine

Product Description



Feature:

  • Precision ground and supersonic frequency hardened bed ways.
  • The lathe machine spindle is supported with precision roller bearing;
  • Headstock gears are made of high quality steel, ground and hardened;
  • Removable gap is provided for larger diameter work;

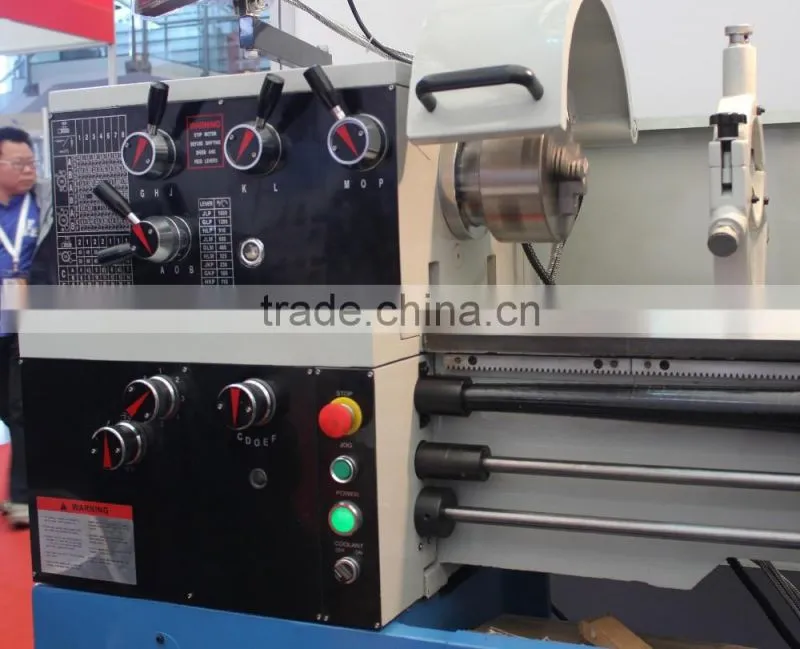

  • Easy operating gear box has various feeds and thread cutting functionCompany Information

"356mm swing" Engine Lathe Machine "356mm swing" Engine Lathe Machine "356mm swing" Engine Lathe Machine

Technical Parameter:

Specification

Unit

T-

1236A

T-1340A

T-1440A

T-1340B

T-

1440B

T-

1440W

Capacity

Center height

mm

150

165

178

150

178

178

Max.swing over bed

mm

300

330

356

300

356

356

Max.swing over cross slide

mm

180

198

224

198

220

210

Max.swing in gap

mm

430

450

476

476

506

508

Distance between centers

mm

910

1000

Spindle

Spindle nose



D4

Spindle bore

mm

38

40

Spindle bore taper



M.T.#5

Spindle speed

rpm

65-1810

(8steps)

70-2000

(8 steps)

45-1800

(16steps)

40-1800

(12steps)

Feed

Longitudinal feed range

mm/rev

0.079-1.291

0.078-1.044

0.067-1.019

0.043-0.653

Cross feed range

mm/rev

0.017-0.276

0.22-0.298

0.018-0.275

0.015-0.220

Threads

Metric threads

mm

0.4-7

0.45-10

0.45-10

0.4-7

Inch threads

T.P.I

4-60

21/4-40

31/2-80

4-112

Tailstock

Tailstock bore taper



M.T.#3

Other

Main motor

kw

1.5

1.5/2.4

Net weight/

Gross weight

kg

540/590

560/600

580/620

495/595

750/880

1200/1300

Packing dimension

mm

1680x750x1420

1940x760x1520



Standard Accessories:

  • 3 jaw chuck
  • 4 jaw chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Oil gun
  • Dead center
  • Changing gears
  • Reduction sleeve
  • Chasing dial indicator
  • Working light
  • Operatoe manual



Optional accessories:

  • Coolant system
  • Foot brake system
  • Digital readout system (DRO)
  • Quick change tool post & holders
  • Taper turning attachment

"356mm swing" Engine Lathe Machine "356mm swing" Engine Lathe Machine

"356mm swing" Engine Lathe Machine "356mm swing" Engine Lathe Machine



Order Machines(OEM) 220V/60HZ and Inch-type Screw
