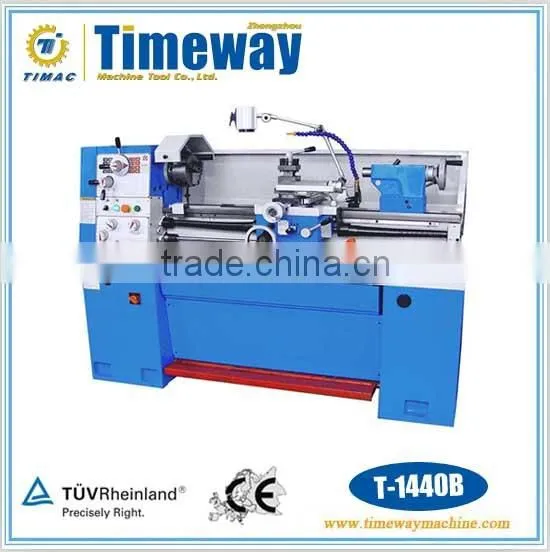

Torno / Chinese Metal Lathe Machine With Low Price (T-1440B)

Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) thumbnail-1
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) thumbnail-2
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) thumbnail-3
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) thumbnail-4
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) thumbnail-5
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) thumbnail-6
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) photo-1
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) photo-2
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) photo-3
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) photo-4
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) photo-5
Torno / Chinese Metal Lathe Machine With Low Price (T-1440B) photo-6
US$ 3,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 356mm
Brand Name TIMAC
Model Number T-1440B
Voltage As customer's request
Power(W) 1.5kw/2.4kw(main motor)
Dimension(L*W*H) 1940x760x1520mm
Weight 750kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

"356mm swing " Chinese Lathe Machine with specification

(T-1440B)



torno / Chinese Metal Lathe Machine with Low Price (T-1440B)



Product Description



Standard accessories:

3 jaw chuck , Changing gears, Dead center, Reduction sleeve, Oil gun, Coolant system, Working light

 4 jaw chuck, Face plate, Steady rest, Follow rest, Chasing dial indicator, Liver center



Optional accessories:

 Digital readout system (DRO), Quick change tool post&holders, Taper turning attachment



Parameter:

Specification

Unit

T-1440B

Max. swing over bed

mm

356

Max. swing over cross slide

mm

220

Max. swing in gap

mm

506

Distance between centers

mm

1000

Spindle nose



D4

Spindle bore

mm

38

Spindle bore taper



M.T.#5

Spindle speed

rpm

45-1800(16 steps)

Longitudinal feed range

mm/rev

0.043-0.653

Cross feed range

mm/rev

0.015-0.220

Metric threads

mm

0.4-7

Inch threads

TPI

4-112

Tailstock bore taper



M.T.#3

Main motor

kw

1.5/2.4

Net weight/Gross weight

kg

750/880

Packing dimension(L×W×H)

mm

1940×760×1520

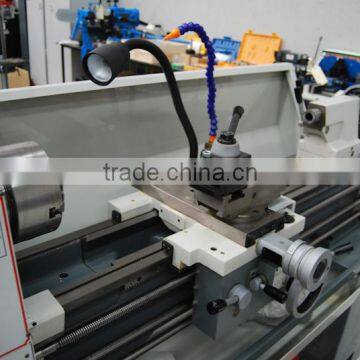

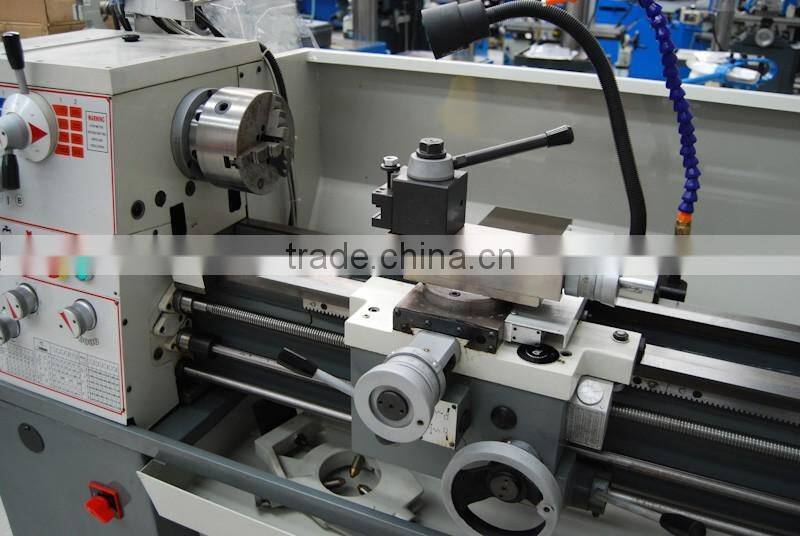

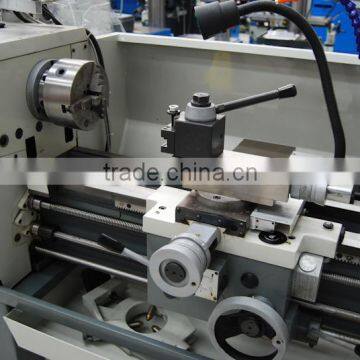

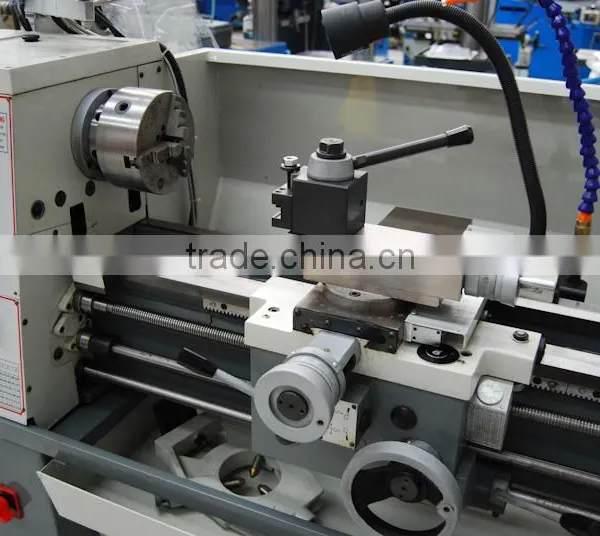

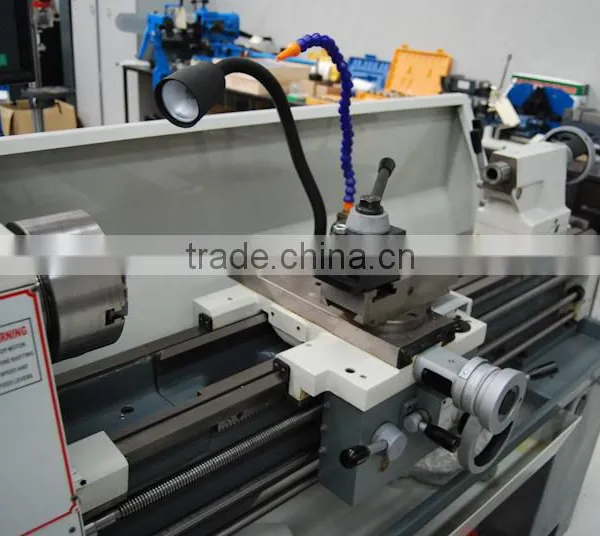

Machine Tool View

torno / Chinese Metal Lathe Machine with Low Price (T-1440B) torno / Chinese Metal Lathe Machine with Low Price (T-1440B)

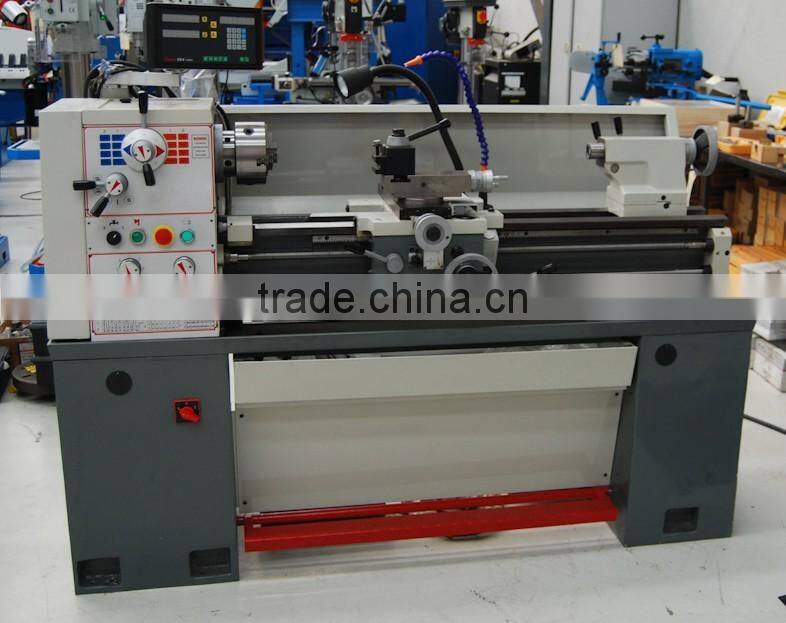

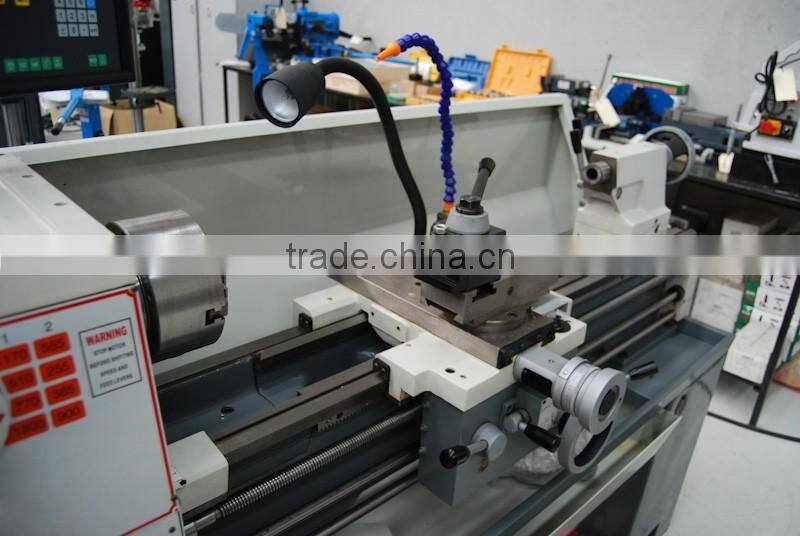

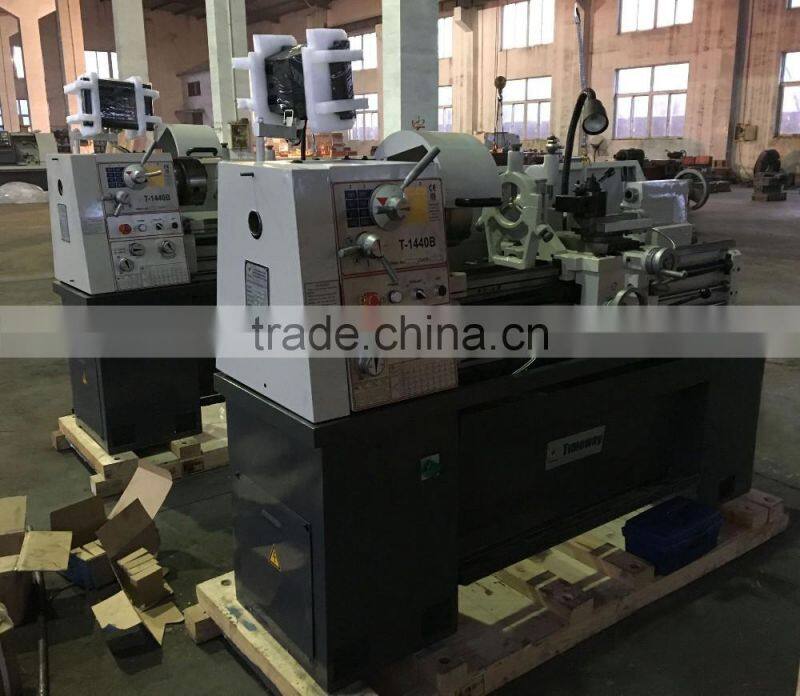

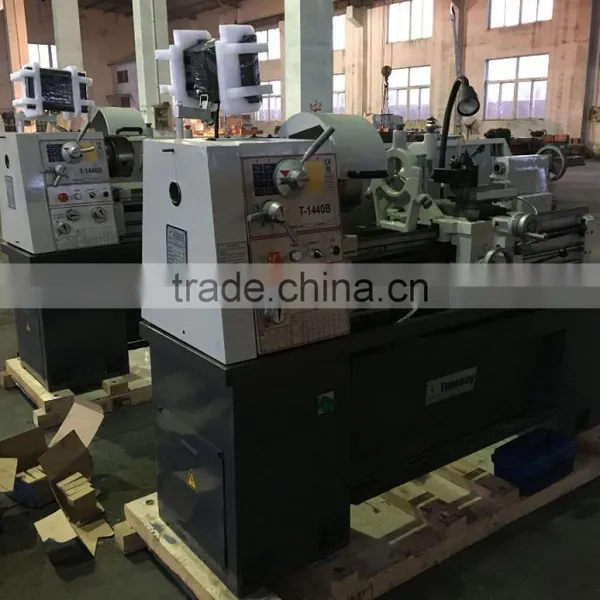

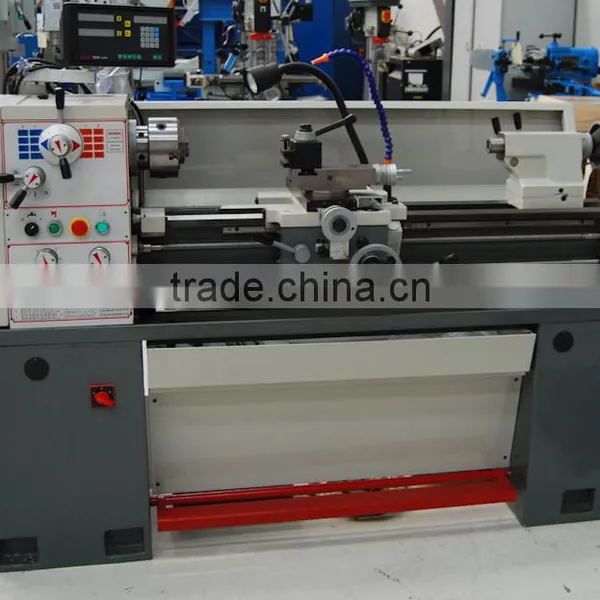

Two Customized Lathe with Inch Screw and DRO and Quick Change Tool-post for American Customer

torno / Chinese Metal Lathe Machine with Low Price (T-1440B) torno / Chinese Metal Lathe Machine with Low Price (T-1440B)



Our Services

torno / Chinese Metal Lathe Machine with Low Price (T-1440B)

Buyer Feedback

torno / Chinese Metal Lathe Machine with Low Price (T-1440B)torno / Chinese Metal Lathe Machine with Low Price (T-1440B)

Company Information





Certifications



torno / Chinese Metal Lathe Machine with Low Price (T-1440B)

Customer Visited



Exhibitions



torno / Chinese Metal Lathe Machine with Low Price (T-1440B)

Packaging & Shipping



torno / Chinese Metal Lathe Machine with Low Price (T-1440B)
